Product Model

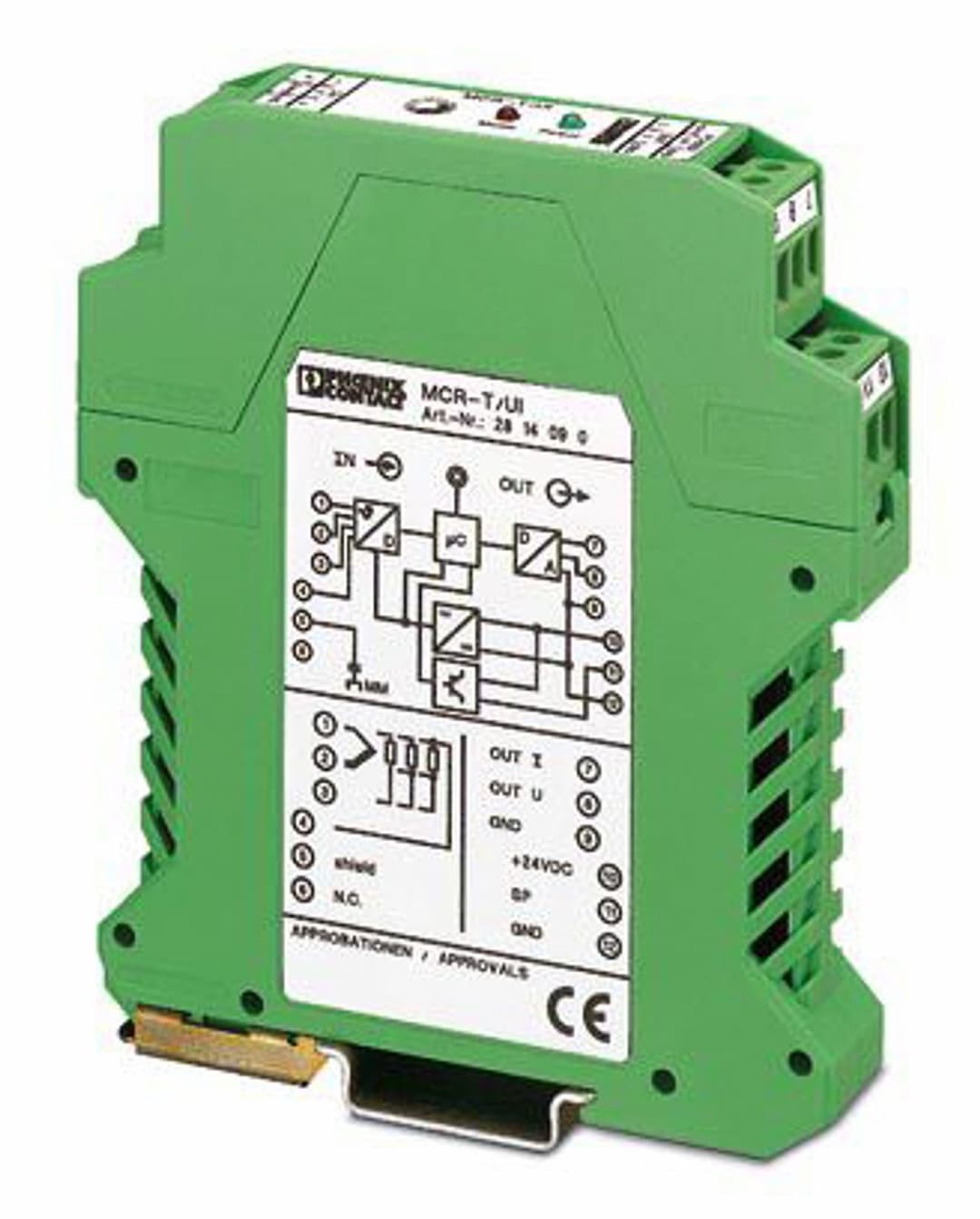

MCR-T-UI
Selling Points
- 1Customize settings via software or operator interface for specific applications.
- 2Operate in Ex ic IIC zones, ensuring safe use in hazardous environments.
- 3Supports RTDs, thermocouples, voltage signals, remote resistance-type sensors, and potentiometers.
- 4Compatible with 19.2 to 253 V AC/DC, offering flexibility in installation.
- 5Provides linearized analog current and voltage outputs with 24-bit resolution for precise measurements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Temperature transmitter |
Typical cold point errors | 1.5 K | Cold point error, max. | ≤ 3 K |
Test voltage input/output | 1 kV AC (50 Hz, 60 s) | Test voltage input/power supply | 1 kV AC (50 Hz, 60 s) |
Maximum temperature coefficient | 0.01 %/K | Temperature coefficient, typical | 0.005 %/K |
Maximum transmission error | ≤ 0.1 % (of maximum range, ±6 mV or ±12 µA at output) | Supply voltage range | 18 V DC ... 30 V DC |
Typical current consumption | 40 mA | Max. current consumption | ≤ 60 mA |
Input signal | Temperature | Configurable/programmable | Yes, preconfigured |
Sensor types (RTD) that can be used | Pt, Ni, Cu sensors | Sensor types that can be used (TC) | U, T, L, J, E, K, N, S, R, B, C, W, HK |
Temperature measuring range | Depending on sensor type used | Temperature measuring range | min. 20 K (RTD, excluding CU10 - 100 K)
min. 50 K (TC, except type B 100 K) |
Sensor type: | -200 °C ... 850 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-70 °C ... 500 °C (freely adjustable)
-50 °C ... 160 °C (freely adjustable)
-50 °C ... 200 °C (freely adjustable)
-50 °C ... 180 °C (freely adjustable)
-55 °C ... 150 °C (freely adjustable)
-200 °C ... 600 °C (freely adjustable)
-200 °C ... 400 °C (freely adjustable)
-200 °C ... 900 °C (freely adjustable)
-210 °C ... 1200 °C (freely adjustable)
-226 °C ... 1000 °C (freely adjustable)
-200 °C ... 1372 °C (freely adjustable)
-200 °C ... 1300 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
-50 °C ... 1760 °C (freely adjustable)
500 °C ... 1820 °C (freely adjustable)
-18 °C ... 2316 °C (freely adjustable)
-18 °C ... 2316 °C (freely adjustable)
-200 °C ... 800 °C (freely adjustable)
-200 °C ... 850 °C (freely adjustable)
-200 °C ... 850 °C (freely adjustable)
-200 °C ... 850 °C (freely adjustable)
-200 °C ... 850 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable)
-60 °C ... 180 °C (freely adjustable) | Sensor input current | 250 µA (Resistance thermometer) |
Linear resistance measuring range | 0 Ω ... 8000 Ω (freely adjustable, min. measuring range 100 Ω) | Linear mV signal range | -20 mV ... 2400 mV (freely adjustable, minimum measuring range span of 10 mV) |
Connection technology | 2-, 3-, 4-conductor | Connection method | Pluggable screw connection |
Protective circuit | Transient protection
Surge protection 30 V DC | Output description | Can carry a load of 100 mA, switches supply voltage (not protected against short-circuit); locked in case of order-specific configuration, otherwise freely programmable through MCR/PI-CONF-WIN |
Continuous load current | 100 mA | Output voltage range | 18 V DC ... 30 V DC (switches supply voltage, not short-circuit resistant) |
Configurable/programmable | Yes, preconfigured | Voltage output signal | 0 V ... 10 V
0 V ... 5 V
-5 V ... 5 V
-10 V ... 10 V
10 V ... 0 V
5 V ... 0 V
10 V ... -10 V
5 V ... -5 V
1 V ... 5 V |
Max. voltage output signal | ± 12 V | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA
20 mA ... 0 mA
20 mA ... 4 mA |
Max. current output signal | 24 mA | Output voltage range with wire break | -12 V ... 12 V |
Output voltage range with overrange/underrange | -12 V ... 12 V | Output current range with wire break | 0 A ... 24 mA |
Output current range with overrange/underrange | 0 A ... 24 mA | Load/output load voltage output | ≥ 10 kΩ |
Load/output load current output | ≤ 500 Ω | Ripple | < 20 mV |
Protective circuit | Transient protection | D/A converter resolution | ± 12 bit |
Connection method | Pluggable screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Width | 17.5 mm | Height | 99 mm |
Depth | 114.5 mm | Color | green (RAL 6021) |
Housing material | Polyamide PA non-reinforced | Ambient temperature (operation) | -20 °C ... 65 °C |
Certificate | CE-compliant | Identification | Class I, Div. 2, Groups A, B, C, D or Non-Hazardous Locations |
Identification | DNV GL | Mounting position | any |
Specifications may be subject to change without notice
