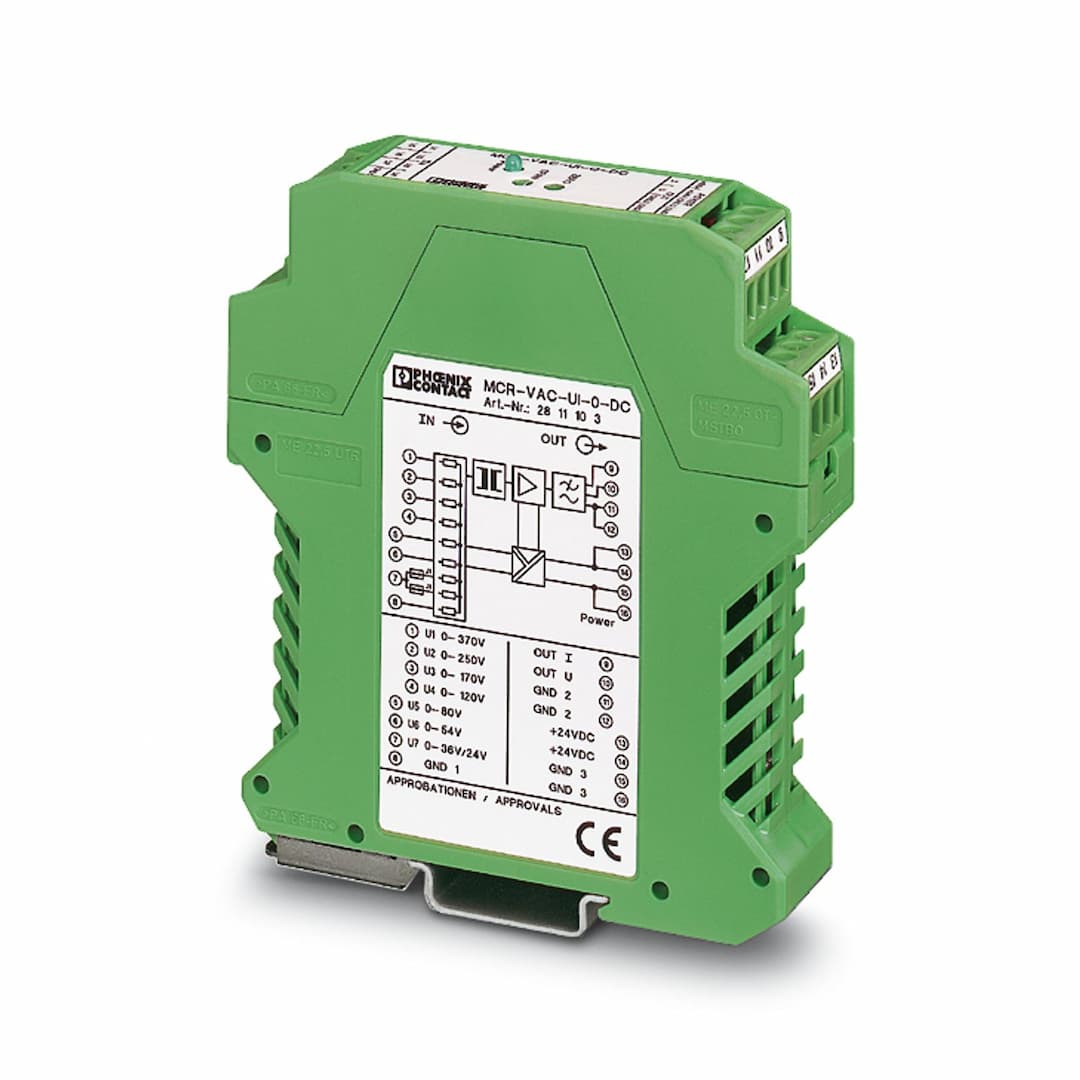

Phoenix Contact MCR-VAC-UI-O-DC

Selling Points

  • 1Accurate AC Voltage Measurement: Measures AC voltages from 0..20 V AC to 0..440 V AC with high precision.
  • 2Adjustable Voltage Ranges: Offers multiple input voltage ranges for versatile application needs.
  • 3Bidirectional Output Signals: Provides both 0..10 V and 0..20 mA output signals for flexibility.
  • 4Robust EMC Compliance: Meets Class A EMC standards, ensuring reliable operation in industrial environments.
  • 5Tool-Free Parameterization: Allows for easy configuration of measured values without the need for tools.
Product Details
MCR-VAC-UI-O-DC
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Voltage transducer
Article revision
11
Overvoltage category
III
Pollution degree
2
Alignment span
± 20 %
Alignment zero
± 20 %
Rated insulation voltage
300 V DC
Frequency measuring range
45 Hz ... 400 Hz
Maximum power dissipation for nominal condition
0.8 W
Test voltage output/power supply
1 kV (50 Hz, 1 min.)
Test voltage input/output
3.3 kV (50 Hz, 1 min.)
Test voltage input/power supply
3.3 kV (50 Hz, 1 min.)
Step response (10-90%)
250 ms
Temperature coefficient, typical
0.02 %/K (50/60 Hz)
Maximum transmission error
< 1.5 % (of final value)
Supply voltage range
18.5 V DC ... 30.2 V DC
Max. current consumption
< 45 mA
Description of the input
0 V - 370 V input
Configurable/programmable
Yes
Input voltage range
0 V ... 370 V AC
Maximum input voltage
440 V (ungrounded) 250 V (to earth)
Input resistance of voltage input
370 kΩ
Impulse form
AC voltage
Description of the input
0 V - 250 V input
Input voltage range
0 V ... 250 V AC
Input resistance of voltage input
250 kΩ
Description of the input
0 V - 170 V input
Input voltage range
0 V ... 170 V AC
Input resistance of voltage input
170 kΩ
Description of the input
0 V - 120 V input
Input voltage range
0 V ... 120 V AC
Input resistance of voltage input
120 kΩ
Description of the input
0 V - 80 V input
Input voltage range
0 V ... 80 V AC
Input resistance of voltage input
80 kΩ
Description of the input
0 V - 54 V input
Input voltage range
0 V ... 54 V AC
Input resistance of voltage input
54 kΩ
Description of the input
0 V - 36 V input
Input voltage range
0 V ... 36 V AC
Input resistance of voltage input
36 kΩ
Description of the input
0 V - 24 V input
Input voltage range
0 V ... 24 V AC
Input resistance of voltage input
24 kΩ
Voltage output signal
0 V ... 10 V
Max. voltage output signal
15 V
Load/output load voltage output
> 10 kΩ
Ripple
< 50 mV
Current output signal
0 mA ... 20 mA 4 mA ... 20 mA
Max. current output signal
30 mA
Load/output load current output
< 500 Ω
Ripple
< 50 mV
Connection method
Pluggable screw connection
Connection technology
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 14
Width
22.5 mm
Height
99 mm
Depth
114.5 mm
Color
green (RAL 6021)
Housing material
Polyamide PA non-reinforced
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C (non-condensing)
Altitude
< 2000 m
Certificate
CE-compliant
Identification
cULus
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Noise emission
EN 61000-6-4
Mounting type
DIN rail mounting

Specifications may be subject to change without notice
