Product Model

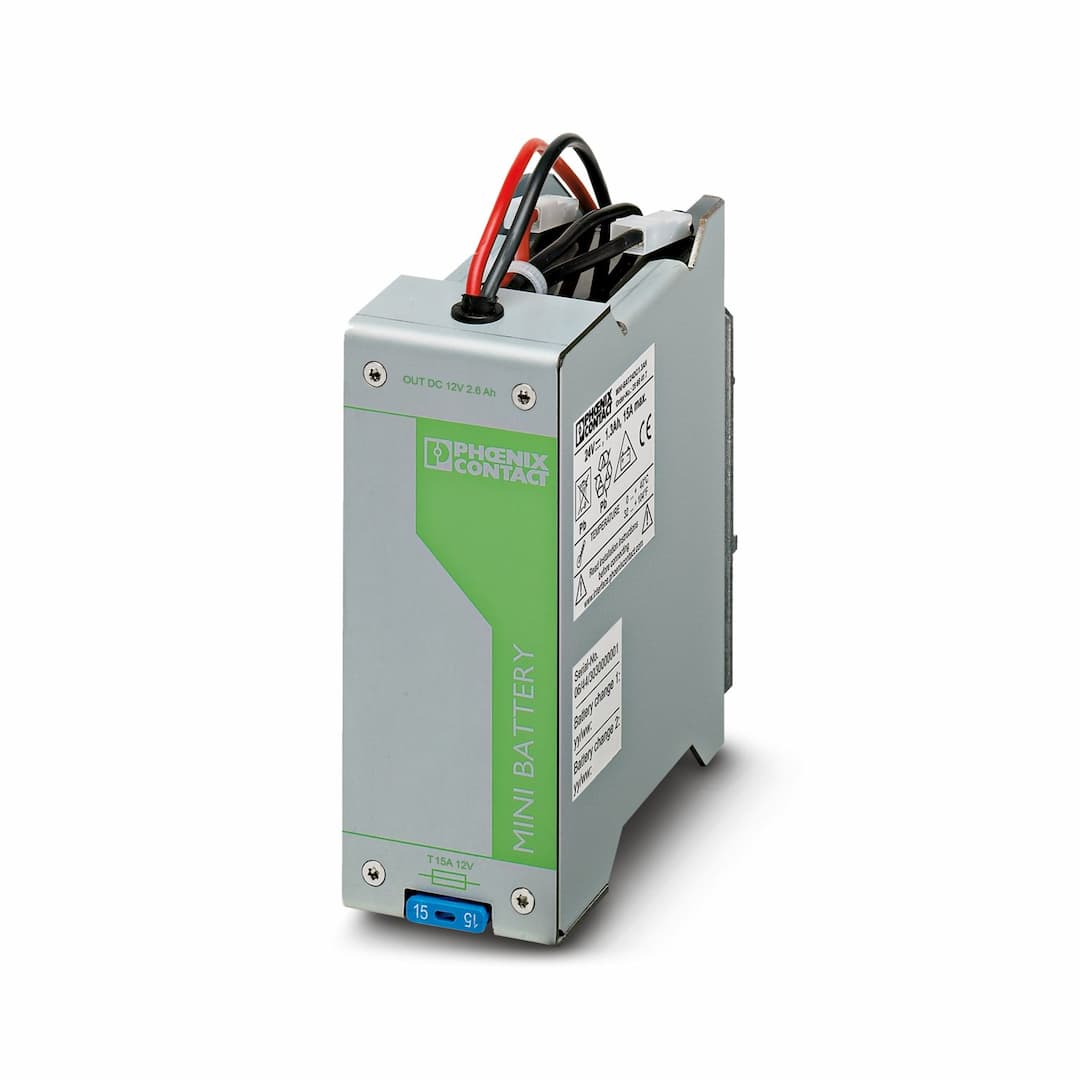

MINI-BAT/12DC/2.6AH
Selling Points
- 1Lead AGM Technology: Ensures maximum buffer times and reliable power storage.
- 212V DC, 2.6Ah Capacity: Provides consistent and efficient power output.
- 315A Output Current: Supports high-demand applications with a robust output.
- 4UL and EAC Approvals: Meets stringent safety standards for hazardous locations.
- 5Compact Design (52mm x 130mm x 110mm): Ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”. | Input voltage | 12 V DC |
Buffer period | 120 min (1 A)
20 min (4 A) | Current consumption | 0.72 A (charging process) |
Nominal output voltage | 12 V DC | Output current I | 15 A |
Output fuse | 1x 15 A | Connection in parallel | 5 |
Connection in series | no | Nominal output voltage | 12 V DC |
Nominal output current (I | 15 A | End-of-charge voltage | 13.8 V |
Charging current | 0.72 A | Nominal capacity | 2.4 Ah |
Battery module service life | 6 Years (20 °C) | Latest startup (battery only) - range | 6 Months (0 °C ... 20 °C)
6 Months (20 °C ... 30 °C)
3 Months (30 °C ... 40 °C) |
Battery technology | VRLA-AGM | Memory medium | Lead rechargeable battery module |
Accumulator type | BB Battery BP1.2-12FR | Number of cells | 1 |
Size designation | Block | Battery pack | yes |
IQ technology | no | Suitable for fast charging | yes |
Product type | Battery module | Product family | Battery module |
Application | for MINI DC-UPS | Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. |
IQ technology | no | Article revision | 04 |
Protection class | III | Width | 52 mm |
Height | 130 mm | Depth | 110 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 30 mm / 30 mm |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 40 °C |
Ambient temperature (storage/transport) | 0 °C ... 40 °C | Max. permissible relative humidity (operation) | 95 % |
Suited for EX-applications | no |
Specifications may be subject to change without notice
