Product Model

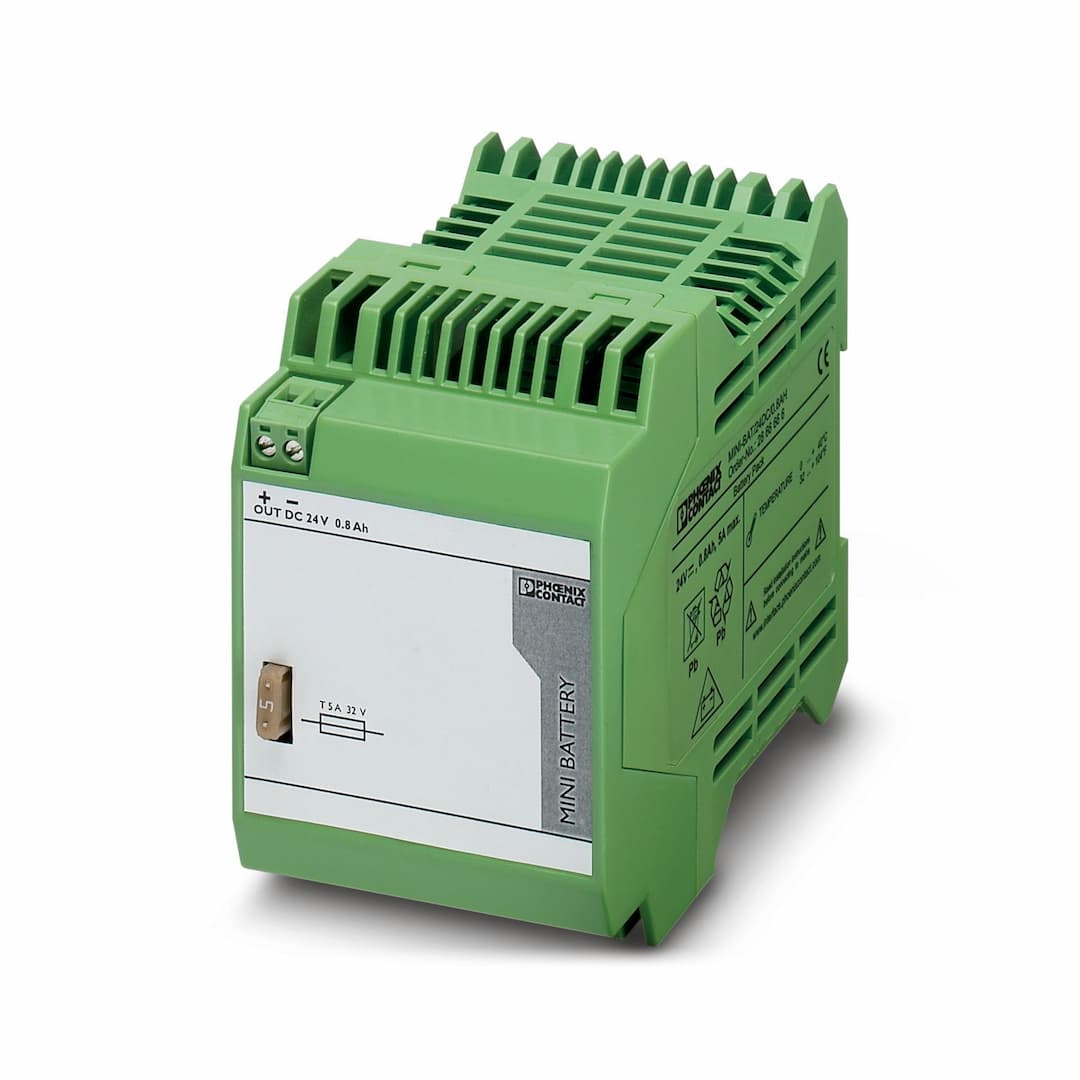

MINI-BAT/24DC/0.8AH
Selling Points
- 1Provides up to 20 minutes of buffer time at 1A and 7 minutes at 2A.
- 2Measures 67.5mm wide, 99mm high, and 107mm deep.
- 3Offers degree of protection IP20 and protection class III.
- 4Must be disposed of in accordance with national regulations or returned to Phoenix Contact.
- 5Suitable for DC UPS systems and other applications requiring a reliable 24V DC, 0.8Ah battery module.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”. | Input voltage | 24 V DC |
Buffer period | 20 min (1 A)
7 min (2 A) | Nominal output voltage | 24 V DC |
Output current I | 5 A | Output fuse | 5 A |
Connection in parallel | 5 | Connection in series | no |
Nominal output voltage | 24 V DC | Nominal output current (I | 5 A |
End-of-charge voltage | 27.6 V | Charging current | 1 A |
Nominal capacity | 0.8 Ah | Battery module service life | 3 Years (20 °C) |
Latest startup (battery only) - range | 3 Months (0 °C ... 20 °C)
3 Months ... 1 Months (20 °C ... 30 °C)
1 Months (30 °C ... 40 °C) | Battery technology | VRLA-AGM |
Memory medium | Lead rechargeable battery module | Accumulator type | YUASA NP0.8-12
YUCEL Y0.8-12
YUVOLT 0.8-12 |
Number of cells | 1 | Size designation | Block |
Battery pack | yes | IQ technology | no |
Suitable for fast charging | yes | Product type | Battery module |
Product family | Battery module | Application | for MINI DC-UPS |
Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. | IQ technology | no |
Article revision | 04 | Protection class | III |
Width | 67.5 mm | Height | 99 mm |
Depth | 107 mm | Installation distance right/left | 0 mm / 0 mm |
Installation distance top/bottom | 30 mm / 30 mm | Housing material | Plastic |
Type of housing | Polyamide PA, color: green | Degree of protection | IP20 |
Ambient temperature (operation) | 0 °C ... 40 °C | Ambient temperature (storage/transport) | 0 °C ... 40 °C |
Max. permissible relative humidity (operation) | 95 % | Suited for EX-applications | no |
Specifications may be subject to change without notice
