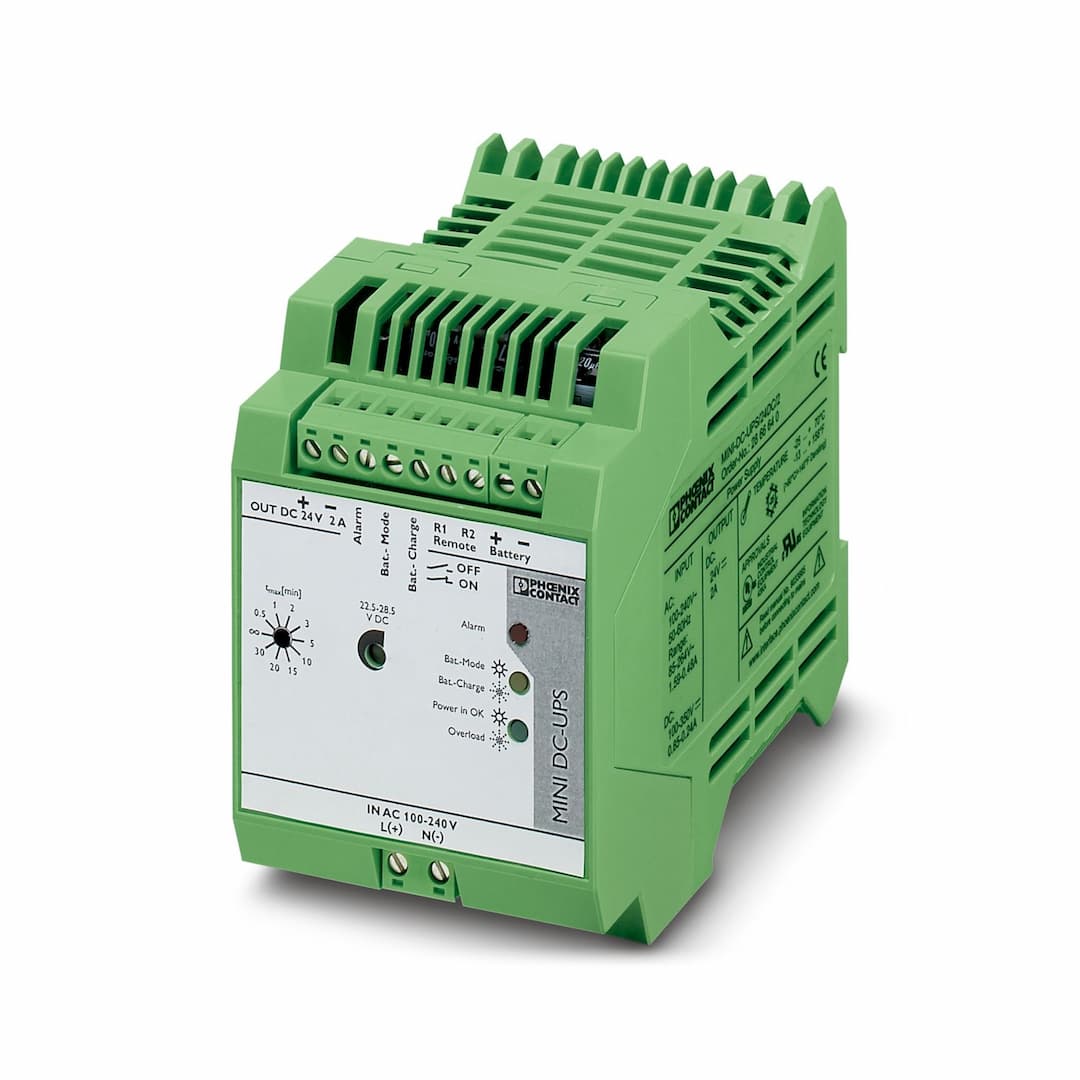

Phoenix Contact MINI-DC-UPS/24DC/2

Selling Points

  • 1Compact design: 67.5 x 99 x 107 mm for space-saving installations.
  • 2High operational reliability: Comprehensive signaling and temperature-dependent battery charging.
  • 3Fast installation: Minimal wiring effort with COMBICON connectors.
  • 4Up to 2 hours of buffer time: Energy storage with lead AGM technology for extended backup.
  • 5Adjustable output voltage: 22.5 V DC to 29.5 V DC, ensuring flexibility in various applications.
Product Details
MINI-DC-UPS/24DC/2
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Input voltage
24 V DC
Input voltage range
100 V DC ... 350 V DC
Voltage type of supply voltage
DC
Inrush current
< 34 A (< 1.1 A
Inrush current integral (I
< 1.1 A
Mains buffering time
see diagram
Buffer period
20 min (2 A)
Rotary selector switch
Can be set to: 0.5 min; 1 min; 2 min; 3 min; 5 min; 10 min; 15 min; 20 min; 30 min; permanent
Current consumption
0.6 A 0.85 A (230 V AC) 1.1 A 1.5 A (120 V AC)
Protective circuit
Varistor
Power factor (cos phi)
approx. 0.5
Typical response time
100 ms
Input fuse
3.15 A (slow-blow, internal)
Permissible backup fuse
B6 B10 B16
Recommended breaker for input protection
6 A ... 16 A (Characteristics B, C, D, K)
Nominal input voltage range
100 V AC ... 240 V AC
Input voltage range
85 V AC ... 264 V AC
Voltage type of supply voltage
AC
Efficiency
> 83 %
Nominal output voltage
24 V DC (AC input voltage available: 22.5 to 29.5 V DC, AC input voltage not available: 27.9 to 19.2 V DC)
Setting range of the output voltage (U
22.5 V DC ... 29.5 V DC (normal mode; in the buffer mode, dependent on a battery voltage of 27.9 V DC ... 19.2 V DC)
Nominal output current (I
2 A
Output current limit
max. 3 A
Bridging time
1200 s
Derating
60 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance
35 V DC
Protection against overvoltage at the output (OVP)
< 35 V DC
Max. capacitive load
unlimited
Control deviation
< 1 % (change in load, static 10 % ... 90 %)
Residual ripple
< 50 mV
Output power
48 W
Peak switching voltages nominal load
< 100 mV
Maximum no-load power dissipation
3.8 W
Power loss nominal load max.
15 W
Power dissipation battery operation
2.1 W
Rise time
< 100 ms
Connection in parallel
yes
Connection in series
no
Nominal output voltage
24 V DC
Output voltage range
22.5 V DC ... 29.5 V DC
Nominal output current (I
2 A
Nominal output voltage
24 V DC
Output voltage range
19.2 V DC ... 27.6 V DC (U
Nominal output current (I
2 A
Output description
Power Good
Maximum switching voltage
≤ 24 V
Output voltage
+ 24 V
Continuous load current
≤ 20 mA
Output description
Relay output
Maximum switching voltage
≤ 24 V
Output voltage
24 V
Continuous load current
≤ 200 mA
Output description
Relay output
Maximum switching voltage
≤ 24 V
Output voltage
24 V
Continuous load current
≤ 200 mA
Output description
Relay output
Maximum switching voltage
≤ 24 V
Output voltage
24 V
Continuous load current
≤ 200 mA
Charging current
1 A
Nominal capacity range
0.8 Ah ... 1.3 Ah
Memory medium
external, battery 0.8 Ah / 1.3 Ah
IQ technology
no
Network management
No
Connection method
Pluggable COMBICON screw connections
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
12
Stripping length
8 mm
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Connection method
Pluggable COMBICON screw connections
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
12
Stripping length
8 mm
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
12
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Types of signaling
LED
Status display
LED "Power Good", green
Note on status display
Buffer module is loaded: LED ON
Status display
LED (red)
Note on status display
Malfunction/alarm: LED permanently lit
Status display
LED flashing yellow
Note on status display
Battery charge/battery is being charged: LED flashing
Status display
LED (yellow)
Note on status display
Battery mode/buffer mode: LED permanently lit
Insulation voltage input/output
4 kV (type test) 2 kV (routine test)
Product type
DC UPS with integrated power supply
Product family
MINI UPS – UPS with integrated power supply
IQ technology
no
MTBF (IEC 61709, SN 29500)
> 753000 h (40 °C)
Article revision
06
Protection class
II (in closed control cabinet)
Degree of pollution
2
Width
67.5 mm
Height
99 mm
Depth
107 mm
Installation distance right/left
0 mm / 0 mm
Installation distance top/bottom
30 mm / 30 mm
Mounting type
DIN rail mounting
Assembly note
alignable: horizontally 0 mm, vertically 50 mm
Mounting position
horizontal DIN rail NS 35, EN 60715
Housing material
Plastic
Type of housing
Polyamide PA, color: green
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Climatic class
3K3 (in acc. with EN 60721)
Max. permissible relative humidity (operation)
95 % (at 25 °C, non-condensing)
Shock
18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)
< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6) 15 Hz ... 150 Hz, 2.3g, 90 min.
Rail applications
EN 50121-4
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations
EN 50178/VDE 0160 (PELV)
Standard - Electrical safety
EN 60950-1/VDE 0805 (SELV) EN 61558-2-17
Standard – Protection against shock currents, basic requirements for protective separation in electrical equipment
EN 50178
Standard – Safety extra-low voltage
EN 60950-1 (SELV) EN 60204 (PELV)
Standard - Safe isolation
DIN VDE 0100-410
UL approvals
UL Listed UL 508 UL/C-UL Recognized UL 60950-1 UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Low Voltage Directive
Conformance with Low Voltage Directive 2014/35/EC
EMC requirements for noise emission
EN 61000-6-3 EN 61000-6-4
EMC requirements for noise immunity
EN 61000-6-1 EN 61000-6-2
Noise emission
EN 55011 (EN 55022)
Standards/regulations
EN 61000-4-2
Housing
Level 3
Contact discharge
6 kV
Discharge in air
8 kV
Comments
Criterion B
Standards/regulations
EN 61000-4-3
Frequency range
80 MHz ... 2 GHz
Test field strength
10 V/m
Comments
Criterion A
Standards/regulations
EN 61000-4-4
Input
4 kV (level 4 - asymmetrical: conductor to ground)
Output
2 kV (level 3 - asymmetrical: conductor to ground)
Signal
1 kV (level 2 - asymmetrical: conductor to ground)
Comments
Criterion B
Standards/regulations
EN 61000-4-5
Input
4 kV (level 4 - asymmetrical: conductor to ground) 2 kV (level 4 - symmetrical: conductor to conductor)
Output
2 kV (Level 3 - asymmetrical) 1 kV (Level 3 - symmetrical)
Signal
2 kV (Level 3 - asymmetrical) 1 kV (Level 3 - symmetrical)
Comments
Criterion B
Standards/regulations
EN 61000-4-6
I/O/S
Level 3
Frequency range
10 kHz ... 80 MHz
Comments
Criterion A
Voltage
10 V
Standards/regulations
EN 61000-4-11
Standards/regulations
EN 61000-6-3
Radio interference voltage in acc. with EN 55011
EN 55011 (EN 55022) Class B, area of application: Industry and residential
Emitted radio interference in acc. with EN 55011
EN 55011 (EN 55022) Class B, area of application: Industry and residential
