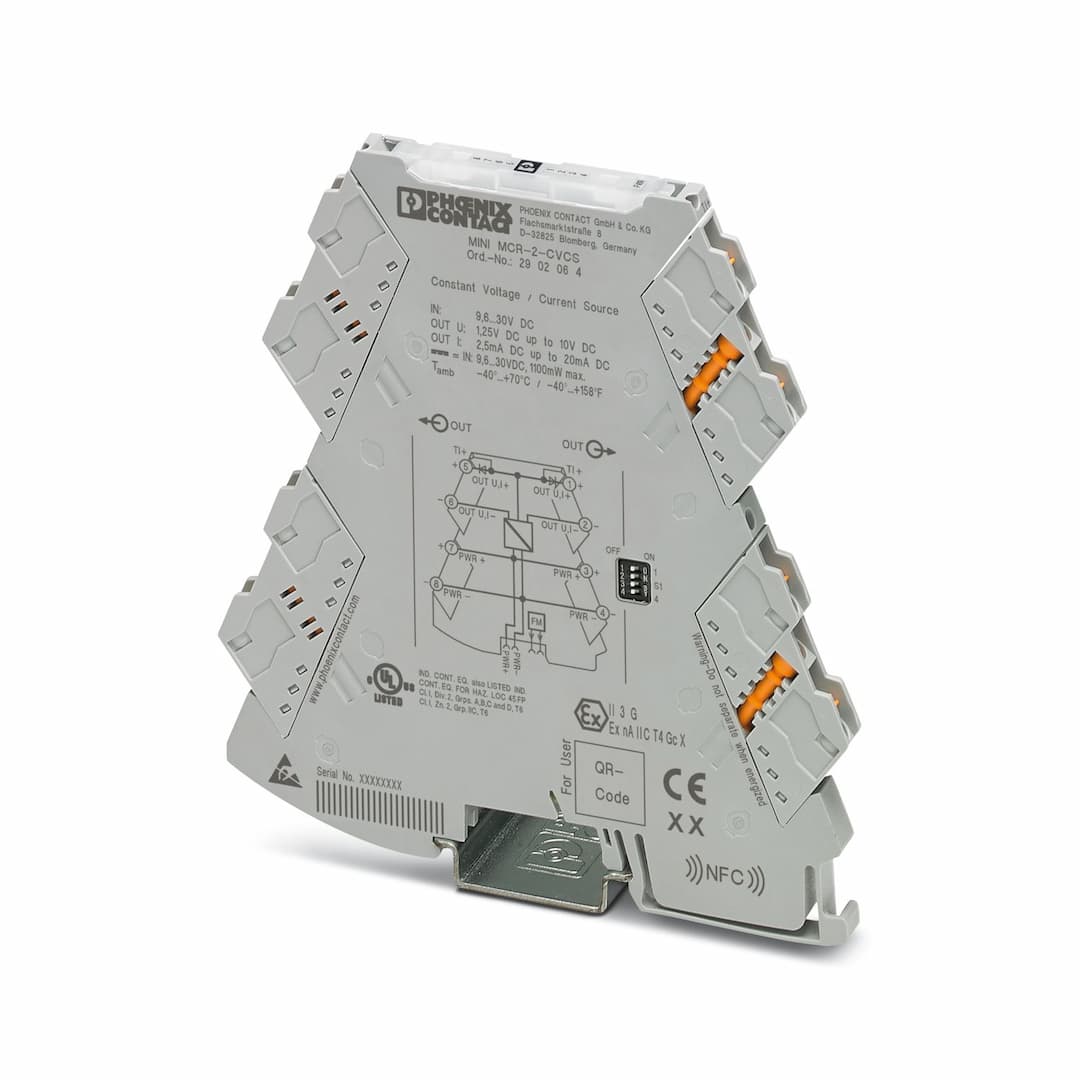

Phoenix Contact MINI MCR-2-CVCS

Selling Points

  • 1High-Precision Output: Set output voltages from 1.25 V to 10 V DC and currents from 2.5 mA to 20 mA.
  • 2Configurable via DIP Switches: Easily adjust settings using DIP switches for precise control.
  • 3Fault Monitoring and NFC: Supports fault monitoring and NFC communication for enhanced reliability.
  • 4Wide Input Voltage Range: Compatible with input voltages from 9.6 V DC to 30 V DC.
  • 5Compact Design: Measures 6.2 mm wide, 109.81 mm high, and 119.2 mm deep for space-efficient use.
Product Details
MINI MCR-2-CVCS
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Constant voltage source
Product family
MINI Analog Pro
Configuration
DIP switches
Article revision
05
Overvoltage category
II
Pollution degree
2
Configuration
DIP switches
Maximum temperature coefficient
< 0.01 %/K
Maximum transmission error
≤ 0.1 % (of final value)
Rated insulation voltage
300 V
Test voltage
3 kV AC (50 Hz, 60 s)
Insulation
Reinforced insulation according to IEC/EN 61010-1
Supply voltage range
9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Typical current consumption
< 42 mA (24 V DC) < 85 mA (12 V DC)
Power consumption
< 1.1 W (9.6 V DC)
Voltage input signal
9.6 V DC ... 30 V DC
Configurable/programmable
Yes
Max. voltage output signal
10 V DC 8.75 V DC 7.5 V DC 6.25 V DC 5 V DC 3.75 V DC 2.5 V DC 1.25 V DC
Max. current output signal
20 mA 17.5 mA 15 mA 12.5 mA 10 mA 7.5 mA 5 mA 2.5 mA
Short-circuit current
> 32 mA
Output voltage with wire break
13.5 V
Output current
≤ 30 mA
Load/output load current output
≤ 600 Ω (20 mA)
Ripple
< 20 mV
Ripple current
40 µA
Connection method
Screw connection
Stripping length
10 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 1.5 mm² (with ferrule) 0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible
0.14 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12 (flexible)
Tightening torque
0.5 Nm ... 0.6 Nm
Ex installation (EPL)
Gc Div. 2
Status display
Green LED (supply voltage)
Width
6.2 mm
Height
109.81 mm
Depth
119.2 mm
Color
gray (RAL 7042)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20 (not assessed by UL)
Ambient temperature (operation)
-40 °C ... 70 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Identification
 II 3 G Ex ec IIC T4 Gc
Certificate
BVS 20 ATEX E 014X
Identification
 II 3 G Ex ec IIC T4 Gc
Certificate
PxCIF21UKEX2902004X
Identification
Ex ec IIC T4 Gc
Certificate
IECEx BVS 20.0010X
Identification
Ex nA IIC T4 Gc
Certificate
NEPSI GYJ20.1320X
Identification
UL 508 Listed Class I, Div. 2, Groups A, B, C, D T6 Class I, Zone 2, Group IIC T6
Certificate
DNV GL TAA000021E Rev. 1
Temperature
B
Humidity
B
Vibration
A
EMC
A
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
GB 3836.1 GB 3836.8
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any

Specifications may be subject to change without notice
