Product Model

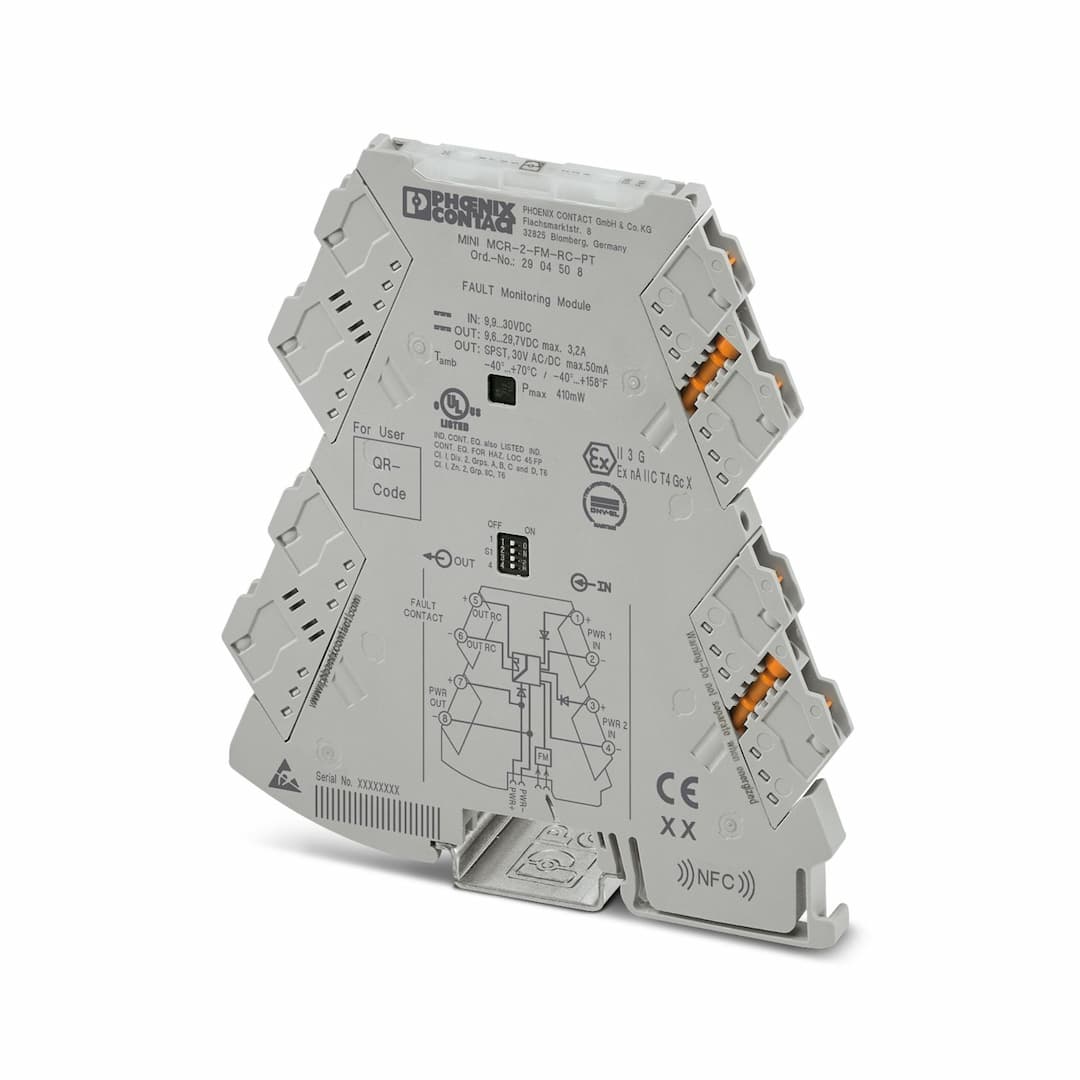

MINI MCR-2-FM-RC-PT
Selling Points
- 1High measurement accuracy and rapid signal processing ensure reliable operations.
- 2Configurable input frequency range for versatile use with various sensors and input devices.
- 3Isolated output signals minimize noise and disturbances, enhancing data integrity.
- 4Compact and robust design certified for industrial environments, ensuring durability in harsh conditions.
- 5Plug-and-play connectivity simplifies integration and maintenance processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Evaluation unit |
Product family | MINI Analog Pro | Configuration | DIP switches |
Article revision | 10 | Overvoltage category | II |
Pollution degree | 2 | Configuration | DIP switches |
Rated insulation voltage | 50 V AC/DC (effective) | Electrical isolation | Basic insulation in accordance with EN 61010 |
Test voltage (Input/output) | 1.5 kV AC (50 Hz, 60 s) | Maximum temperature coefficient | < 0.01 %/K |
Electrical isolation | Input, power supply and output to the switching output | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Max. current consumption | < 16 mA (24 V DC) | Power consumption | < 410 mW (24 V DC) |
Description of the input | Voltage input for redundancy monitoring | Number of inputs | 1 |
Voltage input signal | 9.9 V DC ... 30 V DC | Maximum switching voltage | 30 V DC |
Max. switching current | 50 mA | Number of outputs | 1 |
Voltage output signal | 9.6 V DC ... 29.7 V DC | Max. current output signal | 3.2 A |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 (flexible) | Ex installation (EPL) | Gc
Div. 2 |
Status display | Green LED (supply voltage)
Yellow LED (switching output) | Error indication | Red LED |
Width | 6.2 mm | Height | 109.81 mm |
Depth | 119.2 mm | Color | gray (RAL 7042) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | BVS 20 ATEX E 014X |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | PxCIF21UKEX2902004X |
Identification | Ex ec IIC T4 Gc | Certificate | IECEx BVS 20.0010X |
Identification | Ex nA IIC T4 Gc | Certificate | NEPSI GYJ20.1320X |
Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 | Certificate | DNV GL TAA00002UA |
Identification | 2Ex ec IIC T4 Gc | Certificate | BY/112 02.01 TP012 103.01 00079 |
Temperature | B | Humidity | B |
Vibration | A | EMC | A |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 | Standards/regulations | EN 61000-4-5 |
Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
Electrical isolation | Basic insulation in accordance with EN 61010 | Standards/regulations | GB 3836.1
GB 3836.8 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
