Product Model

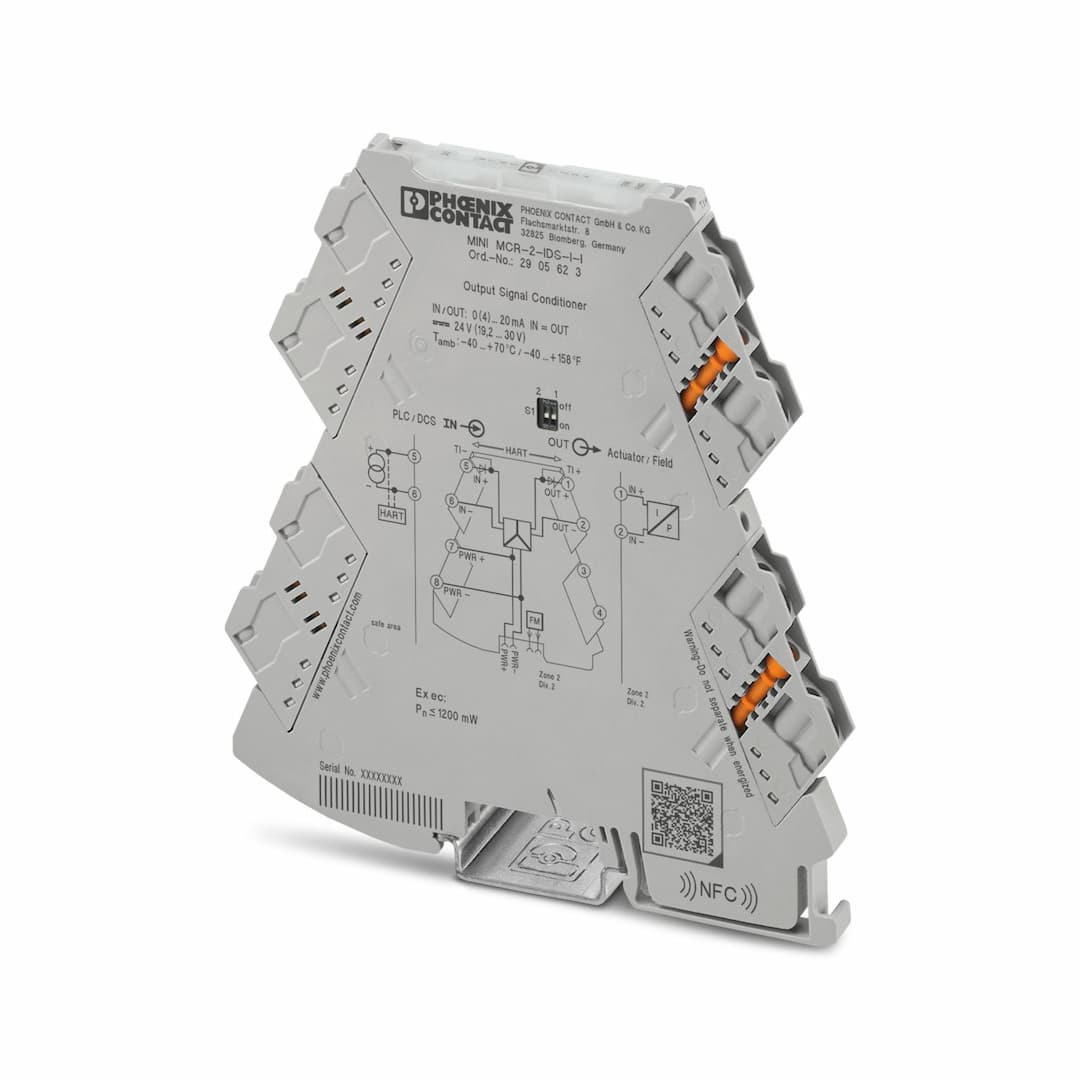

MINI MCR-2-IDS-I-I
Selling Points
- 1Transmits 0/4-20 mA signals with minimal transmission error (≤ 0.1%) and high accuracy.
- 2Provides 3-way electrical isolation between input, output, and supply for enhanced safety and reliability.
- 3Supports bidirectional HART data protocols for advanced communication capabilities.
- 4Operates within a wide ambient temperature range (-20 °C to 60 °C) and humidity levels (5% to 95% non-condensing).
- 5Compact dimensions (6.2 mm wide, 93.1 mm high, 101.2 mm deep) make it easy to integrate into various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Output signal conditioner | Product family | MINI Analog Pro |
Configuration | DIP switches | Article revision | 03 |
Configuration | DIP switches | Signal transmission behavior | In = Out |
Maximum temperature coefficient | 0.01 % | Maximum transmission error | 0.1 % |
Overvoltage category | II (≤ 5000 m) | Pollution degree | 2 (≤ 5000 m) |
Standards/regulations | IEC/EN 61010-1 | Rated insulation voltage | 300 V |
Test voltage | 2.5 kV AC (50 Hz, 60 s) | Insulation | Double/reinforced insulation |
Standards/regulations | IEC/EN 60079-7 | Rated insulation voltage | 251 V |
Nominal supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC |
Power consumption | ≤ 1.2 W | Number of inputs | 1 |
Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA | Input current | ≤ 30 mA |
Voltage drop | < 3.5 V DC (20 mA) | Number of outputs | 1 |
Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA | Load/output load current output | ≤ 700 Ω (20 mA)
≤ 630 Ω (21 mA) |
Output ripple | 20 mV (rms) | Non-load voltage | ≤ 27 V DC |
Short-circuit-proof | yes | Line fault detection | > 10 kΩ (Line break)
< 50 Ω (Short circuit) |
Connection method | Screw connection | Stripping length | 10 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
Tightening torque | 0.5 Nm ... 0.6 Nm | Ex installation (EPL) | Gc
Div. 2 |
Protocols supported | HART-transparent | Status display | Green LED (supply voltage) |
Width | 6.2 mm | Height | 109.81 mm |
Depth | 119.2 mm | Color | gray (RAL 7042) |
Housing material | PBT | Ambient temperature (operation) | -40 °C ... 70 °C (Any mounting position) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (at 25 °C, non-condensing) |
Shock (operation) | 15g (DIN EN 60068-2-27) | Vibration (operation) | 5g (DIN EN 60068-2-6) |
Height range | > 2000 m ... 3000 m | Ambient temperature (operation) | -40 °C ... 63 °C |
Rated insulation voltage | 300 V | Insulation | Double/reinforced insulation |
Height range | > 3000 m ... 4000 m | Ambient temperature (operation) | -40 °C ... 56 °C |
Rated insulation voltage | 300 V | Insulation | Double/reinforced insulation |
Height range | > 4000 m ... 5000 m | Ambient temperature (operation) | -40 °C ... 49 °C |
Rated insulation voltage | 150 V | Insulation | Double/reinforced insulation |
Height range | > 2000 m ... 3000 m | Ambient temperature (operation) | -40 °C ... 63 °C |
Rated insulation voltage | 162 V | Height range | > 3000 m ... 4000 m |
Ambient temperature (operation) | -40 °C ... 56 °C | Rated insulation voltage | 60 V |
Height range | > 4000 m ... 5000 m | Ambient temperature (operation) | -40 °C ... 49 °C |
Rated insulation voltage | 60 V | Certificate | CE-compliant |
Identification | II 3 G Ex ec IIC T4 Gc | Identification | Ex ec IIC T4 Gc |
Identification | II 3 G Ex ec IIC T4 Gc | Electromagnetic compatibility | Tested in accordance with the following standards and regulations: EN 61326-1 For industrial use, NAMUR NE 21 |
Low Voltage Directive | Conformance with Low Voltage Directive | Noise immunity | EN 61000-6-2 |
Noise emission | EN 61000-6-4 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
