Product Model

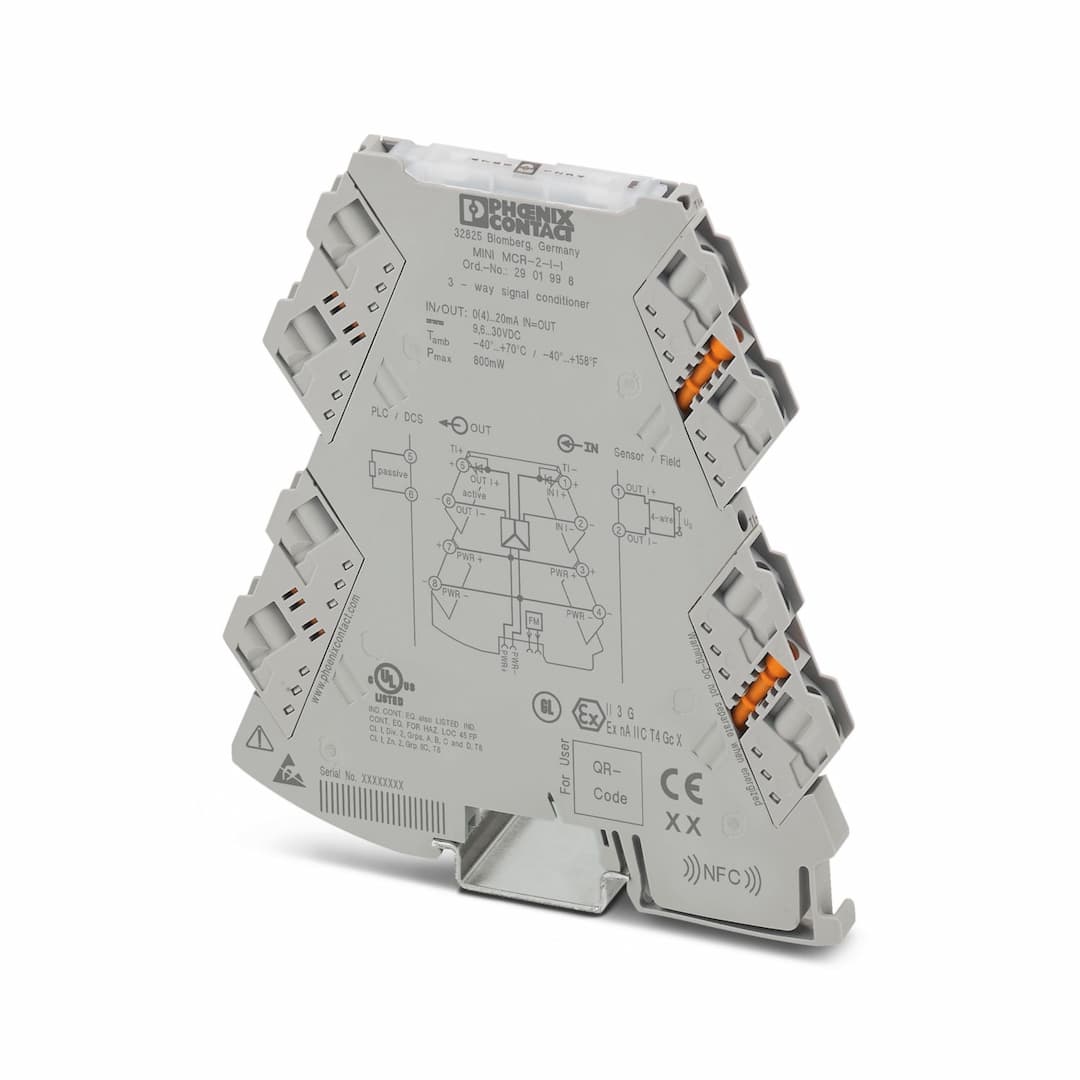

MINI MCR-2-I-I
Selling Points
- 1Provides 2-way isolation with reinforced insulation up to 300 V, ensuring safe and reliable signal processing.
- 2Features plug-in connection technology with push-in connections for easy installation and minimal setup time.
- 3Operates within -40°C to 70°C ambient temperature, making it suitable for various industrial environments.
- 4Offers a maximum transmission error of 0.1% and a step response of approximately 10 ms, ensuring precise signal transmission.
- 5Measures 6.2 mm in width, 110.5 mm in height, and 120.5 mm in depth, making it a space-efficient solution for industrial installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Signal conditioner |
Product family | MINI Analog Pro | No. of channels | 1 |
Type | Signal conditioner | Article revision | 12 |
Overvoltage category | II | Pollution degree | 2 |
Electrical isolation | 3-way isolation | Electrical isolation between input and output | yes |
Limit frequency (3 dB) | 30 Hz | Protective circuit | Transient protection |
Signal transmission behavior | In = Out | Step response (10-90%) | 10 ms |
Maximum temperature coefficient | 0.01 %/K | Temperature coefficient, typical | 0.01 %/K |
Maximum transmission error | 0.1 % (of final value) | Rated insulation voltage | 300 V |
Test voltage | 3 kV AC (50 Hz, 60 s) | Insulation | Reinforced insulation according to IEC/EN 61010-1 |
Nominal supply voltage | 24 V DC | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Typical current consumption | 25 mA (24 V DC)
54 mA (12 V DC) | Power consumption | ≤ 800 mW (at 9.6 V DC) |
Number of inputs | 1 | Configurable/programmable | no |
Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA | Input resistance current input | approx. 63 Ω (+0.7 V for test diode) |
Number of outputs | 1 | Configurable/programmable | no |
Non-load voltage | < 17 V | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Max. current output signal | 22 mA | Load/output load current output | ≤ 600 Ω (at 20 mA) |
Ripple | < 20 mV | Connection method | Screw connection |
Stripping length | 10 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 (flexible) | Tightening torque | 0.5 Nm ... 0.6 Nm |
Ex installation (EPL) | Gc
Div. 2 | Status display | Green LED (supply voltage) |
Width | 6.2 mm | Height | 109.81 mm |
Depth | 119.2 mm | Color | gray (RAL 7042) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | BVS 19 ATEX E 047 X |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | PxCIF21UKEX2902000X |
Identification | Ex ec IIC T4 Gc | Certificate | IECEx BVS 19.0041X |
Identification | Ex nA IIC T4 Gc | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 |
Certificate | DNV GL TAA00002UA | Identification | 2Ex ec IIC T4 Gc |
Certificate | BY/112 02.01 TP012 103.01 00079 | Temperature | B |
Humidity | B | Vibration | A |
EMC | A | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
Standards/regulations | EN 61000-4-5 | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Electrical isolation | 3-way isolation |
Standards/regulations | GB 3836.1
GB 3836.8 | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
