Product Model

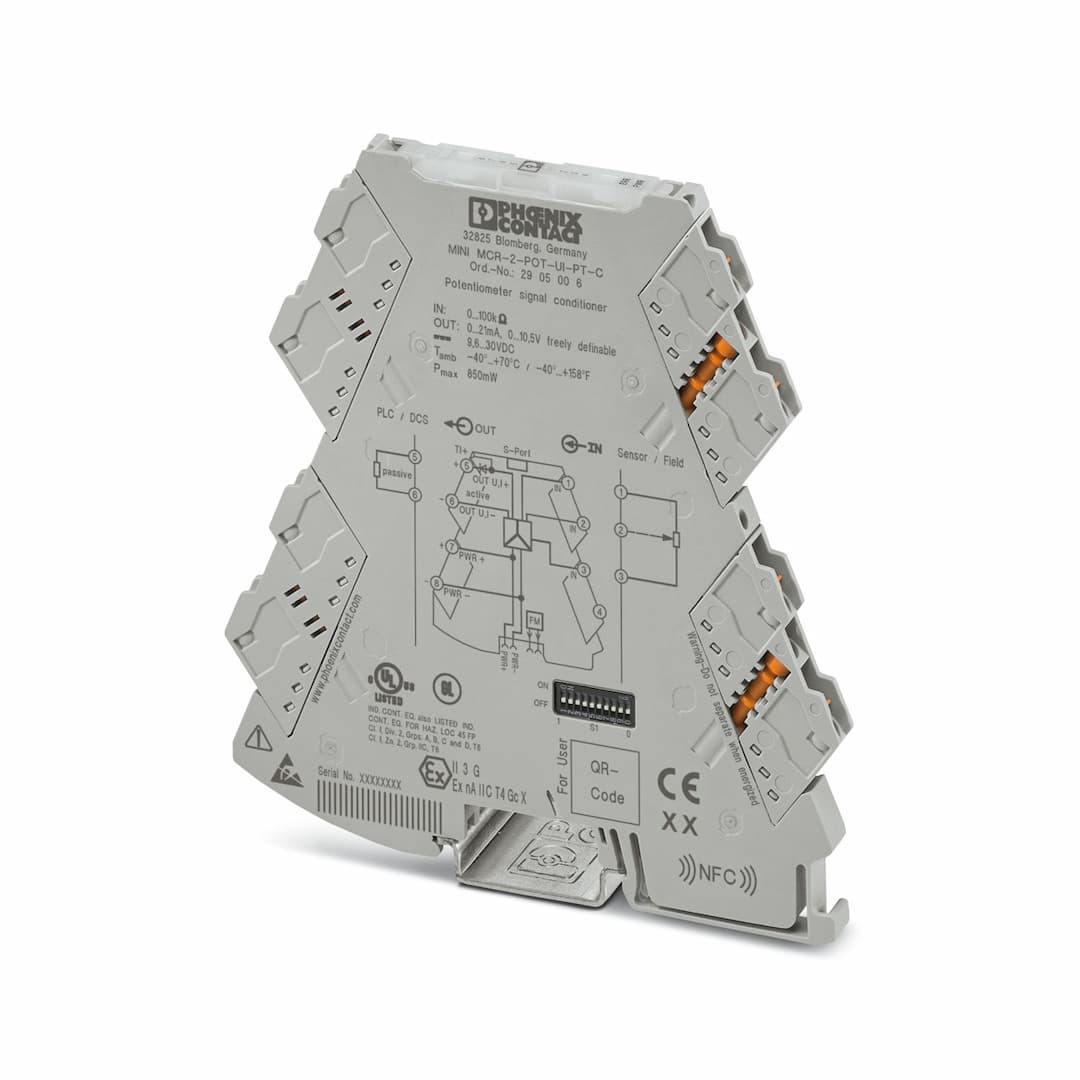

MINI MCR-2-POT-UI-PT-C
Selling Points
- 1Configurable via DIP switch or software for flexible signal adjustment.
- 2Supports fault monitoring and NFC communication for enhanced diagnostics.
- 3Isolated potentiometer measuring transducer with plug-in connection technology.
- 4Converts measured values into linear and freely adjustable current or voltage signals.
- 5Compact design with dimensions of 6.2 mm x 109.81 mm x 119.2 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Potiposition transducer |
Product family | MINI Analog Pro | No. of channels | 1 |
Configuration | DIP switches
Software
App | Article revision | 13 |
Overvoltage category | II | Pollution degree | 2 |
Configuration | DIP switches
Software
App | Electrical isolation | 3-way isolation |
Protective circuit | Transient protection | Step response (0–99%) | < 60 ms |
Maximum temperature coefficient | 0.01 %/K | Temperature coefficient, typical | 0.01 %/K |
Maximum transmission error | < 0.1 % (R < 240 Ω = < 0,2 %) | Rated insulation voltage | 300 V |
Test voltage | 3 kV AC (50 Hz, 60 s) | Insulation | Reinforced insulation according to IEC/EN 61010-1 |
Nominal supply voltage | 24 V DC | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Typical current consumption | 33 mA (24 V DC)
68 mA (12 V DC) | Power consumption | ≤ 850 mW (at I |
Number of inputs | 1 | Available input sources | 3-wire potentiometer |
Resistance range | 0 Ω ... 100 Ω
0 Ω ... 100 kΩ | Number of outputs | 1 |
Voltage output signal | 1 V ... 5 V (via DIP switch)
10 V ... 0 V (via DIP switch)
0 V ... 5 V (via DIP switch)
0 V ... 10 V (via DIP switch)
0 V ... 10.5 V (can be set via software) | Max. voltage output signal | 12.3 V |
Non-load voltage | < 17.5 V | Current output signal | 0 mA ... 20 mA (via DIP switch)
4 mA ... 20 mA (via DIP switch)
20 mA ... 0 mA (via DIP switch)
20 mA ... 4 mA (via DIP switch)
0 mA ... 21 mA (can be set via software) |
Max. current output signal | 24.6 mA | Short-circuit current | < 31.5 mA |
Load/output load voltage output | ≥ 10 kΩ | Load/output load current output | ≤ 600 Ω (20 mA) |
Ripple | < 20 mV
< 20 mV | Resolution, outputs (voltage) | 1 mV |
Resolution, outputs (current) | 2 µA | Behavior in the event of a sensor error | configurable |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 (flexible) | Ex installation (EPL) | Gc
Div. 2 |
Connection method | Micro USB type B | Operating voltage display | Green LED |
Error indication | Red LED | Width | 6.2 mm |
Height | 109.81 mm | Depth | 119.2 mm |
Color | gray (RAL 7042) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 (not assessed by UL) |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | BVS 20 ATEX E 024 X | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | PxCIF21UKEX2902049X | Identification | Ex ec IIC T4 Gc |
Certificate | IECEx BVS 20.0017X | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T5
Class I, Zone 2, Group IIC T5 |
Certificate | DNV GL TAA00002UA | Identification | 2Ex ec IIC T4 Gc |
Certificate | BY/112 02.01 TP012 103.01 00079 | Temperature | B |
Humidity | B | Vibration | A |
EMC | A | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
Typical deviation from the measuring range final value | 0.2 % | Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 | Typical deviation from the measuring range final value | 0.4 % |
Standards/regulations | EN 61000-4-5 | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 0.2 % |
Electrical isolation | 3-way isolation | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
