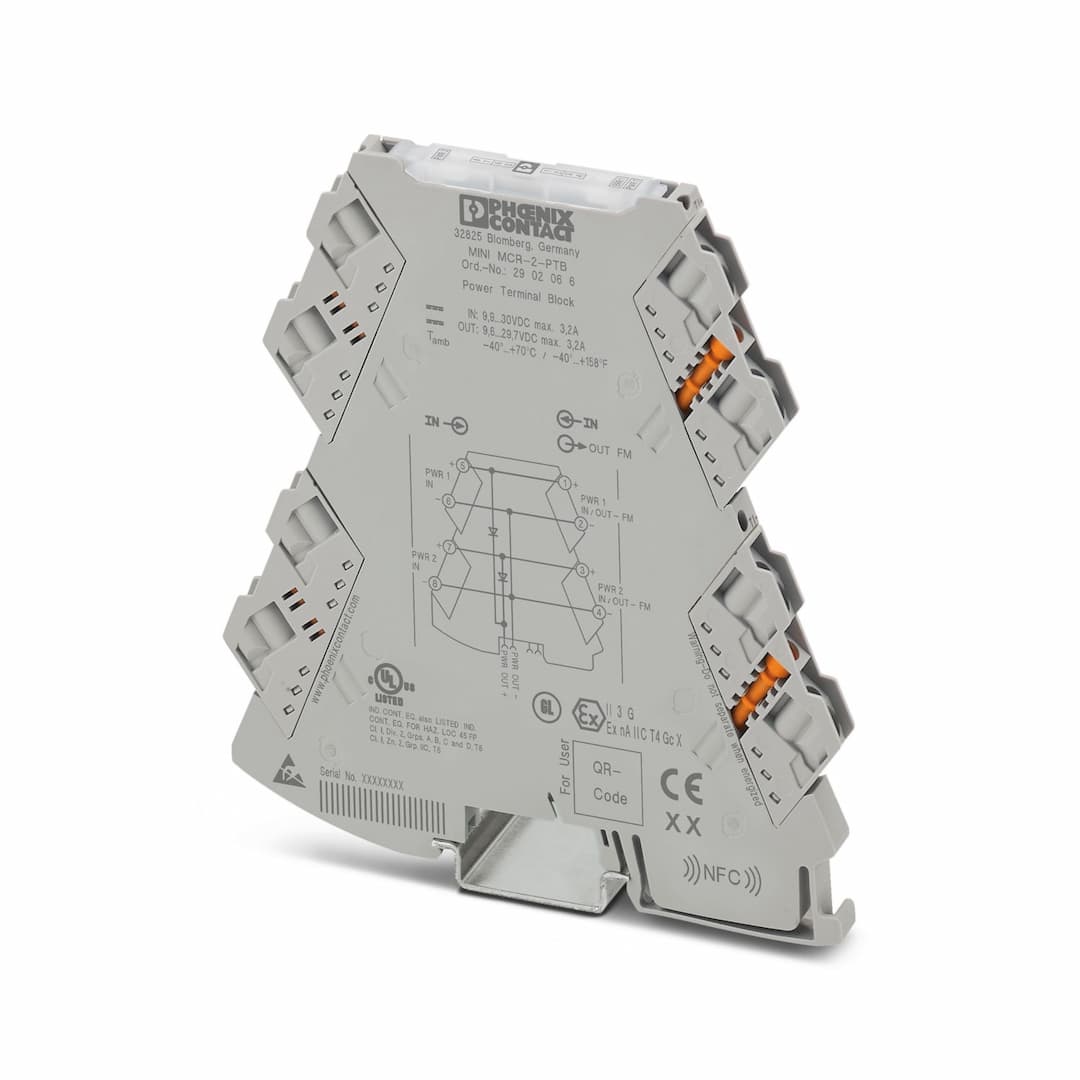

Phoenix Contact MINI MCR-2-PTB

Selling Points

  • 1Two separate voltage inputs ensure continuous operation with diode-decoupled power supply up to 3.2 A.
  • 2Designed to handle high current requirements, making it ideal for demanding industrial applications.
  • 3Built with PBT housing material, meeting fire protection standards for rail vehicles (DIN EN 45545-2).
  • 4Screw connection and flexible conductor cross-section options for various wiring configurations.
  • 5Green and red LEDs for operating voltage and error indication, ensuring easy monitoring and troubleshooting.
Product Details
MINI MCR-2-PTB
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Power module
Article revision
10
Maximum temperature coefficient
< 0.01 %/K
Input voltage range DC
9.9 V DC ... 30 V DC
Max. input current
3.2 A
Reverse polarity protection
yes
Output voltage range
9.6 V DC ... 29.7 V DC
Connection method
Screw connection
Conductor cross section, rigid min.
0.14 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.14 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
12
Stripping length
10 mm
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Interface
NFC interface
Operating voltage display
Green LED (PWR 1) Green LED (PWR 2)
Error indication
Red LED (ERR 1) Red LED (ERR 2)
Width
6.2 mm
Height
109.81 mm
Depth
119.2 mm
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20 (not assessed by UL)
Ambient temperature (operation)
-40 °C ... 70 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Maximum altitude
≤ 2000 m
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Identification
 II 3 G Ex ec IIC T4 Gc
Certificate
BVS 20 ATEX E 014X
Identification
 II 3 G Ex ec IIC T4 Gc
Certificate
PxCIF21UKEX2902004X
Identification
Ex ec IIC T4 Gc
Certificate
IECEx BVS 20.0010X
Identification
Ex nA IIC T4 Gc
Certificate
NEPSI GYJ20.1320X
Identification
UL 508 Listed Class I, Div. 2, Groups A, B, C, D T6 Class I, Zone 2, Group IIC T6
Certificate
DNV GL TAA00002UA
Temperature
B
Humidity
B
Vibration
A
EMC
A
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Comments
Safety measures must be taken to prevent electrostatic discharge.
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Standards/regulations
EN 61000-4-5
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Standard designation
GB Standard
Standards/specifications
GB 3836.1 GB 3836.8
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any

Specifications may be subject to change without notice
