Product Model

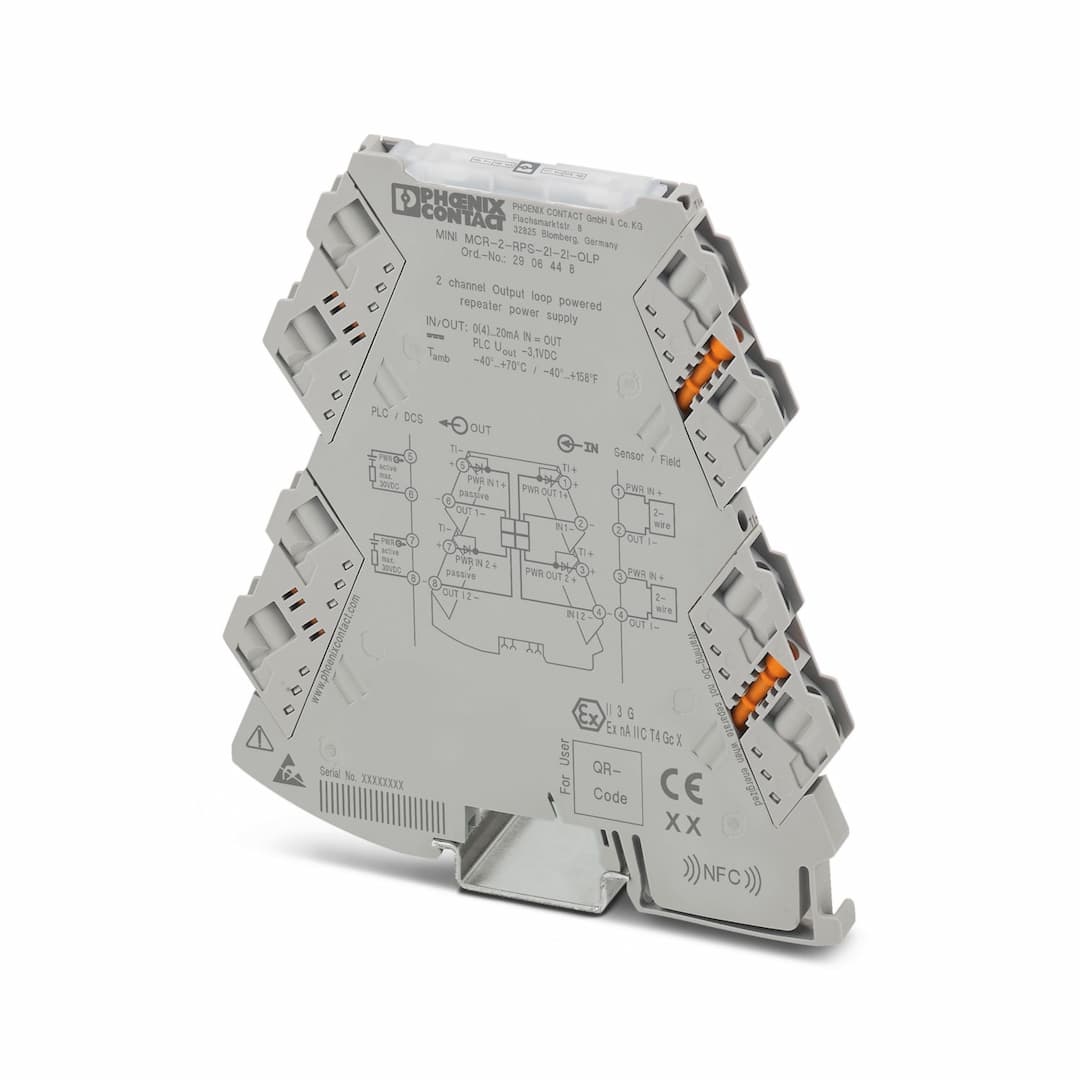

MINI MCR-2-RPS-2I-2I-OLP
Selling Points
- 1Two-channel output loop-powered isolator for reliable signal transmission.
- 2Electrical isolation ensures safe and clean signal processing.
- 3Plug-in connection technology simplifies installation and maintenance.
- 4Operates at 6 V DC to 30 V DC, compatible with various controller supplies.
- 5Supports NFC communication for easy sensor integration and monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Repeater power supply |
Product family | MINI Analog Pro | No. of channels | 2 |
Type | Signal conditioner | Article revision | 04 |
Overvoltage category | II | Pollution degree | 2 |
Electrical isolation | 2-way isolation | Electrical isolation between input and output | yes |
Limit frequency (3 dB) | 100 Hz | Signal transmission behavior | In = Out |
Maximum temperature coefficient | ≤ 0.001 %/K | Maximum transmission error | ≤ 0.1 % (At 5 V) |
Rated insulation voltage | 300 V | Test voltage | 3 kV AC (50 Hz, 60 s) |
Insulation | Reinforced insulation according to IEC/EN 61010-1 | Supply voltage range | 8 V DC ... 30 V DC (loop-powered, no external supply necessary) |
Power consumption | 600 mW (25 mA) | Number of inputs | 2 |
Configurable/programmable | no | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Voltage dissipation | 3.1 V (I = 20 mA) | Transmitter supply voltage | U |
Additional error, depending on the input voltage | (U | Number of outputs | 2 |
Configurable/programmable | no | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Response current | 200 µA | Voltage dissipation | 3.1 V (I = 20 mA) |
Load/output load current output | 600 Ω | Connection method | Screw connection |
Stripping length | 10 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 (flexible) | Tightening torque | 0.5 Nm ... 0.6 Nm |
Ex installation (EPL) | Gc
Div. 2 | Width | 6.2 mm |
Height | 109.81 mm | Depth | 119.2 mm |
Color | gray (RAL 7042) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 (not assessed by UL) |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | BVS 19 ATEX E 079 X |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | PxCIF21UKEX2901994X |
Identification | Ex ec IIC T4 Gc | Certificate | IECEx BVS 19.0068X |
Identification | Ex nA IIC T4 Gc | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 |
Identification | 2Ex ec IIC T4 Gc | Certificate | BY/112 02.01 TP012 103.01 00081 |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Electrical isolation | 2-way isolation | Standards/regulations | GB 3836.1
GB 3836.8 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
