Product Model

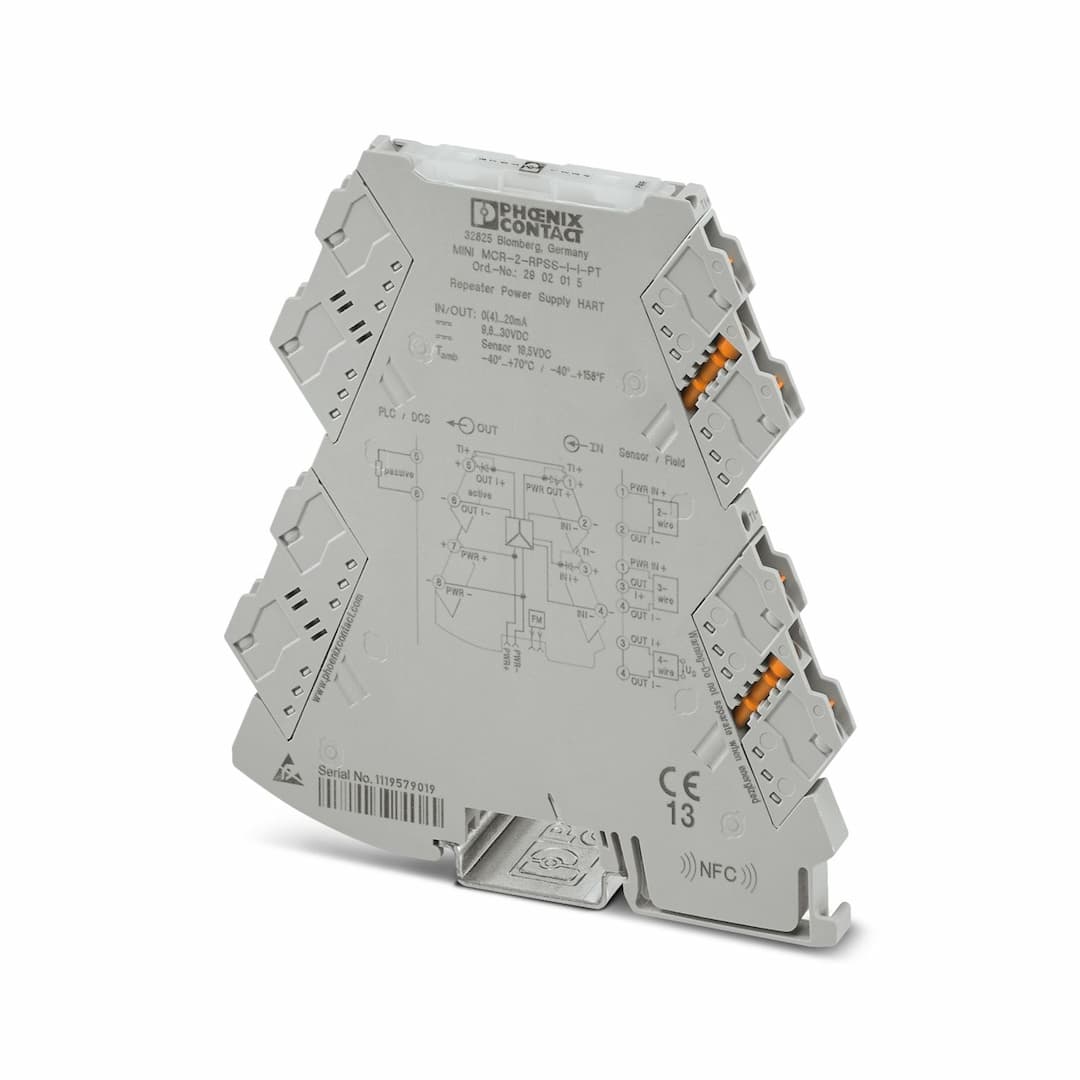

MINI MCR-2-RPSS-I-I-PT
Selling Points
- 1The device provides reinforced insulation between input, output, and power supply, ensuring safe operation.
- 2Supports bidirectional HART data protocols for seamless communication.
- 3Meets EN 61000-6-2 and EN 61000-6-4 standards for noise immunity and emission.
- 4Measures 6.2 mm in width, 110.5 mm in height, and 120.5 mm in depth.
- 5Operates between -40°C and 70°C ambient temperature, making it suitable for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Repeater power supply |
Product family | MINI Analog Pro | No. of channels | 1 |
Type | Signal conditioner | Article revision | 11 |
Overvoltage category | II | Pollution degree | 2 |
Electrical isolation | 3-way isolation | Electrical isolation between input and output | yes |
Limit frequency (3 dB) | > 1.75 kHz | Protective circuit | Transient protection |
Signal transmission behavior | In = Out | Step response (10-90%) | < 200 µs (typ.) |
Maximum temperature coefficient | 0.0075 %/K | Temperature coefficient, typical | 0.0075 %/K |
Maximum transmission error | 0.05 % (of final value in repeater power supply operation)
0.1 % (of final value in isolator operation) | Rated insulation voltage | 300 V |
Test voltage | 3 kV AC (50 Hz, 60 s) | Insulation | Reinforced insulation according to IEC/EN 61010-1 |
Nominal supply voltage | 24 V DC | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Typical current consumption | 25 mA (at 24 V DC and in isolator operation)
50 mA (at 24 V DC and in repeater power supply operation)
55 mA (at 12 V DC and in isolator operation)
110 mA (at 12 V DC and in repeater power supply operation) | Power consumption | ≤ 1400 mW (at I |
Description of the input | Sensor circuit | Number of inputs | 1 |
Current input signal | 0 mA ... 20 mA (isolator operation)
4 mA ... 20 mA (repeater power supply and isolator operation) | Input resistance current input | 68 Ω (+0.7 V for test diode) |
Transmitter supply voltage | > 19.5 V | Number of outputs | 1 |
Non-load voltage | < 20 V | Current output signal | 0 mA ... 20 mA (isolator operation)
4 mA ... 20 mA (repeater power supply and isolator operation) |
Max. current output signal | 24 mA | Load/output load current output | ≤ 600 Ω (20 mA) |
Ripple | < 20 mV | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
Ex installation (EPL) | Gc
Div. 2 | HART function | Yes |
Limit frequency (3 dB) | 1.75 kHz | Status display | Green LED (supply voltage) |
Width | 6.2 mm | Height | 109.81 mm |
Depth | 119.2 mm | Color | gray (RAL 7042) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | BVS 19 ATEX E 047 X |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | PxCIF21UKEX2902000X |
Identification | Ex ec IIC T4 Gc | Certificate | IECEx BVS 19.0041X |
Identification | Ex nA IIC T4 Gc | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T5
Class I, Zone 2, Group IIC T5 |
Certificate | DNV GL TAA00002UA | Identification | 2Ex ec IIC T4 Gc |
Certificate | BY/112 02.01 TP012 103.01 00079 | Temperature | B |
Humidity | B | Vibration | A |
EMC | A | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
Standards/regulations | EN 61000-4-5 | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Electrical isolation | 3-way isolation |
Standards/regulations | GB 3836.1
GB 3836.8 | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
