Product Model

MINI MCR-2-RTD-UI-PT-C-CS

In Stock
Last updated: 2025/4/19

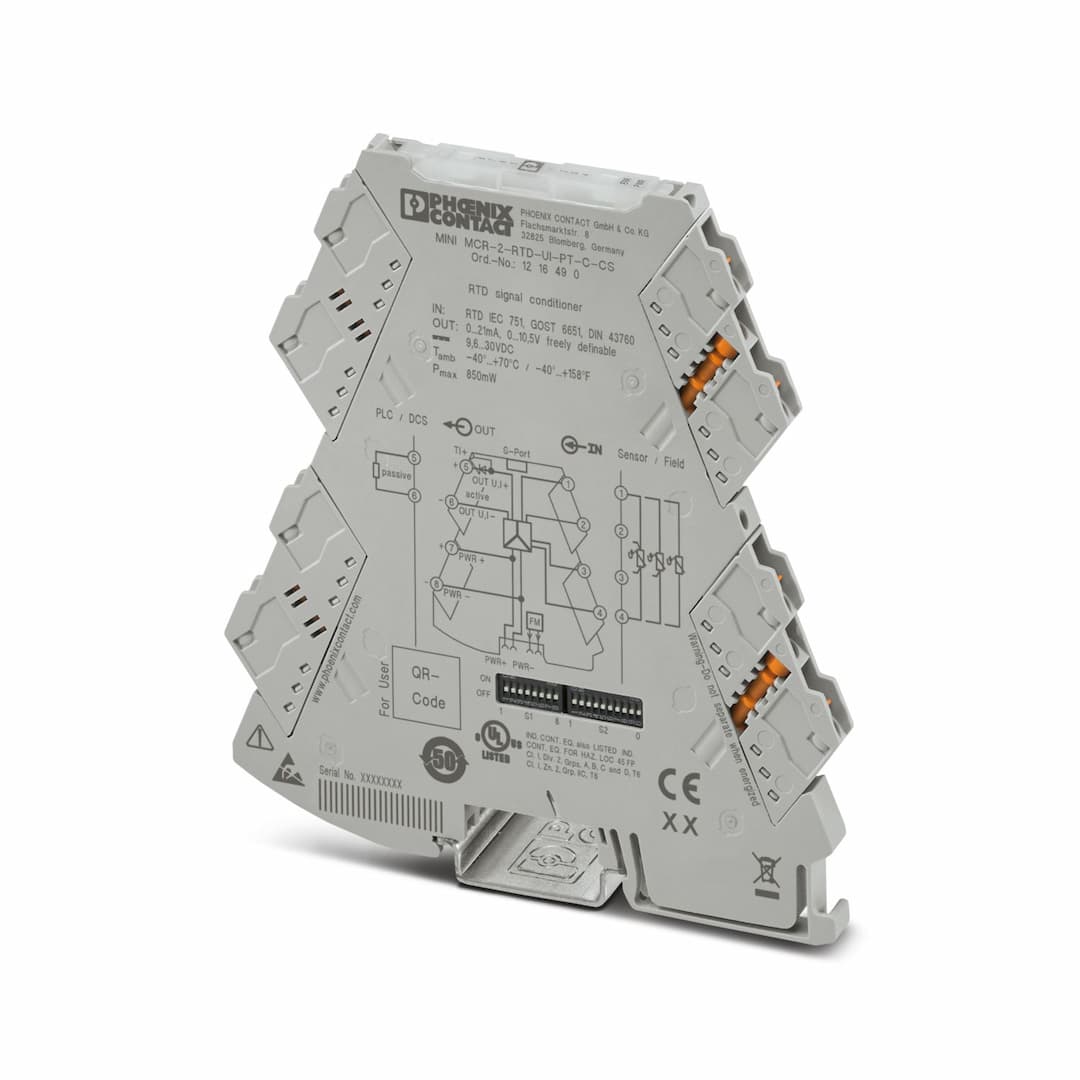

Phoenix Contact MINI MCR-2-RTD-UI-PT-C-CS

Selling Points

  • 1Configurable for 2, 3, and 4-wire connections.
  • 23-way isolated temperature transducer with plug-in connection technology.
  • 3Configurable via DIP switches or software for Pt 100 and Pt 1000 sensors.
  • 4Supports fault monitoring and diagnostic indicators.
  • 5Suitable for resistance thermometers and remote resistance-type sensors.
Product Details
MINI MCR-2-RTD-UI-PT-C-CS
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Temperature transmitter
Product family
MINI Analog Pro
Article revision
03
Overvoltage category
II
Pollution degree
2
Rated insulation voltage
300 V
Electrical isolation
Reinforced insulation in accordance with IEC 61010-1
Test voltage, input/output/supply
3 kV AC (50 Hz, 60 s)
Step response (0–99%)
200 ms (2-conductor) 500 ms (3-conductor) 500 ms (4-conductor)
Maximum temperature coefficient
0.01 %/K
Transmission error resistance-type sensor
2 Ω
Transmission error resistance thermometer
0.1 % * 350 K / set measuring range; 0.1 % > 350 K (Pt/Ni) 0.3 % * 200 K / set measuring range; 0.3 % > 200 K (Cu)
Supply voltage range
9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Typical current consumption
32 mA (24 V DC) 63 mA (12 V DC)
Power consumption
≤ 850 mW (at I
Sensor types (RTD) that can be used
Pt, Ni, Cu sensors
Temperature measuring range
-200 °C ... 850 °C (Range depends on sensor type, range can be set freely via software or in increments from -150°C to 850°C via DIP switches)
Temperature measuring range
≥ 20 K
Sensor input current
approx. 200 µA
Max. permissible overall conductor resistance
≤ 25 Ω (Per line, RTD in 3- or 4-conductor technology)
Linear resistance measuring range
0 Ω ... 4000 Ω (Minimum measuring span: 10% of the selected measuring range)
Connection technology
2-, 3-, 4-conductor
Voltage output signal
0 V ... 5 V (via DIP switch) 1 V ... 5 V (via DIP switch) 0 V ... 10 V (via DIP switch) 10 V ... 0 V (via DIP switch) 0 V ... 10.5 V (can be set via software)
Max. voltage output signal
approx. 12.3 V
Non-load voltage
< 17.5 V
Current output signal
0 mA ... 20 mA (via DIP switch) 4 mA ... 20 mA (via DIP switch) 20 mA ... 0 mA (via DIP switch) 20 mA ... 4 mA (via DIP switch) 0 mA ... 21 mA (can be set via software)
Max. current output signal
24.6 mA
Short-circuit current
< 31.5 mA
Load/output load voltage output
≥ 10 kΩ
Load/output load current output
≤ 600 Ω
Ripple
< 10 mV
Connection method
Push-in connection
Stripping length
10 mm
Conductor cross section rigid
0.2 mm² ... 2.5 mm² (with ferrule) 0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible
0.14 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12 (flexible)
Width
6.2 mm
Height
109.81 mm
Depth
119.2 mm
Color
gray (RAL 7042)
Housing material
PBT
Degree of protection
IP20
Ambient temperature (operation)
-40 °C ... 70 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Identification
 II 3 G Ex ec IIC T4 Gc
Certificate
PxCIF21UKEX2902049X
Identification
UL 508 Listed Class I, Div. 2, Groups A, B, C, D T6 Class I, Zone 2, Group IIC T6
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Electrical isolation
Reinforced insulation in accordance with IEC 61010-1

Specifications may be subject to change without notice
