Product Model

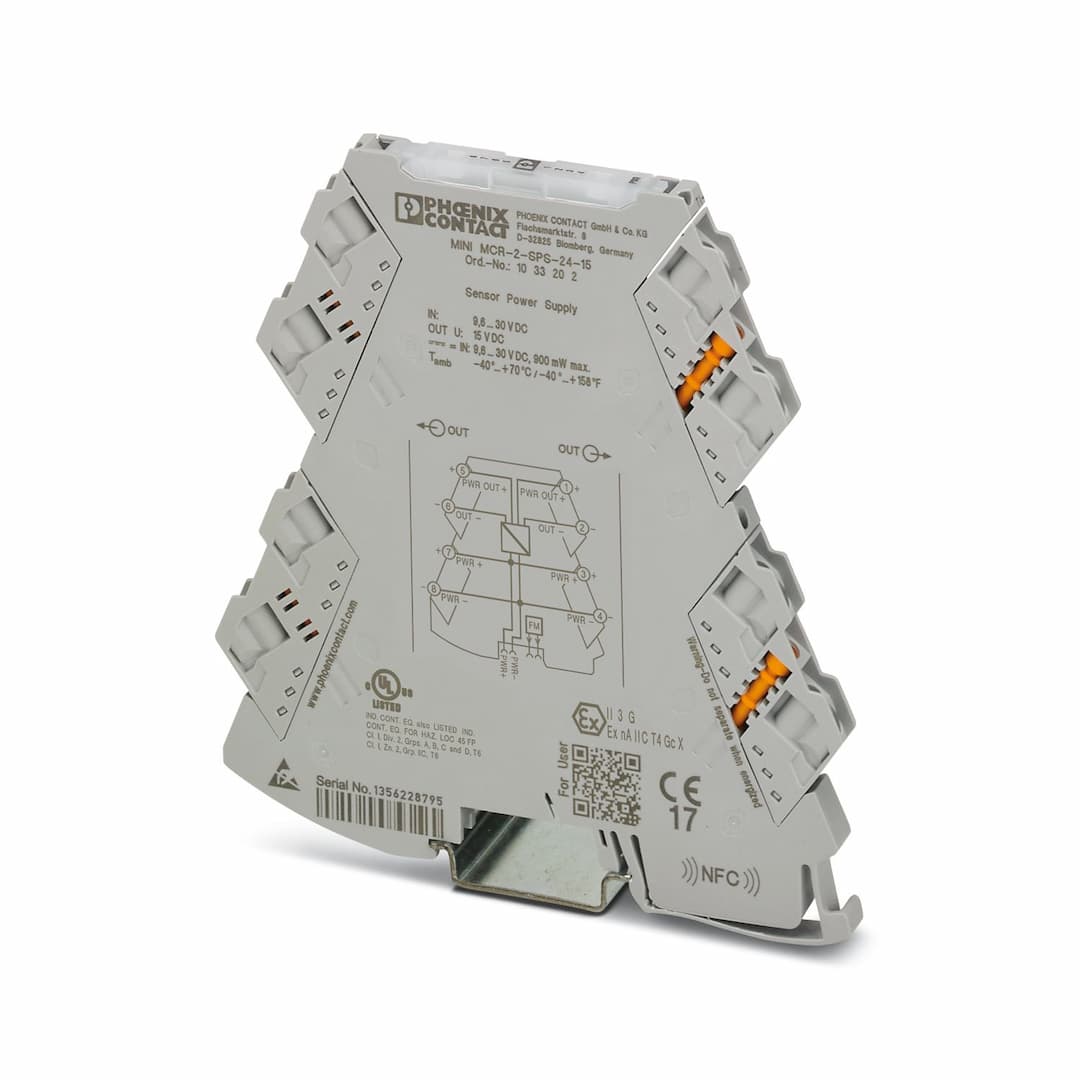

MINI MCR-2-SPS-24-15
Selling Points
- 1Precise constant voltage generation at 15 V.
- 2Pluggable connection technology for easy installation.
- 3CE-compliant and EN 60715 DIN rail compatible.
- 4Ideal for sensor supply and industrial automation.
- 5Available with 14-day returns and 30-day returns options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Constant voltage source |
Product family | MINI Analog Pro | Article revision | 03 |
Overvoltage category | II | Pollution degree | 2 |
Maximum temperature coefficient | < 0.01 %/K | Maximum transmission error | ≤ 0.1 % (of final value) |
Rated insulation voltage | 300 V | Test voltage | 3 kV AC (50 Hz, 60 s) |
Insulation | Reinforced insulation according to IEC/EN 61010-1 | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Typical current consumption | < 38.2 mA (24 V)
< 79.8 mA (12 V) | Power consumption | < 900 mW (9.6 V DC) |
Voltage input signal | 9.6 V DC ... 30 V DC | Transmitter supply voltage | 15 V DC |
Max. voltage output signal | 15 V DC | Short-circuit current | > 35 mA |
Output voltage with wire break | 15 V DC | Output current | ≤ 30 mA |
Ripple | < 20 mV | Connection method | Screw connection |
Stripping length | 10 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 (flexible) | Tightening torque | 0.5 Nm ... 0.6 Nm |
Ex installation (EPL) | Gc
Div. 2 | Status display | Green LED (supply voltage) |
Width | 6.2 mm | Height | 109.81 mm |
Depth | 119.2 mm | Color | gray (RAL 7042) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | BVS 20 ATEX E 014X |
Identification | II 3 G Ex ec IIC T4 Gc | Certificate | PxCIF21UKEX2902004X |
Identification | Ex ec IIC T4 Gc | Certificate | IECEx BVS 20.0010X |
Identification | Ex nA IIC T4 Gc | Certificate | NEPSI GYJ20.1320X |
Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 | Certificate | DNV GL TAA000021E Rev. 1 |
Temperature | B | Humidity | B |
Vibration | A | EMC | A |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | GB 3836.1
GB 3836.8 |
Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
Mounting position | any |
Specifications may be subject to change without notice
