Product Model

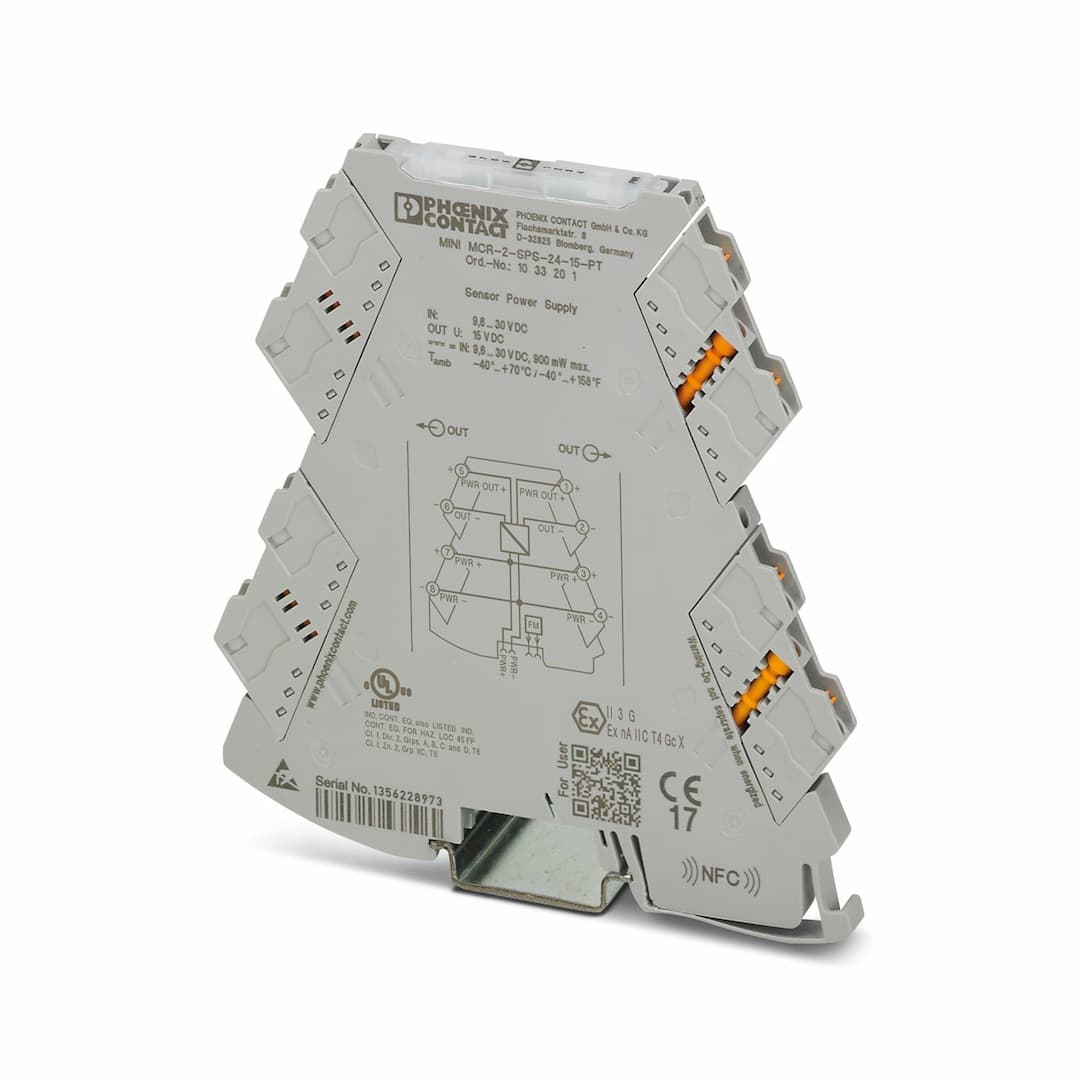

MINI MCR-2-SPS-24-15-PT
Selling Points
- 1Generates a highly precise constant voltage of 15V for reliable sensor supply.
- 2Space-saving installation with dimensions of 6.2mm x 109.81mm x 119.2mm.
- 3Easy setup via DIP switches or software for flexibility in adjustments.
- 4Built with durable materials to withstand harsh industrial environments.
- 5CE-compliant, ATEX certified, and UL listed for safety in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Constant voltage source |
Product family | MINI Analog Pro | Article revision | 03 |
Overvoltage category | II | Pollution degree | 2 |
Maximum temperature coefficient | < 0.01 %/K | Maximum transmission error | ≤ 0.4 % (of final value) |
Rated insulation voltage | 300 V | Test voltage | 3 kV AC (50 Hz, 60 s) |
Insulation | Reinforced insulation according to IEC/EN 61010-1 | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Typical current consumption | < 38.2 mA (24 V)
< 79.8 mA (12 V) | Power consumption | < 900 mW (9.6 V DC) |
Voltage input signal | 9.6 V DC ... 30 V DC | Transmitter supply voltage | 15 V |
Max. voltage output signal | 15 V DC | Short-circuit current | > 35 mA |
Output voltage with wire break | 15 V | Output current | ≤ 30 mA |
Ripple | < 20 mV | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
Ex installation (EPL) | Gc
Div. 2 | Status display | Green LED (supply voltage) |
Width | 6.2 mm | Height | 109.81 mm |
Depth | 119.2 mm | Color | gray (RAL 7042) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | BVS 20 ATEX E 014X | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | PxCIF21UKEX2902004X | Identification | Ex ec IIC T4 Gc |
Certificate | IECEx BVS 20.0010X | Identification | Ex nA IIC T4 Gc |
Certificate | NEPSI GYJ20.1320X | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 |
Certificate | DNV GL TAA000021E Rev. 1 | Temperature | B |
Humidity | B | Vibration | A |
EMC | A | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Standards/regulations | GB 3836.1
GB 3836.8 | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
