Product Model

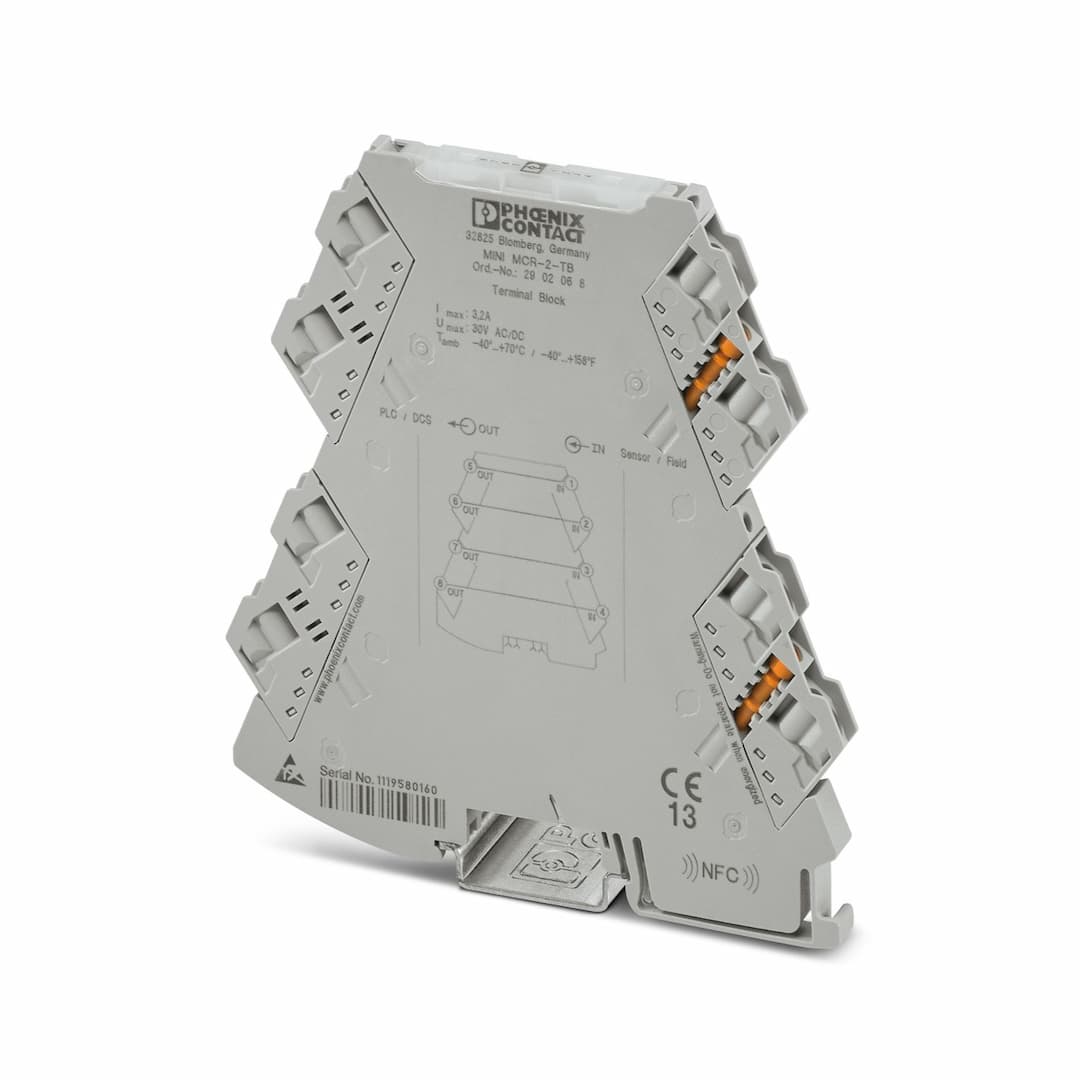

MINI MCR-2-TB
Selling Points
- 1Electrical Isolation: The MINI MCR-2-TB ensures electrical isolation for safe signal transmission.
- 2Plug-in Connection: Features plug-in connection technology for easy and secure connections.
- 3NFC Communication: Supports NFC communication for enhanced connectivity options.
- 4ATEX Certification: Meets ATEX standards for use in hazardous environments.
- 5Compact Design: Offers a compact design with dimensions of 6.2 mm x 110.5 mm x 120.5 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Feed-through terminal block |
Product family | MINI Analog Pro | Article revision | 08 |
Overvoltage category | II | Pollution degree | 2 |
Current carrying capacity | 4 A (Total) | Nominal supply voltage | 24 V AC/DC |
Number of inputs | 4 | Max. voltage input signal | 30 V AC/DC (per channel) |
Max. current input signal | 1 A (per channel) | Connection method | Screw connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Tightening torque | 0.5 Nm ... 0.6 Nm | Ex installation (EPL) | Gc
Div. 2 |
Width | 6.2 mm | Height | 109.81 mm |
Depth | 119.2 mm | Color | gray (RAL 7042) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Altitude | ≤ 2000 m (The technical data refers to altitudes ≤2000 m above mean sea level. For altitudes >2000 m above mean sea level, refer to the data sheet.) | Ambient temperature (operation) | -40 °C ... 70 °C |
Rated insulation voltage | 50 V AC/DC | Height range | > 2000 m ... 3000 m |
Ambient temperature (operation) | -40 °C ... 63 °C | Rated insulation voltage | 40 V AC/DC |
Height range | > 3000 m ... 4000 m | Ambient temperature (operation) | -40 °C ... 56 °C |
Rated insulation voltage | 30 V AC/DC | Height range | > 4000 m ... 5000 m |
Ambient temperature (operation) | -40 °C ... 49 °C | Rated insulation voltage | 30 V AC/DC |
Certificate | CE-compliant | Identification | II 3 G Ex ec IIC Gc |
Certificate | PxCIF16ATEX2901993U | Identification | II 3 G Ex ec IIC Gc |
Certificate | PxCIF22UKEX2901993U | Identification | Ex ec IIC Gc |
Certificate | IECEx BVS 22.0005U | Identification | Ex ec IIC Gc |
Certificate | 2022122313115722 | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 |
Certificate | DNV GL TAA00002UA | Temperature | B |
Humidity | B | Vibration | A |
EMC | A | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Standards/regulations | GB 3836.1
GB 3836.3 | Mounting type | NS 35/7,5
NS 35/15
NS 35/15-2,3
DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
