Product Model

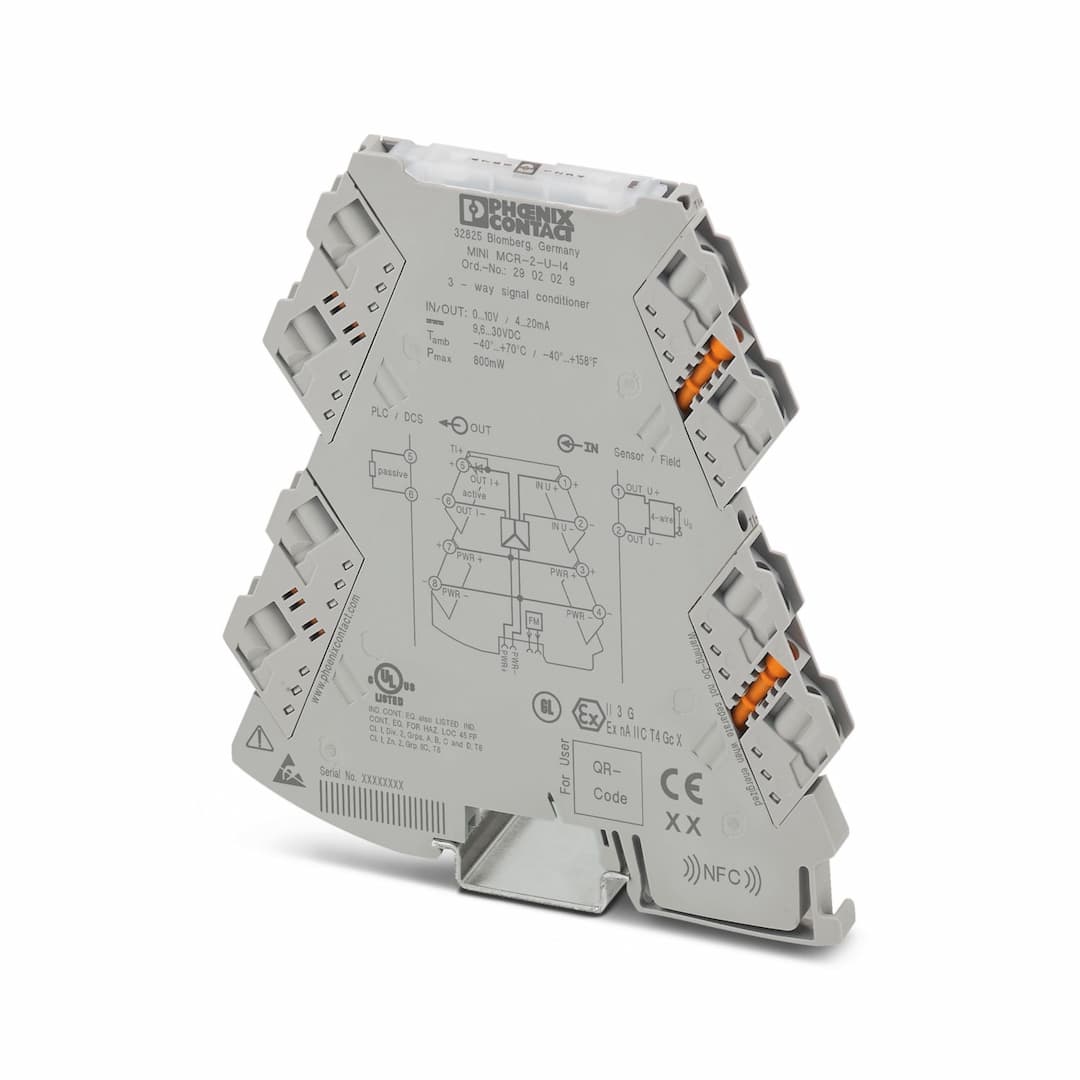

MINI MCR-2-U-I4
Selling Points
- 1The MINI MCR-2-U-I4 ensures precise signal processing with minimal deviations under interference.
- 2Conforms to EN 61000-6-2 and EN 61000-6-4 standards for noise immunity and noise emission.
- 3Supports plug-in connection technology for easy installation and screw connection for secure mounting.
- 4Operates within -40°C to 70°C ambient temperature and 5% to 95% humidity (non-condensing).
- 5Includes transient protection, electrical isolation, and reinforced insulation according to IEC 61010-1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Signal conditioner |
Product family | MINI Analog Pro | No. of channels | 1 |
Type | Signal conditioner | Article revision | 12 |
Overvoltage category | II | Pollution degree | 2 |
Electrical isolation | 3-way isolation | Electrical isolation between input and output | yes |
Limit frequency (3 dB) | 30 Hz | Protective circuit | Transient protection |
Step response (10-90%) | 10 ms | Maximum temperature coefficient | 0.01 %/K |
Temperature coefficient, typical | 0.01 %/K | Maximum transmission error | 0.05 % (of final value) |
Rated insulation voltage | 300 V | Test voltage | 3 kV AC (50 Hz, 60 s) |
Insulation | Reinforced insulation according to IEC/EN 61010-1 | Nominal supply voltage | 24 V DC |
Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Typical current consumption | 25 mA (24 V DC)
54 mA (12 V DC) |
Power consumption | ≤ 800 mW (9.6 V DC) | Number of inputs | 1 |
Configurable/programmable | no | Voltage input signal | 0 V ... 10 V |
Input resistance of voltage input | 1 MΩ | Number of outputs | 1 |
Configurable/programmable | no | Non-load voltage | < 17 V |
Current output signal | 4 mA ... 20 mA | Max. current output signal | 22 mA |
Load/output load current output | ≤ 600 Ω (20 mA) | Ripple | < 20 mV |
Connection method | Screw connection | Stripping length | 10 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
Tightening torque | 0.5 Nm ... 0.6 Nm | Ex installation (EPL) | Gc
Div. 2 |
Status display | Green LED (supply voltage) | Width | 6.2 mm |
Height | 109.81 mm | Depth | 119.2 mm |
Color | gray (RAL 7042) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 (not assessed by UL) |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | BVS 19 ATEX E 047 X | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | PxCIF21UKEX2902000X | Identification | Ex ec IIC T4 Gc |
Certificate | IECEx BVS 19.0041X | Identification | Ex nA IIC T4 Gc |
Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 | Certificate | DNV GL TAA00002UA |
Identification | 2Ex ec IIC T4 Gc | Certificate | BY/112 02.01 TP012 103.01 00079 |
Temperature | B | Humidity | B |
Vibration | A | EMC | A |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 | Standards/regulations | EN 61000-4-5 |
Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
Electrical isolation | 3-way isolation | Standards/regulations | GB 3836.1
GB 3836.8 |
Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
Mounting position | any |
