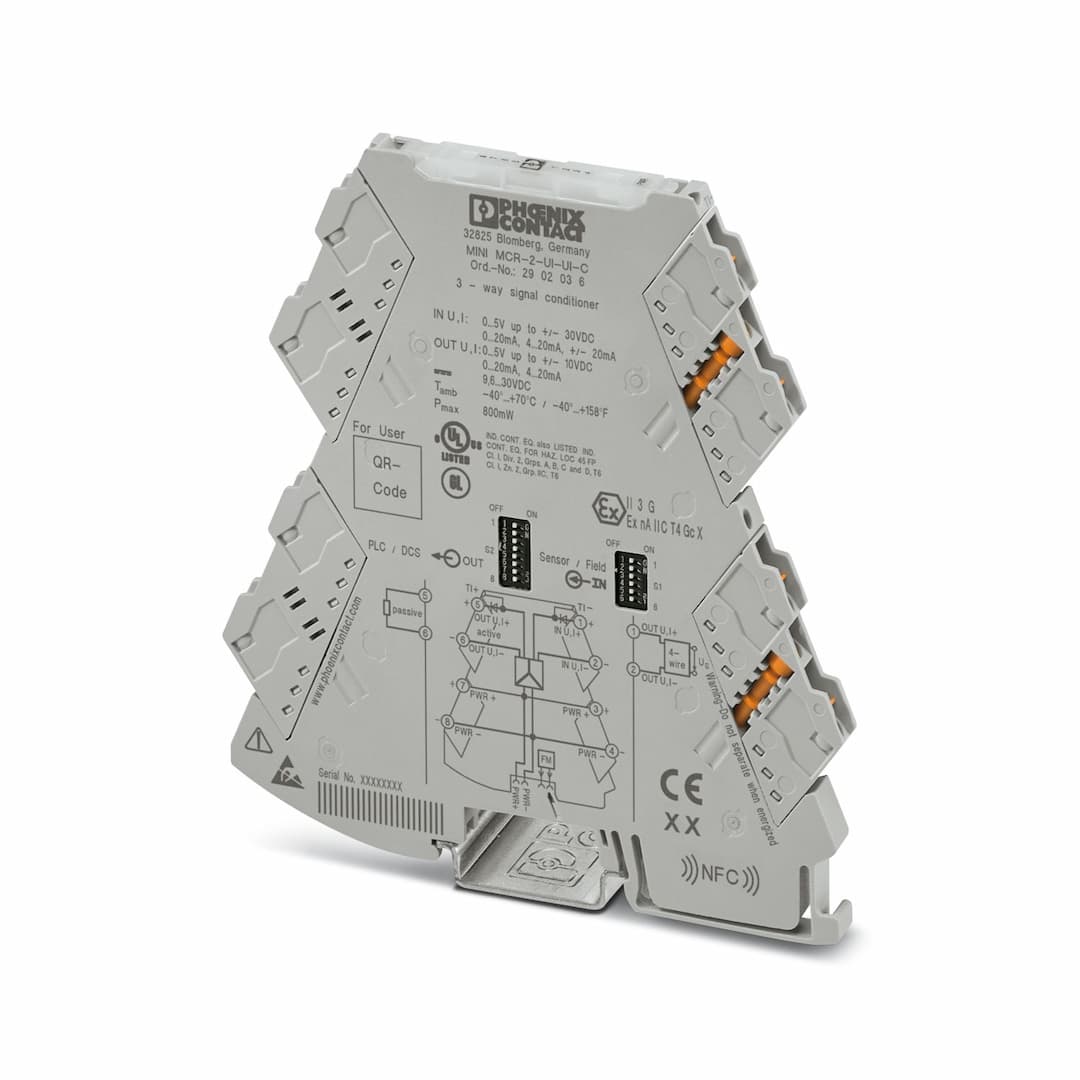

Product Model
MINI MCR-2-UI-UI-C
Selling Points
- 1Configurable via DIP switches for versatile signal processing.
- 2Electrical isolation of unipolar and bipolar analog signals.
- 3Calibrated measuring range changeover for precise signal conversion.
- 4Plug-in connection technology for easy installation and maintenance.
- 5Meets IEC 61010-1 standards for reinforced insulation and transient protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Signal conditioner |
Product family | MINI Analog Pro | No. of channels | 1 |
Type | Signal conditioner | Configuration | DIP switches |
Article revision | 14 | Overvoltage category | II |
Pollution degree | 2 | Electrical isolation | 3-way isolation |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | 30 Hz (via DIP switch)
5 kHz (via DIP switch) |
Protective circuit | Transient protection | Step response (10-90%) | < 12 ms (with 30 Hz filter) |
Maximum temperature coefficient | 0.01 %/K | Temperature coefficient, typical | 0.01 %/K |
Maximum transmission error | ≤ 0.1 % (of final value)
≤ 0.15 % (of final value, at IN: 4 mA ... 20 mA / OUT: -10 V ... 10 V) | Rated insulation voltage | 300 V |
Test voltage | 3 kV AC (50 Hz, 60 s) | Insulation | Reinforced insulation according to IEC/EN 61010-1 |
Nominal supply voltage | 24 V DC | Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Typical current consumption | 25 mA (Current output, at 24 V DC incl. load)
54 mA (Current output, at 12 V DC incl. load) | Power consumption | ≤ 800 mW (at I |
Number of inputs | 1 | Configurable/programmable | Yes |
Voltage input signal | 0 V ... 5 V (via DIP switch)
1 V ... 5 V (via DIP switch)
-5 V ... 5 V (via DIP switch)
0 V ... 10 V (via DIP switch)
2 V ... 10 V (via DIP switch)
-10 V ... 10 V (via DIP switch)
0 V ... 20 V (via DIP switch)
4 V ... 20 V (via DIP switch)
-20 V ... 20 V (via DIP switch)
0 V ... 24 V (via DIP switch)
4.8 V ... 24 V (via DIP switch)
-24 V ... 24 V (via DIP switch)
0 V ... 30 V (via DIP switch)
6 V ... 30 V (via DIP switch)
-30 V ... 30 V (via DIP switch) | Max. voltage input signal | 33 V |
Current input signal | 0 mA ... 20 mA (via DIP switch)
4 mA ... 20 mA (via DIP switch)
-20 mA ... 20 mA (via DIP switch) | Max. current input signal | 24 mA |
Input resistance of voltage input | > 1000 kΩ | Input resistance current input | approx. 63 Ω (+0.7 V for test diode) |
Number of outputs | 1 | Configurable/programmable | Yes |
Voltage output signal | 0 V ... 5 V (via DIP switch)
1 V ... 5 V (via DIP switch)
-5 V ... 5 V (via DIP switch)
0 V ... 10 V (via DIP switch)
2 V ... 10 V (via DIP switch)
-10 V ... 10 V (via DIP switch) | Non-load voltage | < 17 V |
Current output signal | 0 mA ... 20 mA (via DIP switch)
4 mA ... 20 mA (via DIP switch) | Max. current output signal | 22 mA |
Short-circuit current | < 32 mA | Load/output load voltage output | ≥ 10 kΩ |
Load/output load current output | ≤ 600 Ω (at 20 mA) | Ripple | < 20 mV
< 20 mV |
Connection method | Screw connection | Stripping length | 10 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
Tightening torque | 0.5 Nm ... 0.6 Nm | Ex installation (EPL) | Gc
Div. 2 |
Status display | Green LED (supply voltage) | Width | 6.2 mm |
Height | 109.81 mm | Depth | 119.2 mm |
Color | gray (RAL 7042) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 (not assessed by UL) |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | II 3 G Ex ec ic IIC T4 Gc | Certificate | BVS 19 ATEX E 047 X |
Identification | Ex ec ic IIC T4 Gc | Certificate | IECEx BVS 19.0041X |
Identification | Ex ec ic IIC T4 Gc | Certificate | 2022122310115961 |
Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 | Certificate | DNV GL TAA00002UA |
Identification | 2Ex ec ic IIC T4 Gc | Certificate | BY/112 02.01 TP012 103.01 00079 |
Temperature | B | Humidity | B |
Vibration | A | EMC | A |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 | Standards/regulations | EN 61000-4-5 |
Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
Electrical isolation | 3-way isolation | Standards/regulations | GB/T 3836.1
GB/T 3836.3
GB/T 3836.4 |
Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
Mounting position | any |
Specifications may be subject to change without notice
