Product Model

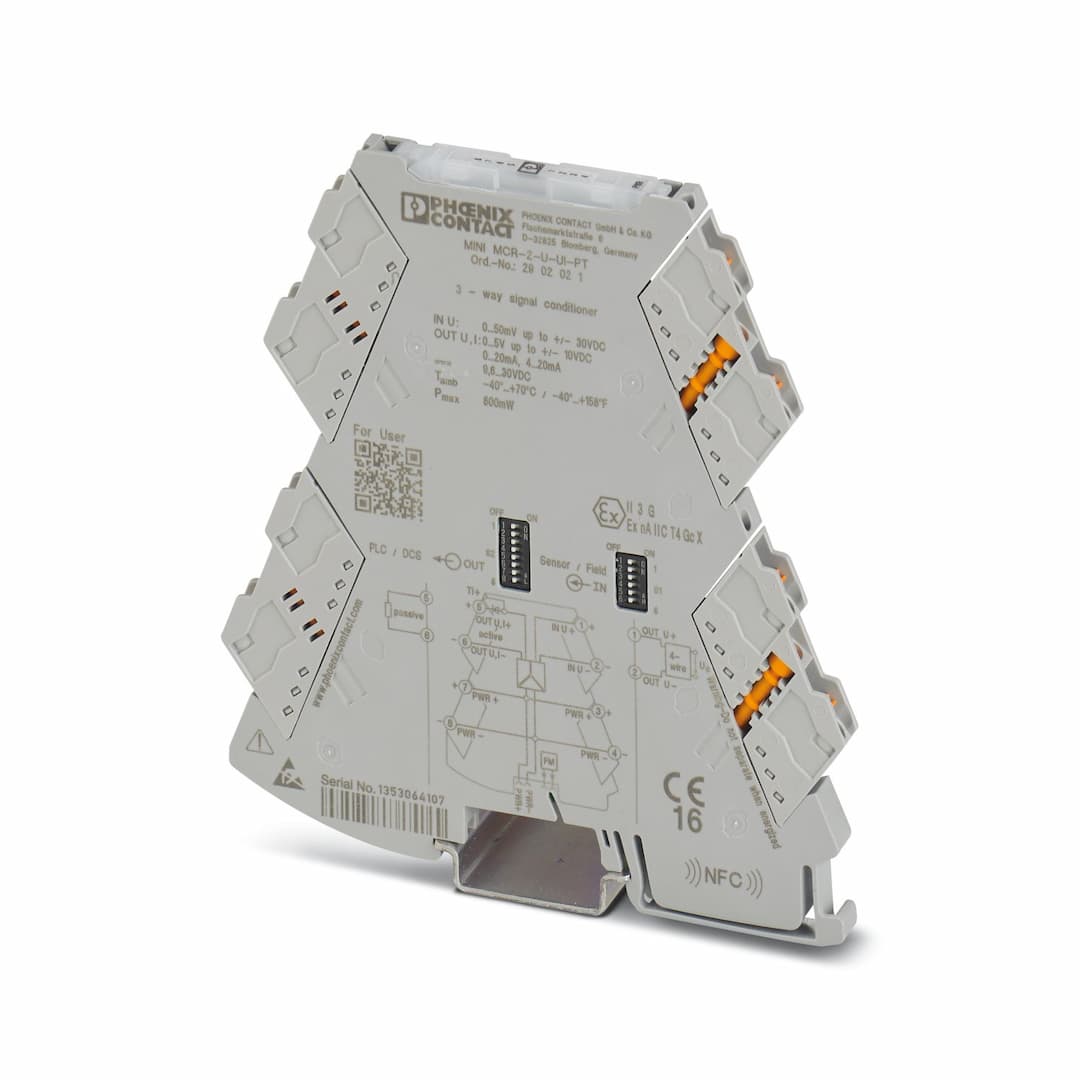

MINI MCR-2-U-UI-PT
Selling Points
- 1Adjust voltage and current signals via DIP switches for versatile application.
- 2Ensure safe operation with reinforced insulation and transient protection.
- 3Convert analog signals in the mV and V range with minimal error.
- 4Withstand harsh industrial conditions, including temperatures from -40°C to 85°C.
- 5Snap onto a 35 mm DIN rail for easy integration into your system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Signal conditioner |
Product family | MINI Analog Pro | No. of channels | 1 |
Type | Signal conditioner | Configuration | DIP switches |
Article revision | 06 | Overvoltage category | II |
Pollution degree | 2 | Electrical isolation | 3-way isolation |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | 30 Hz (via DIP switch)
5 kHz (via DIP switch) |
Protective circuit | Transient protection | Step response (10-90%) | < 8.5 ms (with 30 Hz filter) |
Maximum temperature coefficient | 0.01 %/K | Maximum transmission error | ≤ 0.1 % (of final value) |
Rated insulation voltage | 300 V | Test voltage | 3 kV AC (50 Hz, 60 s) |
Insulation | Reinforced insulation according to IEC/EN 61010-1 | Nominal supply voltage | 24 V DC |
Supply voltage range | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Typical current consumption | 25 mA (Current output, at 24 V DC incl. load)
54 mA (Current output, at 12 V DC incl. load) |
Power consumption | ≤ 800 mW (at I | Number of inputs | 1 |
Configurable/programmable | Yes | Input signal | Voltage |
Voltage input signal | -50 mV ... 50 mV (via DIP switch)
0 mV ... 50 mV (via DIP switch)
-60 mV ... 60 mV (via DIP switch)
0 mV ... 60 mV (via DIP switch)
-75 mV ... 75 mV (via DIP switch)
0 mV ... 75 mV (via DIP switch)
-80 mV ... 80 mV (via DIP switch)
0 mV ... 80 mV (via DIP switch)
-100 mV ... 100 mV (via DIP switch)
0 mV ... 100 mV (via DIP switch)
-120 mV ... 120 mV (via DIP switch)
0 mV ... 120 mV (via DIP switch)
-150 mV ... 150 mV (via DIP switch)
0 mV ... 150 mV (via DIP switch)
-200 mV ... 200 mV (via DIP switch)
0 mV ... 200 mV (via DIP switch)
-240 mV ... 240 mV (via DIP switch)
0 mV ... 240 mV (via DIP switch)
-300 mV ... 300 mV (via DIP switch)
0 mV ... 300 mV (via DIP switch)
-500 mV ... 500 mV (via DIP switch)
0 mV ... 500 mV (via DIP switch)
-600 mV ... 600 mV (via DIP switch)
0 mV ... 600 mV (via DIP switch)
-750 mV ... 750 mV (via DIP switch)
0 mV ... 750 mV (via DIP switch)
-800 mV ... 800 mV (via DIP switch)
0 mV ... 800 mV (via DIP switch)
-1 V ... 1 V (via DIP switch)
0 V ... 1 V (via DIP switch)
-1.2 V ... 1.2 V (via DIP switch)
0 V ... 1.2 V (via DIP switch)
-1.5 V ... 1.5 V (via DIP switch)
0 V ... 1.5 V (via DIP switch)
-2 V ... 2 V (via DIP switch)
0 V ... 2 V (via DIP switch)
-2.4 V ... 2.4 V (via DIP switch)
0 V ... 2.4 V (via DIP switch)
-3 V ... 3 V (via DIP switch)
0 V ... 3 V (via DIP switch)
-5 V ... 5 V (via DIP switch)
0 V ... 5 V (via DIP switch)
-6 V ... 6 V (via DIP switch)
0 V ... 6 V (via DIP switch)
-7.5 V ... 7.5 V (via DIP switch)
0 V ... 7.5 V (via DIP switch)
-8 V ... 8 V (via DIP switch)
0 V ... 8 V (via DIP switch)
-10 V ... 10 V (via DIP switch)
0 V ... 10 V (via DIP switch)
-12 V ... 12 V (via DIP switch)
0 V ... 12 V (via DIP switch)
-15 V ... 15 V (via DIP switch)
0 V ... 15 V (via DIP switch)
-20 V ... 20 V (via DIP switch)
0 V ... 20 V (via DIP switch)
-24 V ... 24 V (via DIP switch)
0 V ... 24 V (via DIP switch)
-30 V ... 30 V (via DIP switch)
0 V ... 30 V (via DIP switch) | Max. voltage input signal | 33 V |
Input resistance of voltage input | > 10 kΩ | Number of outputs | 1 |
Configurable/programmable | Yes | Voltage output signal | 0 V ... 5 V (via DIP switch)
1 V ... 5 V (via DIP switch)
-5 V ... 5 V (via DIP switch)
0 V ... 10 V (via DIP switch)
2 V ... 10 V (via DIP switch)
-10 V ... 10 V (via DIP switch) |
Non-load voltage | < 17 V | Current output signal | 0 mA ... 20 mA (via DIP switch)
4 mA ... 20 mA (via DIP switch) |
Max. current output signal | 22 mA | Short-circuit current | < 32 mA |
Load/output load voltage output | ≥ 10 kΩ | Load/output load current output | ≤ 600 Ω (at 20 mA) |
Ripple | < 20 mV
< 20 mV | Connection method | Push-in connection |
Stripping length | 10 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
Ex installation (EPL) | Gc
Div. 2 | Status display | Green LED (supply voltage) |
Width | 6.2 mm | Height | 109.81 mm |
Depth | 119.2 mm | Color | gray (RAL 7042) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 (not assessed by UL) | Ambient temperature (operation) | -40 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Identification | II 3 G Ex ec ic IIC T4 Gc |
Certificate | BVS 19 ATEX E 047 X | Identification | II 3 G Ex ec ic IIC T4 Gc |
Certificate | PxCIF21UKEX2902000X | Identification | Ex ec ic IIC T4 Gc |
Certificate | IECEx BVS 19.0041X | Identification | Ex nA ic IIC T4 Gc |
Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T6
Class I, Zone 2, Group IIC T6 | Certificate | DNV GL TAA00002UA |
Identification | 2Ex ec ic IIC T4 Gc | Certificate | BY/112 02.01 TP012 103.01 00079 |
Temperature | B | Humidity | B |
Vibration | A | EMC | A |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 | Standards/regulations | EN 61000-4-5 |
Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
Electrical isolation | 3-way isolation | Standards/regulations | GB 3836.1
GB 3836.4
GB 3836.8 |
Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
Mounting position | any |
Specifications may be subject to change without notice
