Product Model

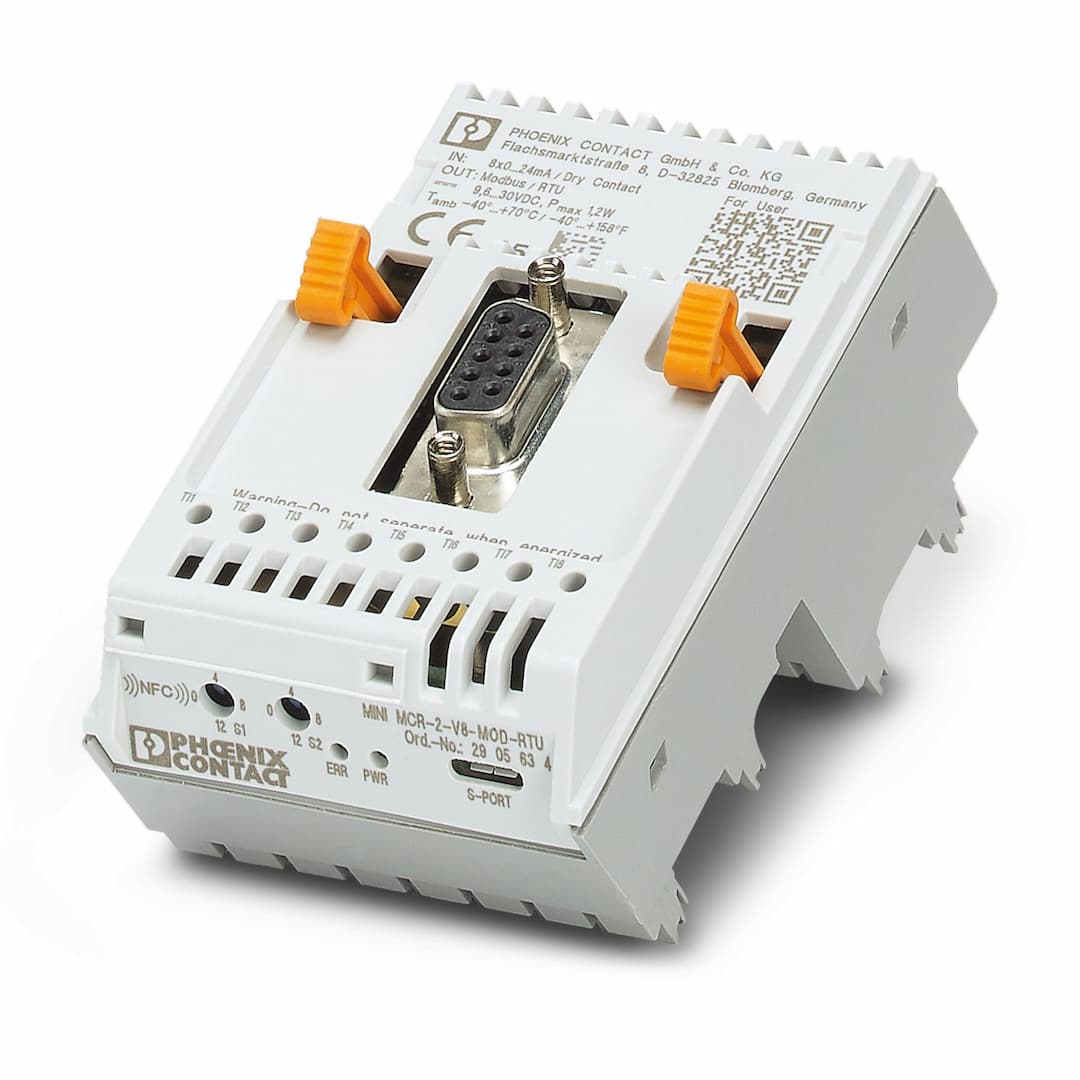

MINI MCR-2-V8-MOD-RTU
Selling Points
- 1Eight MINI Analog Pro signal conditioners for seamless integration.
- 2Quick and easy integration into Modbus/RTU networks.
- 3Configurable and programmable for custom applications.
- 4Supports current input signals from 4 mA to 20 mA.
- 5Compatible with industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Communication module |
Product family | MINI Analog Pro | Article revision | 03 |
Overvoltage category | II | Pollution degree | 2 |
Rated insulation voltage | 50 V | Test voltage, input/output/supply | 0.5 kV |
Maximum temperature coefficient | 0.01 % | Maximum transmission error | 0.1 % |
Nominal supply voltage range | 12 V ... 24 V | Supply voltage range | 9.6 V ... 30 V |
Typical current consumption | 110 mA (9.6 V DC) | Power consumption | < 1000 mW |
Available input sources | floating switch contact
Current source | Number of inputs | 8 |
Configurable/programmable | Yes | Current input signal | 4 mA ... 20 mA |
Maximum input current | 24 mA | Input resistance current input | 50 Ω |
Maximum input voltage | 5 V | Protocols supported | Modbus/RTU |
Number of outputs | 1 | Configurable/programmable | Yes |
Transmission speed | 1.2 kbps
2.4 kbps
4.8 kbps
9.6 kbps
19.2 kbps
38.4 kbps
57.6 kbps
115.2 kbps | Data update rate | 15 ms |
Connection method | D-SUB socket strip | Number of positions | 9 |
Ex installation (EPL) | Gc
Div. 2 | Status display | LED (green) |
Error indication | Red LED | Width | 51.1 mm |
Height | 104.1 mm | Depth | 56.8 mm |
Color | gray (RAL 7042) | Housing material | PBT 7% GF V0 |
Degree of protection | IP20 (Finger safety) | Ambient temperature (operation) | -40 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C | Altitude | 4000 m |
Permissible humidity (operation) | 5 % ... 95 % | Permissible humidity (storage/transport) | 5 % ... 95 % |
Certificate | CE-compliant | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | BVS 21 ATEX E 064 X | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | PxCIF21UKEX2905634X | Identification | Ex ec IIC T4 Gc |
Certificate | IECEx BVS 21.0071X | Identification | Ex ec IIC T4 Gc |
Certificate | 2022122308115724 | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T5
Class I, Zone 2, Group IIC T5 |
Identification | 2Ex ec IIC T4 Gc | Certificate | BY/112 02.01 TP012 103.01 00081 |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Standards/regulations | GB/T 3836.1
GB/T 3836.3 | Mounting type | Plug-on assembly |
Mounting position | any |
Specifications may be subject to change without notice
