Product Model

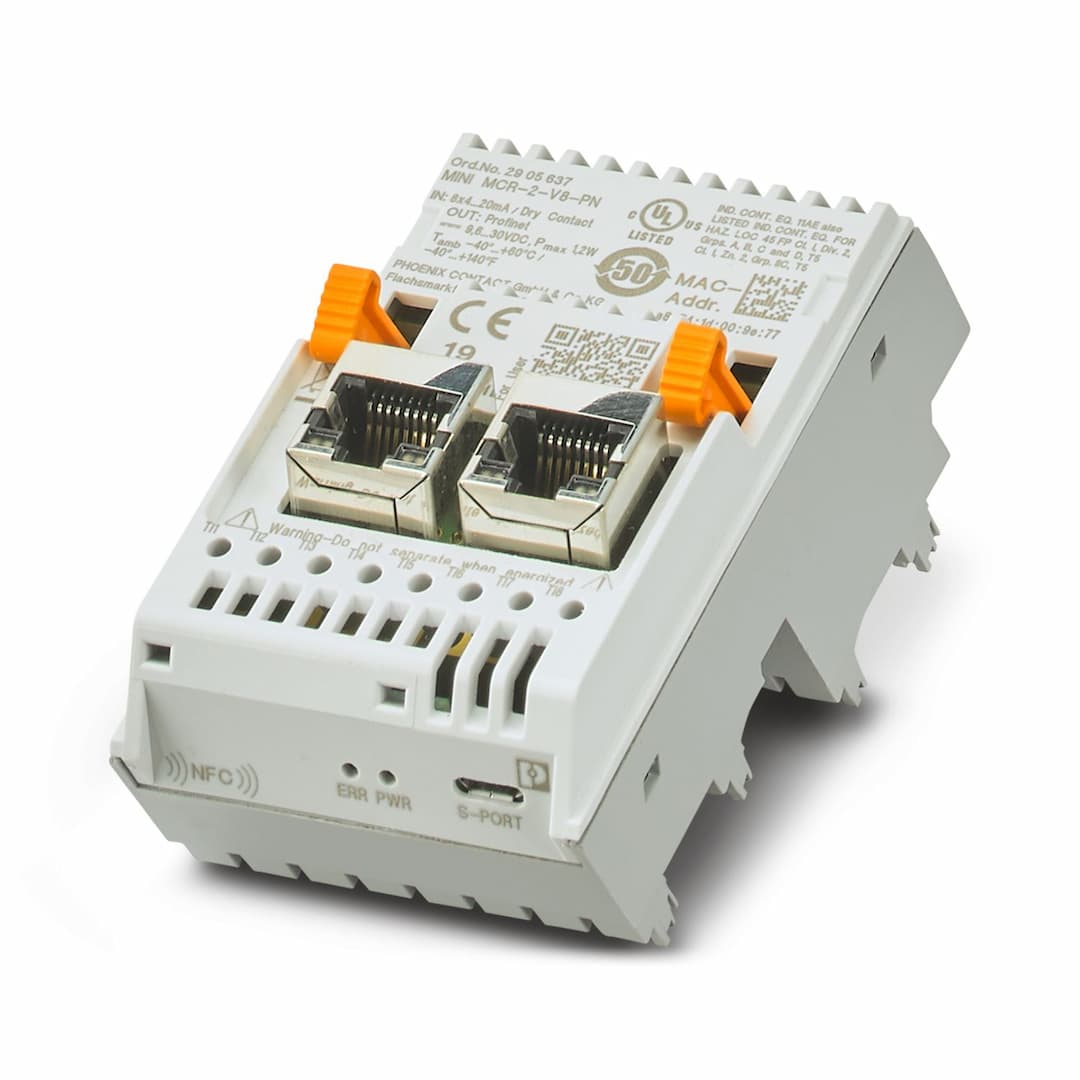

MINI MCR-2-V8-PN
Selling Points
- 1Efficient Integration: Quickly integrate eight MINI Analog Pro signal conditioners into a PROFINET network.
- 2Plug-in Technology: Innovative plug-in concept for time-saving wiring solutions.
- 3Flexible Signal Combinations: Eliminate the need for I/O input cards, saving space and money in control cabinets.
- 4Robust Design: Rated insulation voltage 50 Vrms, overvoltage category II, and pollution degree 2 for reliable operation.
- 5Compact Size: Dimensions: 51.1 mm width, 104.1 mm height, and 61 mm depth, ideal for compact installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Communication module | Product family | MINI Analog Pro |
Article revision | 04 | Overvoltage category | II |
Pollution degree | 2 | Rated insulation voltage | 50 V |
Test voltage, input/output/supply | 0.5 kV | Maximum temperature coefficient | 0.01 % |
Maximum transmission error | 0.1 % | Nominal supply voltage range | 12 V ... 24 V |
Supply voltage range | 9.6 V ... 30 V | Typical current consumption | 160 mA (at 9.6 V DC) |
Power consumption | < 1500 mW | Available input sources | floating switch contact
Current source |
Number of inputs | 8 | Configurable/programmable | Yes |
Current input signal | 4 mA ... 20 mA | Maximum input current | 24 mA |
Input resistance current input | 50 Ω | Maximum input voltage | 5 V |
Protocols supported | PROFINET RT | Note | CCC
MRP |
Number of outputs | 2 (Daisy-chaining outbound via port 2 possible) | Configurable/programmable | Yes |
Transmission speed | 100 Mbps | Data update rate | 15 ms |
Connection method | RJ45 | Number of positions | 8 |
Ex installation (EPL) | Gc
Div. 2 | Status display | LED (green) |
Error indication | Red LED | Width | 51.1 mm |
Height | 104.1 mm | Depth | 61 mm |
Color | gray (RAL 7042) | Housing material | PBT 7% GF V0 |
Degree of protection | IP20 (Finger safety) | Ambient temperature (operation) | -40 °C ... 55 °C |
Ambient temperature (storage/transport) | -40 °C ... 70 °C | Altitude | 4000 m |
Permissible humidity (operation) | 5 % ... 95 % | Permissible humidity (storage/transport) | 5 % ... 95 % |
Certificate | CE-compliant | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | BVS 21 ATEX E 064 X | Identification | II 3 G Ex ec IIC T4 Gc |
Certificate | PxCIF21UKEX2905634X | Identification | Ex ec IIC T4 Gc |
Certificate | IECEx BVS 21.0071X | Identification | Ex ec IIC T4 Gc |
Certificate | 2022122308115724 | Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC T4 |
Identification | 2Ex ec IIC T4 Gc | Certificate | BY/112 02.01 TP012 103.01 00081 |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Standards/regulations | GB/T 3836.1
GB/T 3836.3 | Mounting type | Plug-on assembly |
Mounting position | any |
Specifications may be subject to change without notice
