Product Model

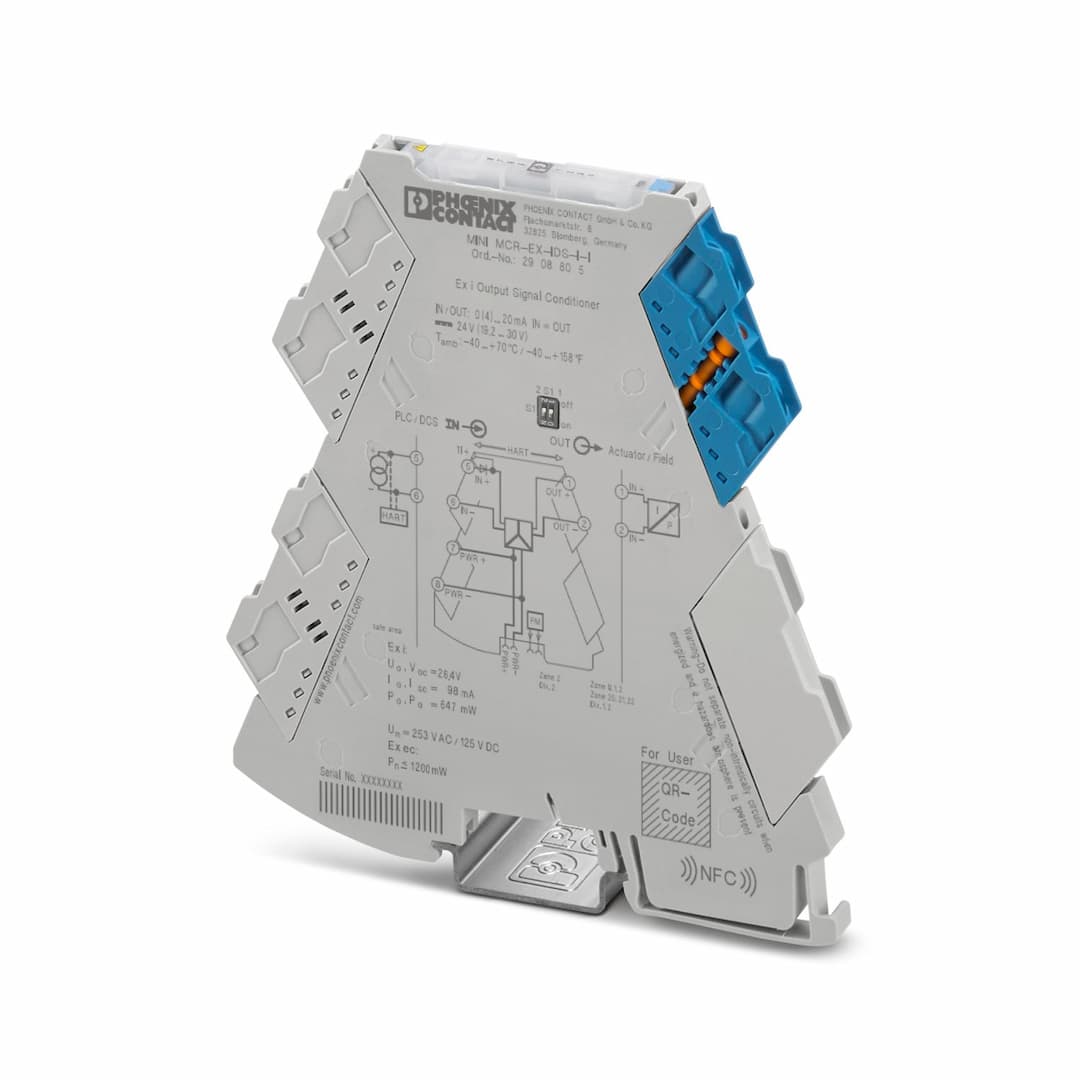

MINI MCR-EX-IDS-I-I
Selling Points
- 1Ensures safe transmission of 0/4 mA to 20 mA signals in Ex areas.
- 2Supports HART communication for overlaying digital signals with analog measuring values.
- 3Provides robust electrical isolation for safe operation.
- 4Monitors for open-circuit and short-circuit conditions, switchable via DIP switch.
- 5Adhesive mounting, suitable for DIN rail installation with push-in connectors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Output signal conditioner | Product family | MINI Analog Pro |
Configuration | DIP switches | Article revision | 03 |
Configuration | DIP switches | Signal transmission behavior | In = Out |
Step response (10-90%) | ≤ 10 ms | Maximum temperature coefficient | ≤ 0.01 % |
Maximum transmission error | 0.1 % | Overvoltage category | II (≤ 5000 m) |
Pollution degree | 2 (≤ 5000 m) | Standards/regulations | IEC/EN 61010-1 |
Rated insulation voltage | 300 V | Test voltage | 2.5 kV AC (50 Hz, 60 s) |
Insulation | Double/reinforced insulation | Standards/regulations | IEC/EN 60079-11 |
Rated insulation voltage | 253 V | Standards/regulations | IEC/EN 60079-7 |
Rated insulation voltage | 251 V | Nominal supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC | Power consumption | ≤ 1.2 W |
Number of inputs | 1 | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA (SIL) |
Input current | ≤ 30 mA | Voltage drop | < 3.5 V DC (20 mA) |
Output description | intrinsically safe | Number of outputs | 1 |
Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA (SIL) | Load/output load current output | ≤ 700 Ω (20 mA)
≤ 630 Ω (21 mA) |
Output ripple | 20 mV (rms) | Non-load voltage | ≤ 27 V DC |
Short-circuit-proof | yes | Line fault detection | > 10 kΩ (Line break)
< 50 Ω (Short circuit) |
Connection method | Screw connection | Stripping length | 10 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 1.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) |
Conductor cross section flexible | 0.14 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 (flexible) |
Tightening torque | 0.5 Nm ... 0.6 Nm | Ex installation (EPL) | Gc
Div. 2 |
Ex i circuits (EPL) | Ga
Da
Ma
Div. 1 | Max. internal inductance L | negligible |
Max. internal capacitance C | 7 nF | Max. output voltage U | 26.4 V |
Max. output current I | 98 mA | Max. output power P | 647 mW |
Safety-related maximum voltage U | 253 V AC
125 V DC | IIA/I (simple circuit): Max. external inductivity L | 10 mH / 2.48 µF |
IIB/III (simple circuit): Max. external inductivity L | 4 mH / 730 nF | IIC (simple circuit): Max. external inductivity L | 2 mH / 89 nF |
IIA/I (mixed circuit): Max. external inductivity L | 10 mH / 493 nF, 1 mH / 553 nF, 500 µH / 653 nF, 200 µH / 833 nF, 100 µH / 993 nF | IIB/III (mixed circuit): Max. external inductivity L | 4 mH / 303 nF, 1 mH / 383 nF, 500 µH / 463 nF, 200 µH / 613 nF, 100 µH / 733 nF |
IIC (mixed circuit): Max. external inductivity L | 1.4 mH / 42 nF, 1 mH / 49 nF, 500 µH / 66 nF, 200 µH / 89 nF | Protocols supported | HART-transparent |
Status display | Green LED (supply voltage) | Width | 6.2 mm |
Height | 109.81 mm | Depth | 119.2 mm |
Color | gray (RAL 7042) | Housing material | PBT |
Ambient temperature (operation) | -40 °C ... 70 °C (Any mounting position) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (at 25 °C, non-condensing) | Shock (operation) | 15g (DIN EN 60068-2-27) |
Vibration (operation) | 5g (DIN EN 60068-2-6) | Height range | > 2000 m ... 3000 m |
Ambient temperature (operation) | -40 °C ... 63 °C | Rated insulation voltage | 300 V |
Insulation | Double/reinforced insulation | Height range | > 3000 m ... 4000 m |
Ambient temperature (operation) | -40 °C ... 56 °C | Rated insulation voltage | 300 V |
Insulation | Double/reinforced insulation | Height range | > 4000 m ... 5000 m |
Ambient temperature (operation) | -40 °C ... 49 °C | Rated insulation voltage | 150 V |
Insulation | Double/reinforced insulation | Height range | > 2000 m ... 3000 m |
Ambient temperature (operation) | -40 °C ... 63 °C | Safety-related maximum voltage U | 121 V AC
110 V DC |
Rated insulation voltage | 150 V | Height range | > 3000 m ... 4000 m |
Ambient temperature (operation) | -40 °C ... 56 °C | Safety-related maximum voltage U | 33 V AC/DC |
Rated insulation voltage | 60 V | Height range | > 4000 m ... 5000 m |
Ambient temperature (operation) | -40 °C ... 49 °C | Safety-related maximum voltage U | 33 V AC/DC |
Rated insulation voltage | 60 V | Height range | > 2000 m ... 3000 m |
Ambient temperature (operation) | -40 °C ... 63 °C | Rated insulation voltage | 162 V |
Height range | > 3000 m ... 4000 m | Ambient temperature (operation) | -40 °C ... 56 °C |
Rated insulation voltage | 60 V | Height range | > 4000 m ... 5000 m |
Ambient temperature (operation) | -40 °C ... 49 °C | Rated insulation voltage | 60 V |
Certificate | CE-compliant | Identification | II (1) G [Ex ia Ga] IIC
II (1) D [Ex ia Da] IIIC
II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
I (M1) [Ex ia Ma] I |
Certificate | BVS 23 ATEX 006 X | Identification | [Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex ec [ia Ga] IIC T4 Gc
[Ex ia Ma] I |
Certificate | IECEx BVS 23.0003X | Identification | UL 61010-2-201 |
Identification | 3 | Note | Single-channel |
Electromagnetic compatibility | Tested in accordance with the following standards and regulations: EN 61326-1 For industrial use, NAMUR NE 21 | Low Voltage Directive | Conformance with Low Voltage Directive |
Noise immunity | EN 61000-6-2
EN 61326-3-2 | Noise emission | EN 61000-6-4 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
