Product Model

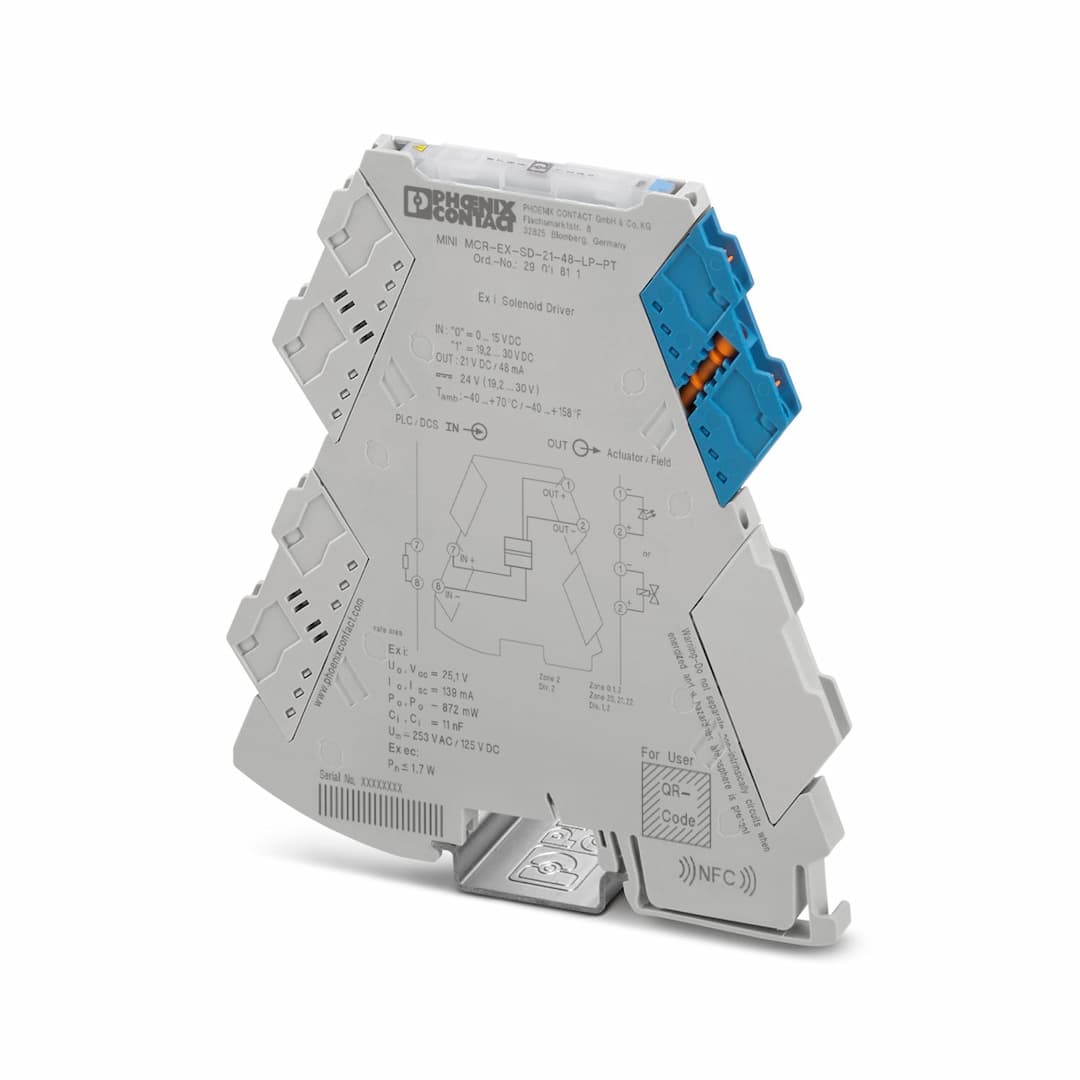

MINI MCR-EX-SD-21-48-LP-PT
Selling Points
- 1Operates safely in hazardous environments.
- 2Miniature size with robust performance.
- 3Simple setup for Ex i solenoid valve control.
- 4Precise current limitation at 48 mA.
- 5Suitable for various industrial control applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Solenoid driver | Product family | MINI Analog Pro |
Article revision | 02 | Overvoltage category | II (≤ 5000 m) |
Pollution degree | 2 (≤ 5000 m) | Standards/regulations | IEC/EN 61010-1 |
Rated insulation voltage | 300 V | Test voltage | 2.5 kV AC (50 Hz, 60 s) |
Insulation | Double/reinforced insulation | Standards/regulations | IEC/EN 60079-11 |
Rated insulation voltage | 265 V | Standards/regulations | IEC/EN 60079-7 |
Rated insulation voltage | 251 V | Supply voltage range | loop-powered, no external supply necessary |
Power consumption | < 1.7 W | Number of inputs | 1 |
Voltage input signal | 19.2 V DC ... 30 V DC (24 V DC, -20 % ... +25 %) | Number of outputs | 1 |
Output voltage | ≥ 12.2 V DC (48 mA) | Output resistor | ≥ 181 Ω (Internal resistance R |
Current limitation | > 48 mA | Response time | < 50 ms |
Non-load voltage | > 21 V DC | Short-circuit-proof | yes |
Connection method | Push-in connection | Stripping length | 10 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² (with ferrule)
0.14 mm² ... 2.5 mm² (without ferrule) | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 (flexible) | Ex installation (EPL) | Gc
Div. 2 |
Ex i circuits (EPL) | Ga
Da
Ma
Div. 1 | Max. internal inductance L | negligible |
Max. internal capacitance C | 11 nF | Max. output voltage U | 25.1 V |
Max. output current I | 139 mA | Max. output power P | 872 mW |
Safety-related maximum voltage U | 253 V AC
125 V DC | IIA (simple circuit): Max. external inductivity L | 10 mH / 2.92 µF |
IIB/IIIC (simple circuit): Max. external inductivity L | 5 mH / 819 nF | IIC (simple circuit): Max. external inductivity L | 1.5 mH / 97 nF |
I (simple circuit): Max. external inductivity L | 15 mH / 4.84 µF | Width | 6.2 mm |
Height | 109.81 mm | Depth | 119.2 mm |
Color | gray (RAL 7042) | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Height range | > 2000 m ... 3000 m |
Ambient temperature (operation) | -40 °C ... 63 °C | Rated insulation voltage | 300 V |
Insulation | Double/reinforced insulation | Height range | > 3000 m ... 4000 m |
Ambient temperature (operation) | -40 °C ... 56 °C | Rated insulation voltage | 300 V |
Insulation | Double/reinforced insulation | Height range | > 4000 m ... 5000 m |
Ambient temperature (operation) | -40 °C ... 49 °C | Rated insulation voltage | 150 V |
Insulation | Double/reinforced insulation | Height range | > 2000 m ... 3000 m |
Ambient temperature (operation) | -40 °C ... 63 °C | Safety-related maximum voltage U | 121 V AC
110 V DC |
Rated insulation voltage | 150 V | Height range | > 3000 m ... 4000 m |
Ambient temperature (operation) | -40 °C ... 56 °C | Safety-related maximum voltage U | 33 V AC/DC |
Rated insulation voltage | 60 V | Height range | > 4000 m ... 5000 m |
Ambient temperature (operation) | -40 °C ... 49 °C | Safety-related maximum voltage U | 33 V AC/DC |
Rated insulation voltage | 60 V | Height range | > 2000 m ... 3000 m |
Ambient temperature (operation) | -40 °C ... 63 °C | Rated insulation voltage | 162 V |
Height range | > 3000 m ... 4000 m | Ambient temperature (operation) | -40 °C ... 56 °C |
Rated insulation voltage | 60 V | Height range | > 4000 m ... 5000 m |
Ambient temperature (operation) | -40 °C ... 49 °C | Rated insulation voltage | 60 V |
Certificate | CE-compliant | Identification | II (1) G [Ex ia Ga] IIC
II (1) D [Ex ia Da] IIIC
II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
I (M1) [Ex ia Ma] I |
Certificate | TÜV 21 ATEX 8651 X | Identification | [Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex ec [ia Ga] IIC T4 Gc
[Ex ia Ma] I |
Certificate | IECEx TUR 21.0043 X | Identification | II (1) G [Ex ia Ga] IIC
II (1) D [Ex ia Da] IIIC
II 3 (1) G Ex ec [ia Ga] IIC T4 Gc
I (M1) [Ex ia Ma] I |
Certificate | TÜV 21 UKEX 7021 X | Identification | [Ex ia Ga] IIC
[Ex ia Da] IIIC
Ex ec [ia Ga] IIC T4 Gc |
Certificate | 2023122310116238 | Identification | UL 61010-2-201 |
Identification | 3 | Electromagnetic compatibility | Tested in accordance with the following standards and regulations: EN 61326-1 For industrial use, NAMUR NE 21 |
Noise immunity | IEC/EN 61000-6-2
IEC/EN 61326-3-2 | Noise emission | IEC/EN 61000-6-4 |
Standards/regulations | GB/T 3836.1
GB/T 3836.3
GB/T 3836.4 | Mounting type | DIN rail mounting |
Specifications may be subject to change without notice
