Product Model

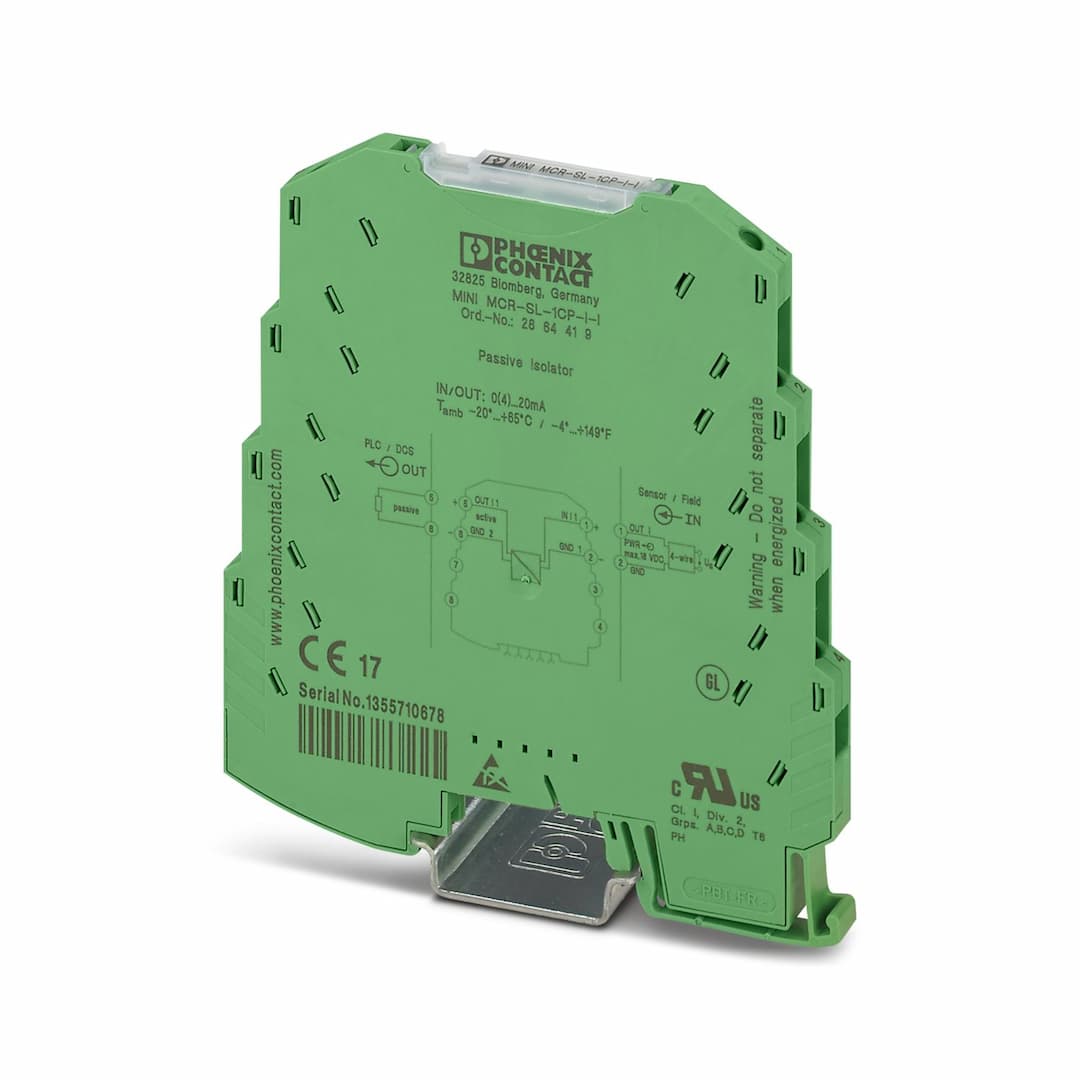

MINI MCR-SL-1CP-I-I
Selling Points
- 1Provides 2-way isolation between input and output, ensuring safe and reliable signal transmission.
- 2Measuring just 6.2 mm in width, these isolators are highly compact and suitable for space-constrained applications.
- 3Does not require additional auxiliary voltage, supplied by the input loop, making it energy-efficient.
- 4Features a maximum transmission error of ≤0.1% and a step response of 5 ms at 600 Ω load, ensuring precise signal transmission.
- 5Meets overvoltage category II and pollution degree 2 standards, ensuring compliance with safety regulations in potentially explosive areas.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Passive separator | Product family | MINI Analog |
No. of channels | 1 | Article revision | 08 |
Overvoltage category | II | Pollution degree | 2 |
Electrical isolation | 2-way isolation | Electrical isolation between input and output | yes |
Limit frequency (3 dB) | 75 Hz | Cold junction errors | ≤ |
Typical cold point errors | ≤ | Maximum power dissipation for nominal condition | 34 mW |
Signal transmission behavior | In = Out | Step response (10-90%) | 5 ms (at 600 Ω load) |
Maximum temperature coefficient | ≤ 0.002 %/K (of measured value / 100 Ω load) | Temperature coefficient, typical | < 0.002 %/K (of measured value / 100 Ω load) |
Maximum transmission error | ≤ 0.1 % (of final value) | Additional error, load-dependent | < 0.03 % (of measured value / 100 Ω load) |
Rated insulation voltage | 50 V AC/DC | Test voltage | 1.5 kV AC (50 Hz, 60 s) |
Insulation | Basic insulation in accordance with IEC/EN 61010 | Supply voltage range | loop-powered, no external supply necessary |
Power consumption | 34 mW | Number of inputs | 1 |
Configurable/programmable | no | Max. voltage input signal | 18 V |
Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA | Max. current input signal | 40 mA |
Response current | approx. 190 µA | Input voltage limitation | < 2 V (20 mA) |
Voltage dissipation | 1.9 V (I = 20 mA) | Number of outputs | 1 |
Configurable/programmable | no | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Load/output load current output | < 600 Ω (at I = 20 mA output signal) | Ripple | < 10 mV |
Connection method | Screw connection | Stripping length | 12 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 12 |
Width | 6.2 mm | Height | 93.1 mm |
Depth | 101.2 mm | Color | green (RAL 6021) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Certificate | UKCA-compliant | Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D |
Certificate | DNV GL TAA00000BW | Temperature | B |
Humidity | B | Vibration | B |
EMC | B | Enclosure | A |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Standards/regulations | EN 61000-4-2 | Comments | Criterion B |
Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
Evaluation criterion | A | Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 | Evaluation criterion | B |
Standards/regulations | EN 61000-4-5 | Comments | Criterion B |
Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
Evaluation criterion | A | Electrical isolation | 2-way isolation |
Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
Mounting position | any |
