Product Model

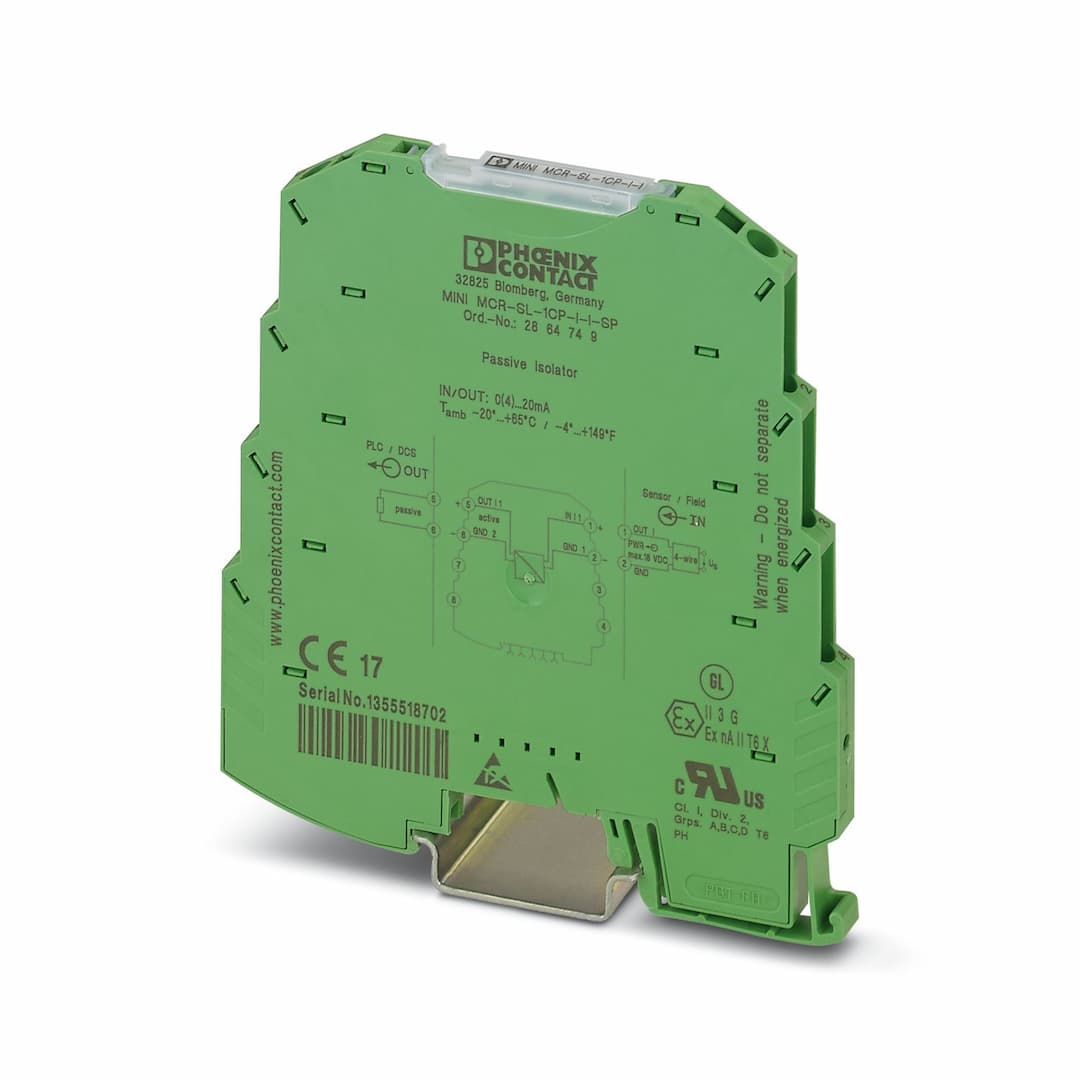

MINI MCR-SL-1CP-I-I-SP
Selling Points
- 1Basic insulation according to EN 61010 for safe signal transmission.
- 26.2 mm narrow width, ideal for space-constrained applications.
- 3Supplied by the input loop, eliminating the need for auxiliary voltage.
- 4Maximum transmission error ≤ 0.1% and temperature coefficient ≤ 0.002%/K.
- 5Rated insulation voltage 50 V AC/DC and test voltage 1.5 kV (50 Hz, 1 min.).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Passive separator | Product family | MINI Analog |
No. of channels | 1 | Article revision | 06 |
Overvoltage category | II | Pollution degree | 2 |
Rated insulation voltage | 50 V AC/DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | 75 Hz |
Maximum power dissipation for nominal condition | 34 mW | Test voltage input/output | 1.5 kV AC (50 Hz, 60 s) |
Test voltage channel/channel | 1.5 kV AC (50 Hz, 60 s) | Signal transmission behavior | In = Out |
Step response (10-90%) | 5 ms (at 600 Ω load) | Maximum temperature coefficient | ≤ 0.002 %/K (of measured value / 100 Ω load) |
Temperature coefficient, typical | < 0.002 %/K (of measured value / 100 Ω load) | Maximum transmission error | ≤ 0.1 % (of final value) |
Additional error, load-dependent | < 0.03 % (of measured value / 100 Ω load) | Supply voltage range | loop-powered, no external supply necessary |
Power consumption | 34 mW | Description of the input | Current input |
Number of inputs | 1 | Configurable/programmable | no |
Max. voltage input signal | 18 V | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Max. current input signal | 40 mA | Response current | approx. 190 µA |
Input voltage limitation | < 2 V (20 mA) | Voltage dissipation | 1.9 V (I = 20 mA) |
Number of outputs | 1 | Configurable/programmable | no |
Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA | Load/output load current output | < 600 Ω (at I = 20 mA output signal) |
Ripple | < 10 mV | Connection method | Spring-cage connection |
Stripping length | 8 mm | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Width | 6.2 mm | Height | 93.1 mm |
Depth | 102.5 mm | Color | green (RAL 6021) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Certificate | CE-compliant |
Identification | II 3 G Ex nA II T6 X | Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D |
Identification | GL EMC 2 D | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Criterion B | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Evaluation criterion | A |
Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
Evaluation criterion | B | Standards/regulations | EN 61000-4-5 |
Comments | Criterion B | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Evaluation criterion | A |
Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
