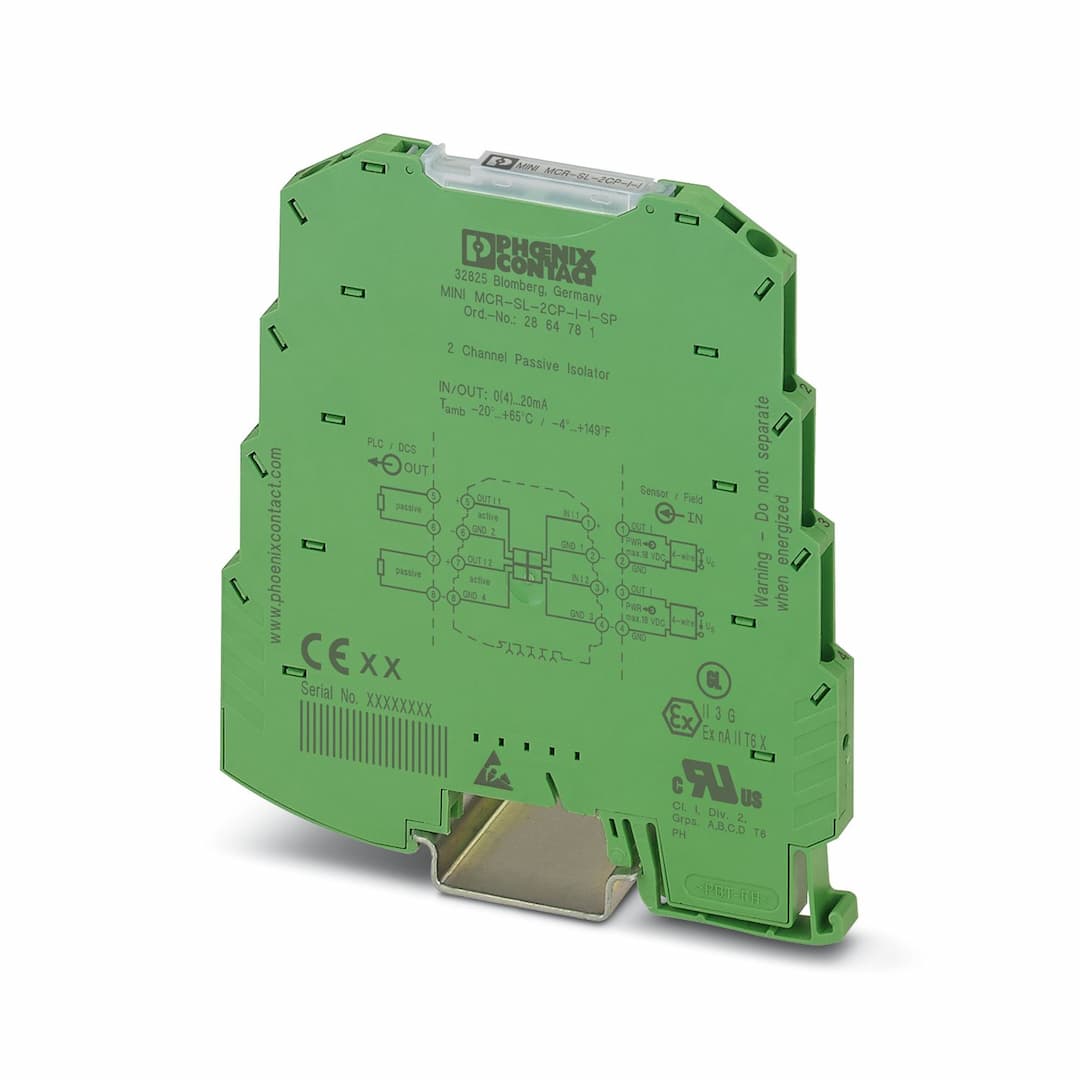

Phoenix Contact MINI MCR-SL-2CP-I-I-SP

Selling Points

  • 16.2 mm wide and 93.1 mm high, ideal for space-constrained applications.
  • 2No separate supply voltage required, ensuring efficient use of power.
  • 3Maximum transmission error ≤ 0.1% and step response of 5 ms at 600 Ω load.
  • 4Basic insulation according to EN 61010 and surge voltage category II for enhanced safety.
  • 5Spring-cage connection with conductor cross sections from 0.2 mm² to 2.5 mm² for flexible wiring options.
Product Details
MINI MCR-SL-2CP-I-I-SP
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Passive separator
Product family
MINI Analog
No. of channels
2
Article revision
07
Overvoltage category
II
Pollution degree
2
Rated insulation voltage
50 V AC/DC
Electrical isolation
Basic insulation in accordance with EN 61010
Electrical isolation between input and output
yes
Limit frequency (3 dB)
75 Hz
Test voltage input/output
1.5 kV AC (50 Hz, 60 s)
Test voltage channel/channel
1.5 kV AC (50 Hz, 60 s)
Signal transmission behavior
In = Out
Step response (10-90%)
5 ms (at 600 Ω load)
Maximum temperature coefficient
≤ 0.002 %/K (of measured value / 100 Ω load)
Temperature coefficient, typical
< 0.002 %/K (of measured value / 100 Ω load)
Maximum transmission error
≤ 0.1 % (of final value)
Additional error, load-dependent
< 0.03 % (of measured value / 100 Ω load)
Supply voltage range
loop-powered, no external supply necessary
Power consumption
34 mW (per channel)
Description of the input
Current input
Number of inputs
2
Configurable/programmable
no
Max. voltage input signal
18 V
Current input signal
0 mA ... 20 mA 4 mA ... 20 mA
Max. current input signal
40 mA
Response current
approx. 190 µA
Input voltage limitation
< 2 V (20 mA)
Voltage dissipation
1.9 V (I = 20 mA)
Number of outputs
2
Configurable/programmable
no
Current output signal
0 mA ... 20 mA 4 mA ... 20 mA
Load/output load current output
< 600 Ω (at I = 20 mA output signal)
Ripple
< 10 mV
Connection method
Spring-cage connection
Stripping length
8 mm
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Width
6.2 mm
Height
93.1 mm
Depth
102.5 mm
Color
green (RAL 6021)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Certificate
CE-compliant
Identification
 II 3 G Ex nA II T6 X
Identification
UL 508 Recognized Class I, Div. 2, Groups A, B, C, D
Identification
GL EMC 2 D
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Comments
Criterion B
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Evaluation criterion
A
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Evaluation criterion
B
Standards/regulations
EN 61000-4-5
Comments
Criterion B
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Evaluation criterion
A
Electrical isolation
Basic insulation in accordance with EN 61010
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any
