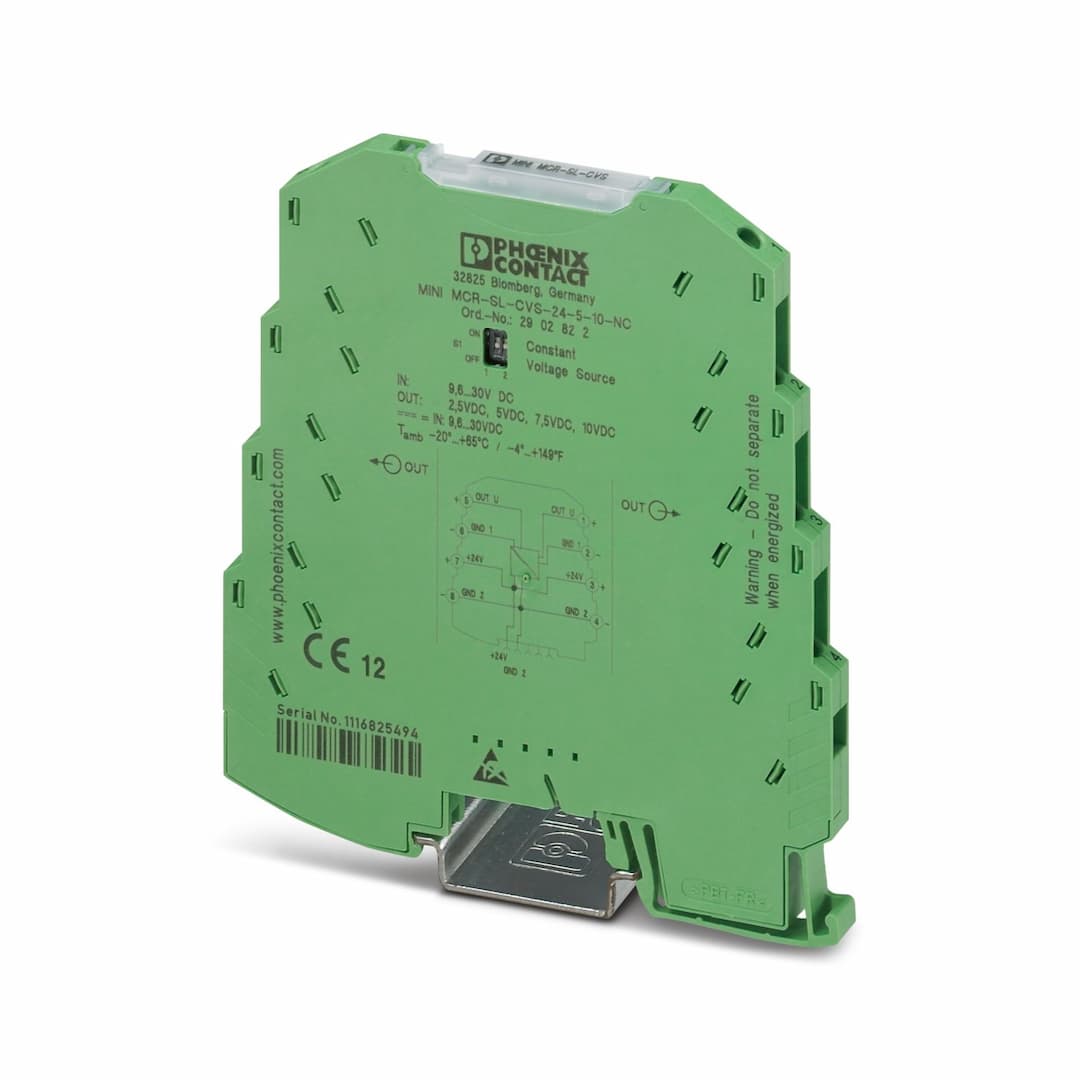

Phoenix Contact MINI MCR-SL-CVS-24-5-10-NC

Selling Points

  • 1Configurable via DIP switches: Easily set output voltages to 10 V, 7.5 V, 5 V, or 2.5 V DC.
  • 2High Precision Output: Achieve ±300 mV setting range for precise voltage control.
  • 3Electrically Isolated: Ensure safe operation with a rated insulation voltage of 50 V AC/DC.
  • 4Versatile Input Range: Operate with input voltages between 9.6 V DC and 30 V DC.
  • 5Compact Design: Measuring 6.2 mm wide, 93.1 mm high, and 101.2 mm deep, ideal for space-constrained applications.
Product Details
MINI MCR-SL-CVS-24-5-10-NC
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Constant voltage source
Product family
MINI Analog
Configuration
DIP switches
Article revision
09
Overvoltage category
II
Pollution degree
2
Configuration
DIP switches
Setting range comparison
± 300 mV
Maximum power dissipation for nominal condition
300 mW
Maximum temperature coefficient
< 0.01 %/K
Temperature coefficient, typical
< 0.002 %/K
Maximum transmission error
≤ 0.1 % (of final value) ≤ 0.5 % (Without adjustment)
Rated insulation voltage
50 V AC/DC
Test voltage
1.5 kV AC (50 Hz, 60 s)
Insulation
Basic insulation in accordance with IEC/EN 61010
Nominal supply voltage
24 V DC
Supply voltage range
9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Max. current consumption
< 25 mA (10 V output with 30 mA load at 24 V DC IN) < 65 mA (10 V output with 30 mA load at 9.6 V DC IN) < 50 mA (10 V voltage output with 30 mA load at 12 V DC IN) < 20 mA (10 V voltage output with 30 mA load at 30 V DC IN)
Power consumption
< 600 mW (at 24 V IN) < 624 mW (at 9.6 V IN) < 564 mW (At 12 V IN) < 540 mW (at 30 V IN)
Voltage input signal
9.6 V DC ... 30 V DC
Configurable/programmable
Yes, preconfigured
Max. voltage output signal
10 V DC 7.5 V DC 5 V DC 2.5 V DC
Short-circuit current
approx. 32 mA
Output current
≤ 30 mA
Ripple
< 20 mV
Connection method
Screw connection
Stripping length
12 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
26 ... 12
Width
6.2 mm
Height
93.1 mm
Depth
101.2 mm
Color
green (RAL 6021)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Certificate
UKCA-compliant
Identification
UL 508 Listed Class I, Div. 2, Groups A, B, C, D T6 Class I, Zone 2, Group IIC
Certificate
DNV GL TAA00002R0
Temperature
B
Humidity
B
Vibration
B
EMC
B
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Comments
Safety measures must be taken to prevent electrostatic discharge.
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Typical deviation from the measuring range final value
3 %
Comments
Criterion A
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Typical deviation from the measuring range final value
3 %
Comments
Criterion B
Standards/regulations
EN 61000-4-5
Comments
Criterion B
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Typical deviation from the measuring range final value
0.5 %
Comments
Criterion A
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any

Specifications may be subject to change without notice
