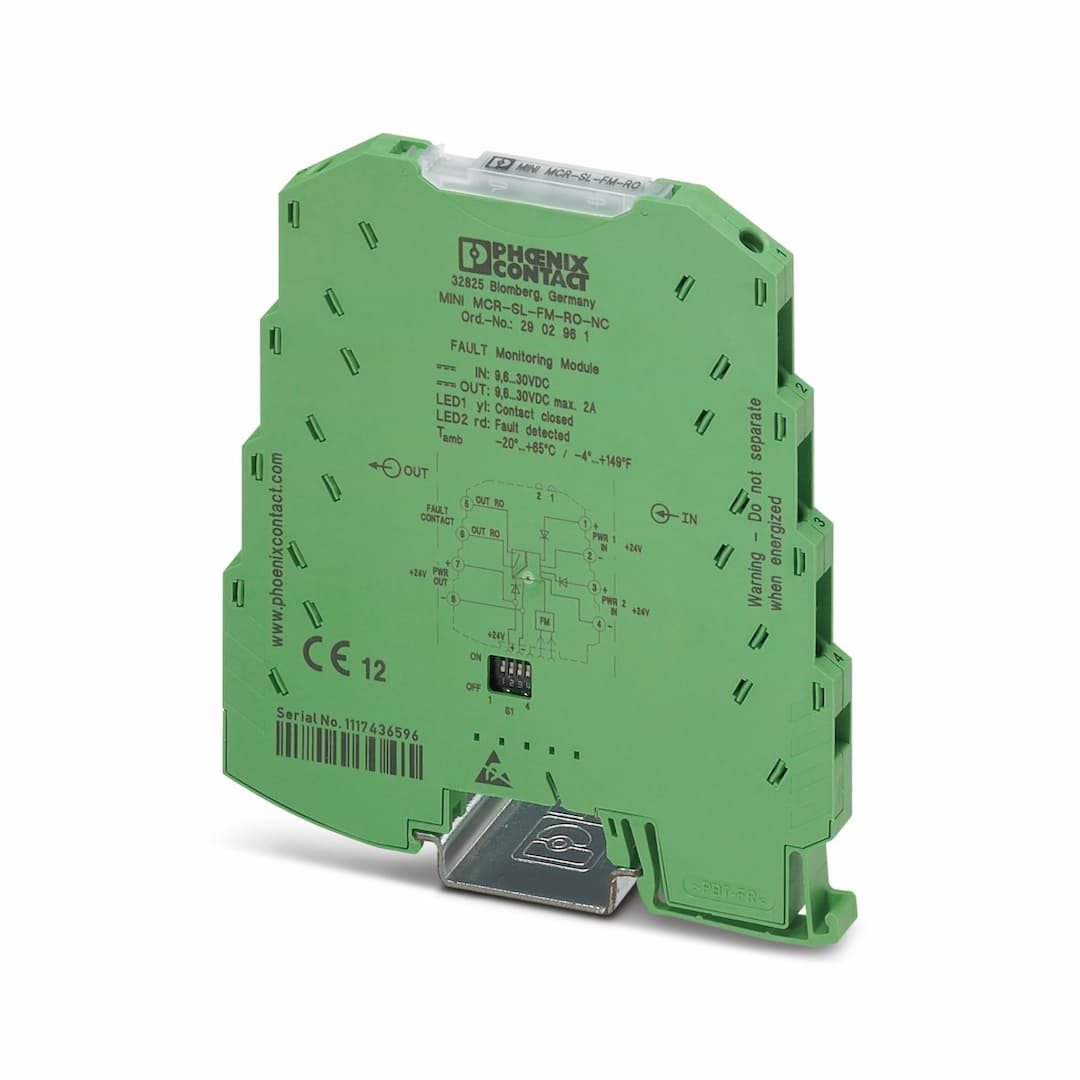

Phoenix MINI MCR-SL-FM-RC-NC Fault Monitoring Module

Selling Points

1Configurable via DIP switches and teach-in wheel for customizable settings.
2Supports up to 80 measuring transducers in a single group for comprehensive monitoring.
3Reports errors via N/O contact for reliable fault indication.
4Suitable for monitoring supply voltages and detecting errors in analog measuring transducers.
5Compact design with spring-cage connection for easy installation and space efficiency.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
EMC note	EMC: class A product, see manufacturer's declaration in the download area	Product type	Evaluation unit
Product family	MINI Analog	Configuration	DIP switches
Article revision	08	Overvoltage category	II
Pollution degree	2	Configuration	DIP switches
Maximum temperature coefficient	< 0.01 %/K	Electrical isolation	Input, power supply and output to the switching output
Rated insulation voltage	50 V AC/DC	Test voltage	1.5 kV AC (50 Hz, 60 s)
Insulation	Basic insulation in accordance with IEC/EN 61010	Supply voltage range	9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Max. current consumption	< 5 mA (at 24 V DC)	Power consumption	< 120 mW (at 24 V DC)
Description of the input	Voltage input for redundancy monitoring	Voltage input signal	9.6 V DC ... 30 V DC
Maximum switching voltage	30 V AC/DC	Max. switching current	50 mA
Voltage output signal	8.8 V DC ... 29.2 V DC	Max. current output signal	2 A
Connection method	Screw connection	Stripping length	12 mm
Screw thread	M3	Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²	Conductor cross section AWG	26 ... 12
Status display	Yellow LED (switching output)	Error indication	Red LED
Width	6.2 mm	Height	93.1 mm
Depth	101.2 mm	Color	green (RAL 6021)
Housing material	PBT	Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2	Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2
Degree of protection	IP20	Ambient temperature (operation)	-20 °C ... 65 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)	Certificate	CE-compliant
Certificate	UKCA-compliant	Identification	UL 508 Listed Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, Group IIC
Certificate	DNV GL TAA00002R0	Temperature	B
Humidity	B	Vibration	B
EMC	A	Enclosure	Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility	Conformance with EMC directive	Noise immunity	EN 61000-6-2
Note	When being exposed to interference, there may be minimal deviations.	Noise emission	EN 61000-6-4
Standards/regulations	EN 61000-4-2	Comments	Safety measures must be taken to prevent electrostatic discharge.
Designation	Electromagnetic RF field	Standards/regulations	EN 61000-4-3
Typical deviation from the measuring range final value	0.5 %	Comments	Criterion A
Designation	Fast transients (burst)	Standards/regulations	EN 61000-4-4
Typical deviation from the measuring range final value	2 %	Comments	Criterion B
Standards/regulations	EN 61000-4-5	Comments	Criterion B
Designation	Conducted interferences	Standards/regulations	EN 61000-4-6
Typical deviation from the measuring range final value	0.5 %	Comments	Criterion A
Mounting type	DIN rail mounting	Mounting position	any
