Phoenix Contact MINI MCR-SL-F-UI-NC

Selling Points

  • 1Configurable via DIP Switches and Teach-in Wheel: Easily adjust settings to suit your application needs.
  • 2Isolated Frequency Transduction: Ensure reliable signal conversion with basic insulation according to EN 61010.
  • 3Supports NAMUR Proximity Sensors: Compatible with IEC 60947-5-6 and EN 50227 standards.
  • 4Fault Monitoring Capability: Detect and respond to errors for enhanced system reliability.
  • 5Compact Design (6.2 mm x 93.1 mm x 102.5 mm): Ideal for space-constrained applications.
Product Details

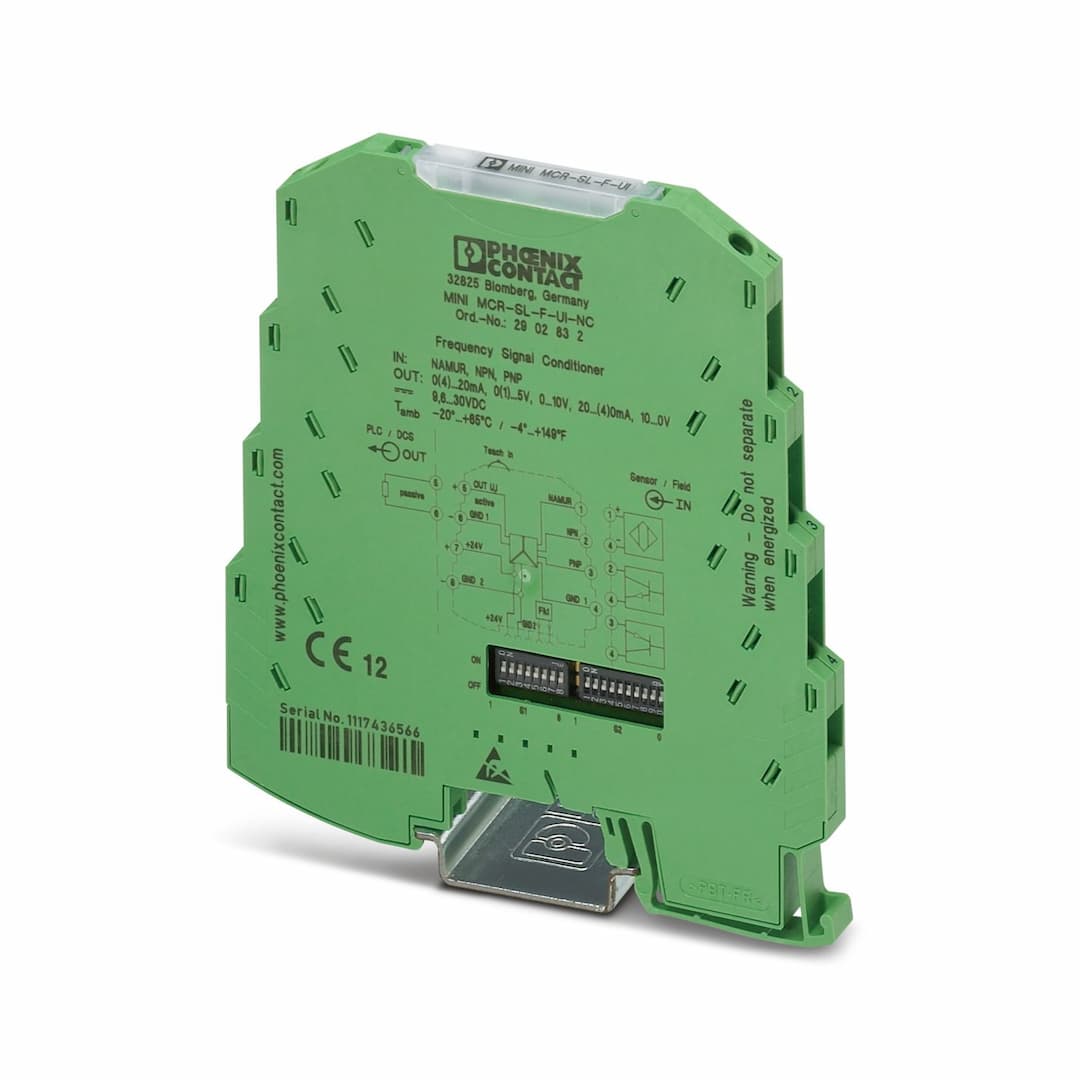

MINI MCR-SL-F-UI-NC
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Frequency value transformer
Product family
MINI Analog
No. of channels
1
Operating elements
Press/slide button
Configuration
DIP switches
Article revision
11
Overvoltage category
II
Pollution degree
2
Configuration
DIP switches
Electrical isolation
3-way isolation
Electrical isolation between input and output
yes
Protective circuit
Transient protection
Step response (0–99%)
< 35 ms (At f > 500 Hz)
Maximum temperature coefficient
0.01 %/K
Transmission error in the set measuring range
0.1 %
Rated insulation voltage
50 V AC/DC
Test voltage
1.5 kV AC (50 Hz, 60 s)
Insulation
Basic insulation in accordance with IEC/EN 61010
Supply voltage range
9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Typical current consumption
< 28 mA (at I
Power consumption
< 800 mW (at I
Configurable/programmable
Yes
Available input sources
NPN/PNP transistor outputs NAMUR initiators Floating relay contact (dry contact)
Max. voltage input signal
30 V (incl. DC voltage)
Frequency measuring range
0.002 Hz ... 20 kHz (DIP switch) 0.002 Hz ... 80 kHz (Teach-in wheel)
Number of inputs
1
Input signal
Frequency
Number of outputs
1
Configurable/programmable
Yes
Voltage output signal
0 V ... 5 V 1 V ... 5 V 0 V ... 10 V 10 V ... 0 V
Max. voltage output signal
 12.3 V
Current output signal
0 mA ... 20 mA 4 mA ... 20 mA 20 mA ... 0 mA 20 mA ... 4 mA
Max. current output signal
24.6 mA
Load/output load voltage output
≥ 10 kΩ
Load/output load current output
500 Ω (20 mA)
Ripple
< 20 mV < 20 mV
Connection method
Screw connection
Stripping length
12 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
26 ... 12
Status display
LED (red)
Width
6.2 mm
Height
93.1 mm
Depth
101.2 mm
Color
green (RAL 6021)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Certificate
UKCA-compliant
Identification
UL 508 Listed Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, Group IIC
Certificate
DNV GL TAA00002R0
Temperature
B
Humidity
B
Vibration
B
EMC
A
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Comments
Safety measures must be taken to prevent electrostatic discharge.
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Typical deviation from the measuring range final value
0.1 %
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Typical deviation from the measuring range final value
2 %
Standards/regulations
EN 61000-4-5
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Typical deviation from the measuring range final value
0.3 %
Electrical isolation
3-way isolation
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any
