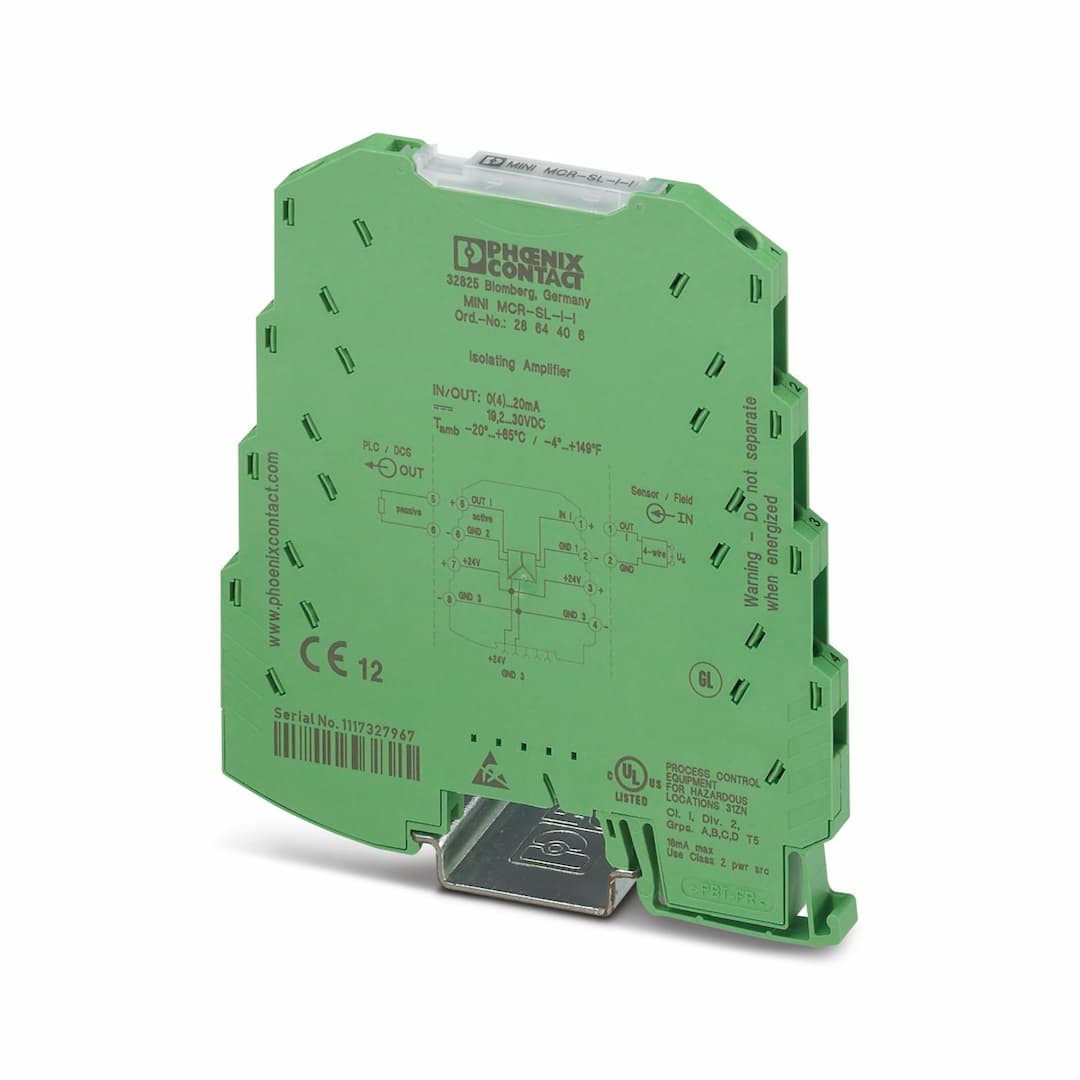

Phoenix Contact MINI MCR-SL-I-I

Selling Points

  • 1Compact design with a width of 6.2 mm.
  • 2Low power consumption for energy-efficient operation.
  • 33-way isolation for secure electrical isolation of analog signals.
  • 4Input and output signals available in 0...20 mA or 4...20 mA.
  • 5Highly-compact isolating amplifier suitable for industrial applications.
Product Details
MINI MCR-SL-I-I
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Signal conditioner
Product family
MINI Analog
No. of channels
1
Article revision
13
Overvoltage category
II
Pollution degree
2
Rated insulation voltage
50 V AC/DC
Electrical isolation
Basic insulation in accordance with EN 61010
Electrical isolation between input and output
yes
Limit frequency (3 dB)
approx. 100 Hz
Maximum power dissipation for nominal condition
250 mW
Test voltage (Input/output/supply)
1.5 kV AC (50 Hz, 60 s)
Protective circuit
Transient protection
Signal transmission behavior
In = Out
Step response (10-90%)
 3.2 ms
Maximum temperature coefficient
< 0.01 %/K
Temperature coefficient, typical
< 0.002 %/K
Maximum transmission error
≤ 0.1 % (of final value)
Nominal supply voltage
24 V DC
Supply voltage range
19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Max. current consumption
< 20 mA
Power consumption
< 450 mW
Number of inputs
1
Configurable/programmable
no
Current input signal
0 mA ... 20 mA 4 mA ... 20 mA
Max. current input signal
50 mA
Input resistance current input
approx. 50 Ω
Number of outputs
1
Configurable/programmable
no
Non-load voltage
approx. 12.5 V
Current output signal
0 mA ... 20 mA 4 mA ... 20 mA
Max. current output signal
28 mA
Load/output load current output
< 500 Ω (at 20 mA)
Ripple
< 20 mV
Connection method
Screw connection
Stripping length
12 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
26 ... 12
Width
6.2 mm
Height
93.1 mm
Depth
101.2 mm
Color
green (RAL 6021)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Certificate
UKCA-compliant
Identification
UL 508 Recognized Class I, Div. 2, Groups A, B, C, D T5
Certificate
DNV GL TAA000020N
Temperature
B
Humidity
B
Vibration
B
EMC
A
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Comments
Safety measures must be taken to prevent electrostatic discharge.
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Typical deviation from the measuring range final value
10 %
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Typical deviation from the measuring range final value
10 %
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Typical deviation from the measuring range final value
10 %
Electrical isolation
Basic insulation in accordance with EN 61010
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any

Specifications may be subject to change without notice
