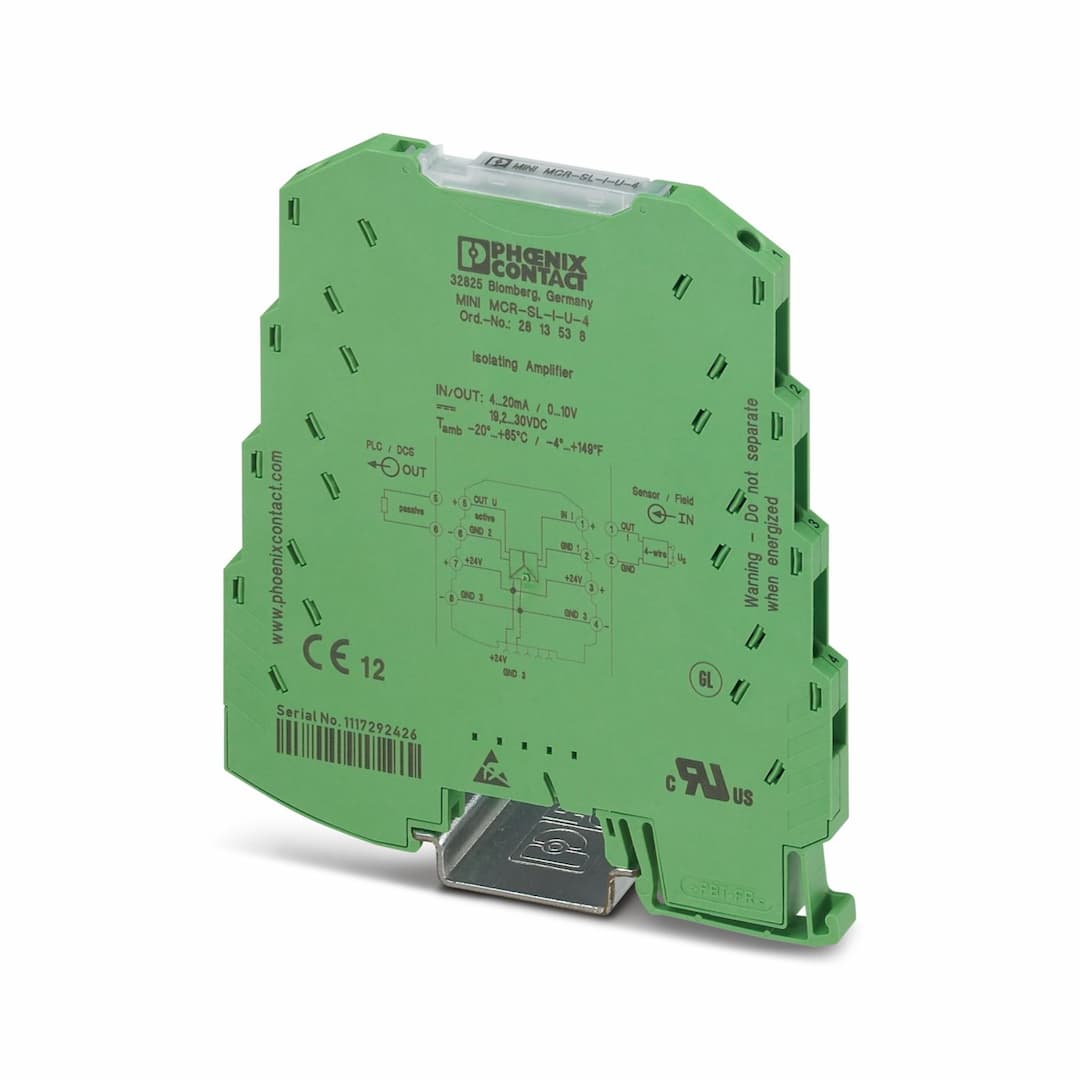

Phoenix Contact MINI MCR-SL-I-U-4

Selling Points

  • 1Provides 3-way isolation for secure analog signal processing.
  • 2Operates with a maximum current consumption of <9 mA and power consumption of <200 mW.
  • 3Highly-compact housing with dimensions of 6.2 mm x 93.1 mm x 102.5 mm.
  • 4Features a screw connection method and supports solid or flexible conductors.
  • 5Meets EMC Directive 2004/108/EC standards for electromagnetic compatibility.
Product Details
MINI MCR-SL-I-U-4
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Signal conditioner
Product family
MINI Analog
No. of channels
1
Article revision
11
Overvoltage category
II
Pollution degree
2
Electrical isolation
Basic insulation in accordance with EN 61010
Electrical isolation between input and output
yes
Limit frequency (3 dB)
approx. 100 Hz
Maximum power dissipation for nominal condition
434.3 mW
Step response (10-90%)
 3.5 ms
Maximum temperature coefficient
< 0.01 %/K
Temperature coefficient, typical
< 0.002 %/K
Maximum transmission error
≤ 0.1 % (of final value)
Rated insulation voltage
30 V AC 50 V DC
Test voltage
1.5 kV AC (50 Hz, 60 s)
Nominal supply voltage
24 V DC
Supply voltage range
19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Max. current consumption
< 9 mA
Power consumption
< 200 mW
Number of inputs
1
Configurable/programmable
no
Current input signal
4 mA ... 20 mA
Max. current input signal
50 mA
Input resistance current input
approx. 50 Ω
Number of outputs
1
Configurable/programmable
no
Voltage output signal
0 V ... 10 V
Max. voltage output signal
12.5 V
Short-circuit current
approx. 2 mA
Load/output load voltage output
≥ 10 kΩ
Ripple
< 20 mV < 20 mV
Connection method
Screw connection
Stripping length
12 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
26 ... 12
Width
6.2 mm
Height
93.1 mm
Depth
101.2 mm
Color
green (RAL 6021)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Certificate
UKCA-compliant
Identification
UL 508 Recognized Class I, Div. 2, Groups A, B, C, D T4
Certificate
DNV GL TAA000020N
Temperature
B
Humidity
B
Vibration
B
EMC
A
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Comments
Safety measures must be taken to prevent electrostatic discharge.
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Typical deviation from the measuring range final value
5 %
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Typical deviation from the measuring range final value
5 %
Standards/regulations
EN 61000-4-5
Comments
Criterion B
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Typical deviation from the measuring range final value
5 %
Electrical isolation
Basic insulation in accordance with EN 61010
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any

Specifications may be subject to change without notice
