Product Model

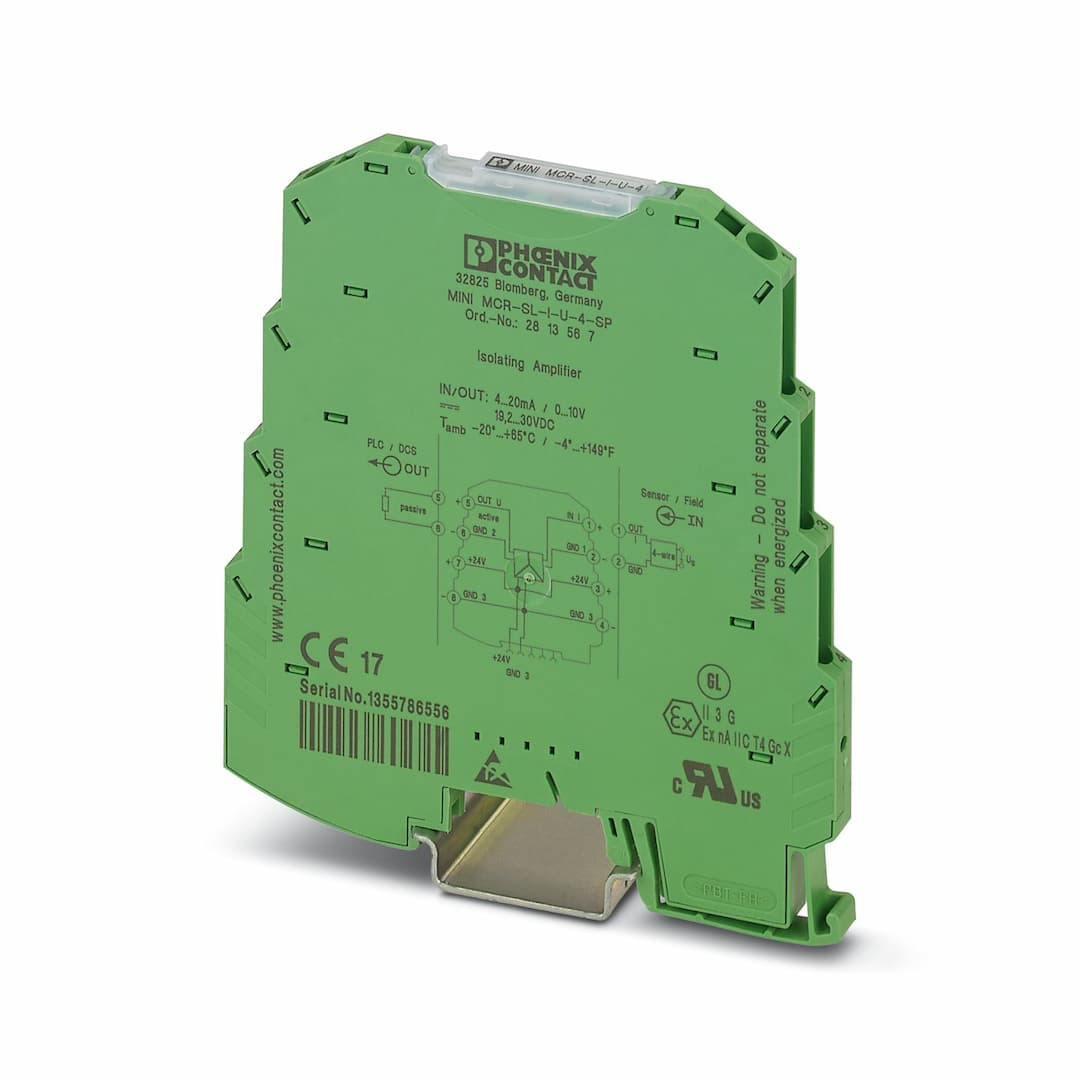

MINI MCR-SL-I-U-4-SP
Selling Points
- 1Provides basic insulation according to EN 61010 for safe signal processing.
- 2Supports input signals from 4 mA to 20 mA and output signals from 0 V to 10 V.
- 3Measures 6.2 mm x 93.1 mm x 102.5 mm, ideal for DIN rail mounting.
- 4Consumes less than 9 mA at 24 V DC, reducing energy costs.
- 5Conforms to EMC directive with noise emission and immunity according to EN 61000-6-4 and EN 61000-6-2.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Signal conditioner | Product family | MINI Analog |
No. of channels | 1 | Article revision | 08 |
Overvoltage category | II | Pollution degree | 2 |
Rated insulation voltage | 30 V AC
50 V DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | approx. 100 Hz |
Maximum power dissipation for nominal condition | 434 mW | Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) |
Step response (10-90%) | 3.5 ms | Maximum temperature coefficient | < 0.01 %/K |
Temperature coefficient, typical | < 0.002 %/K | Maximum transmission error | ≤ 0.1 % (of final value) |
Nominal supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Max. current consumption | < 9 mA | Power consumption | < 200 mW |
Number of inputs | 1 | Configurable/programmable | no |
Current input signal | 4 mA ... 20 mA | Max. current input signal | 50 mA |
Input resistance current input | approx. 50 Ω | Number of outputs | 1 |
Configurable/programmable | no | Voltage output signal | 0 V ... 10 V |
Max. voltage output signal | 12.5 V | Short-circuit current | approx. 2 mA |
Load/output load voltage output | ≥ 10 kΩ | Ripple | < 20 mV |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Width | 6.2 mm |
Height | 93.1 mm | Depth | 102.5 mm |
Color | green (RAL 6021) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Identification | II 3 G Ex nA IIC T4 Gc X |
Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T4 | Identification | GL EMC 2 D |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 5 % |
Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
Typical deviation from the measuring range final value | 5 % | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 5 % |
Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
