Product Model

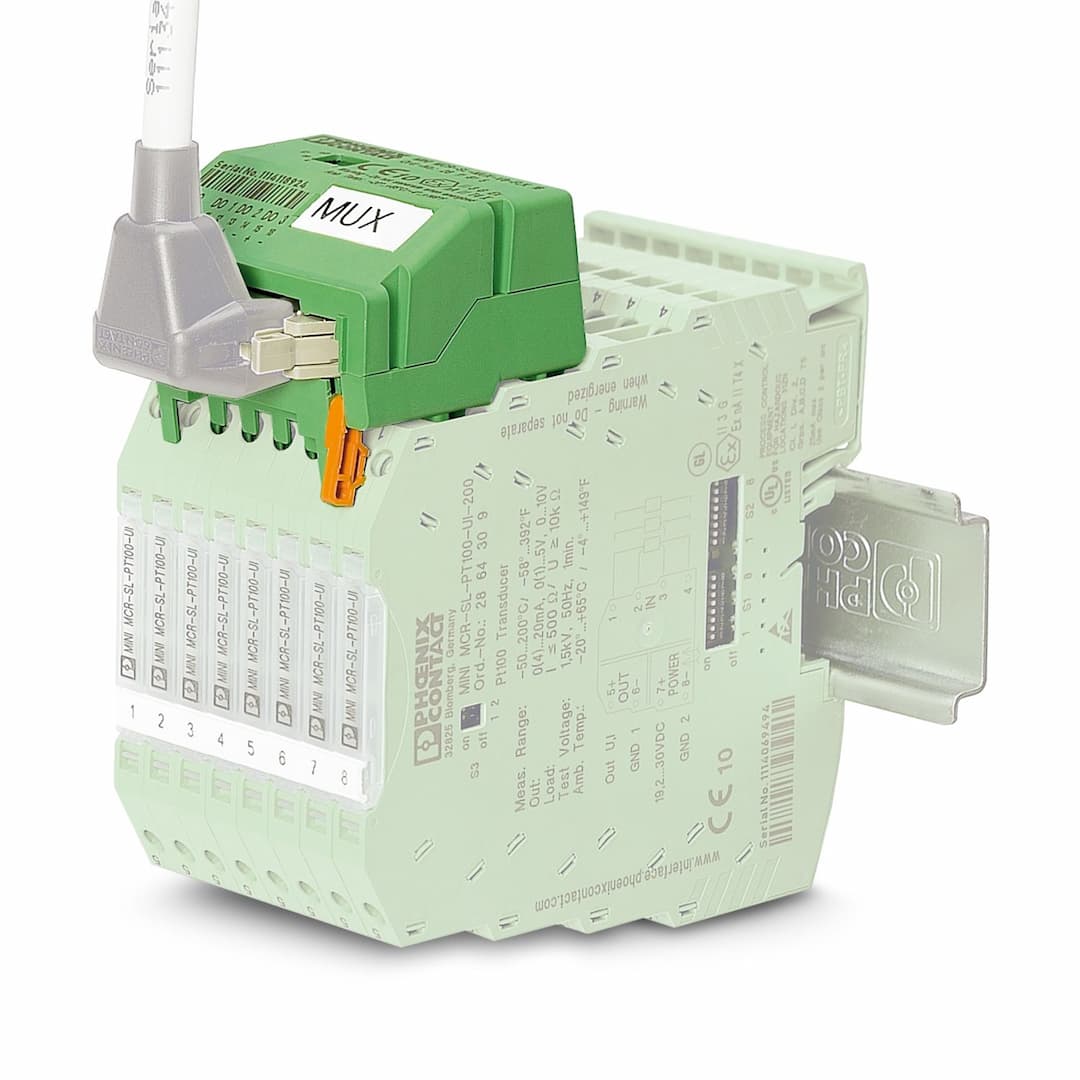

MINI MCR-SL-MUX-V8-FLK 16
Selling Points
- 1The MINI MCR-SL-MUX-V8-FLK 16 is designed to be compact, measuring 50.4 mm in width, 45.5 mm in height, and 46.2 mm in depth.
- 2Easily switch between 2, 4, 6, or 8 channels using DIP switches for customizable signal management.
- 3Achieve high accuracy with a maximum transmission error of 0.3% and a typical error of 0.1%.
- 4Operates on a loop-powered supply voltage range of 7 V DC to 30 V DC, minimizing power consumption.
- 5Built with PBT housing material and compliant with CE and ATEX standards for robust performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Multiplexer | Article revision | 04 |
Maximum temperature coefficient | < 0.01 %/K | Contact resistance | < 10 mΩ |
Maximum transmission error | 0.3 % (0.1%, typical) | Designation | Loop-powered |
Supply voltage range | 7 V DC ... 30 V DC (Loop-powered) | Max. current consumption | < 3.5 mA (without signal current) |
Power consumption | < 24 mW (without signal current) | Description of the input | 2, 4, 6, or 8-channel(can be switched over) |
Configurable/programmable | Via DIP switches | Current input signal | 4 mA ... 20 mA |
Max. current input signal | < 30 mA | Switching cycles | 2 or 1 sec. (can be selected) |
Maximum switching voltage | 30 V DC | Current output signal | 4 mA ... 20 mA |
Max. current output signal | < 30 mA | Load/output load current output | (U |
Status display | 1, 2, 3-bit digital output (can be selected) | Connection in acc. with standard | IEC 60603-13 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 16 | Insertion/withdrawal cycles | ≥ 200 |
Pitch | 2.54 mm | Connection method | Spring contact |
Number of positions | 16 | Insertion/withdrawal cycles | 10 |
Width | 50.4 mm | Height | 45.5 mm |
Depth | 46.2 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 | Housing material | PBT |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Certificate | CE-compliant | Identification | II 3 G Ex nA IIC T4 Gc X |
Identification | UL 508 Recognized pending
Class I, Div. 2, Groups A, B, C, D T5 pending | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
Vibration resistance | ≤ 0,7g |
Specifications may be subject to change without notice
