Product Model

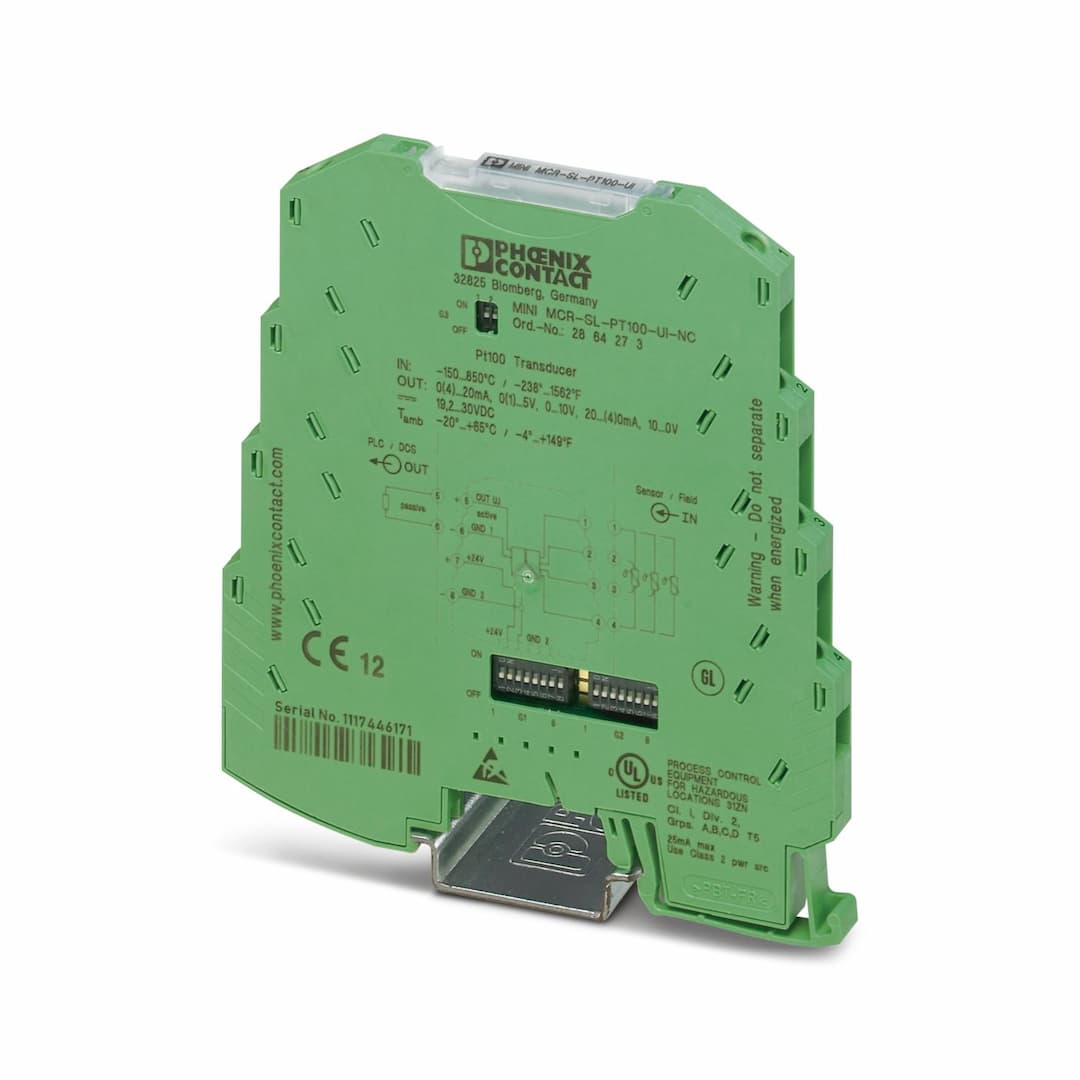

MINI MCR-SL-PT100-UI-NC
Selling Points
- 1Easily adjust connection method, temperature range, and output signal using accessible DIP switches.
- 2Measure temperatures from -150°C to +850°C, making it versatile for various applications.
- 3Ensure electrical isolation with 3-way isolation, enhancing safety and reliability.
- 4Choose from various analog signals (0...20 mA, 4...20 mA, 0...10 V, etc.) for compatibility with different systems.
- 5The 6.2 mm wide transducer is highly compact, ideal for space-constrained environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Temperature transmitter |
Product family | MINI Analog | No. of channels | 1 |
Configuration | DIP switches | Article revision | 15 |
Overvoltage category | II | Pollution degree | 2 |
Electrical isolation | 3-way isolation | Maximum power dissipation for nominal condition | 235.5 mW |
Protective circuit | Transient protection | Step response (0–99%) | < 160 ms |
Maximum temperature coefficient | < 0.02 %/K | Transmission error in the set measuring range | ((100 K / set measurement range [K]) + 0.1)% |
Transmission error in the full measuring range | ≤ 0,2 % | Rated insulation voltage | 50 V AC/DC |
Test voltage | 1.5 kV AC (50 Hz, 60 s) | Insulation | Basic insulation in accordance with IEC/EN 61010 |
Nominal supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Max. current consumption | < 21 mA (at 24 V DC) | Power consumption | < 500 mW |
Number of inputs | 1 | Configurable/programmable | Yes |
Sensor types (RTD) that can be used | Pt 100 (IEC 60751/EN 60751) | Temperature measuring range | min. 50 K |
Sensor type: | -150 °C ... 850 °C (configurable) | Sensor input current | 1 mA (constant) |
Max. permissible overall conductor resistance | 10 Ω (Per cable) | Connection technology | 2-, 3-, 4-conductor |
Number of outputs | 1 | Configurable/programmable | Yes, unconfigured |
Voltage output signal | 0 V ... 5 V
1 V ... 5 V
0 V ... 10 V
10 V ... 0 V | Max. voltage output signal | 12.5 V |
Non-load voltage | 12.5 V | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA
20 mA ... 0 mA
20 mA ... 4 mA |
Max. current output signal | 23 mA | Short-circuit current | 10 mA |
Load/output load voltage output | ≥ 10 kΩ | Load/output load current output | < 500 Ω (at 20 mA) |
Ripple | < 20 mV
< 20 mV | Connection method | Screw connection |
Stripping length | 12 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 12 | Width | 6.2 mm |
Height | 93.1 mm | Depth | 101.2 mm |
Color | green (RAL 6021) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 | Certificate | DNV GL TAA00002R0 |
Temperature | B | Humidity | B |
Vibration | B | EMC | A |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 10 % |
Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
Typical deviation from the measuring range final value | 10 % | Standards/regulations | EN 61000-4-5 |
Comments | Criterion B | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 10 % |
Electrical isolation | 3-way isolation | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
