Product Model

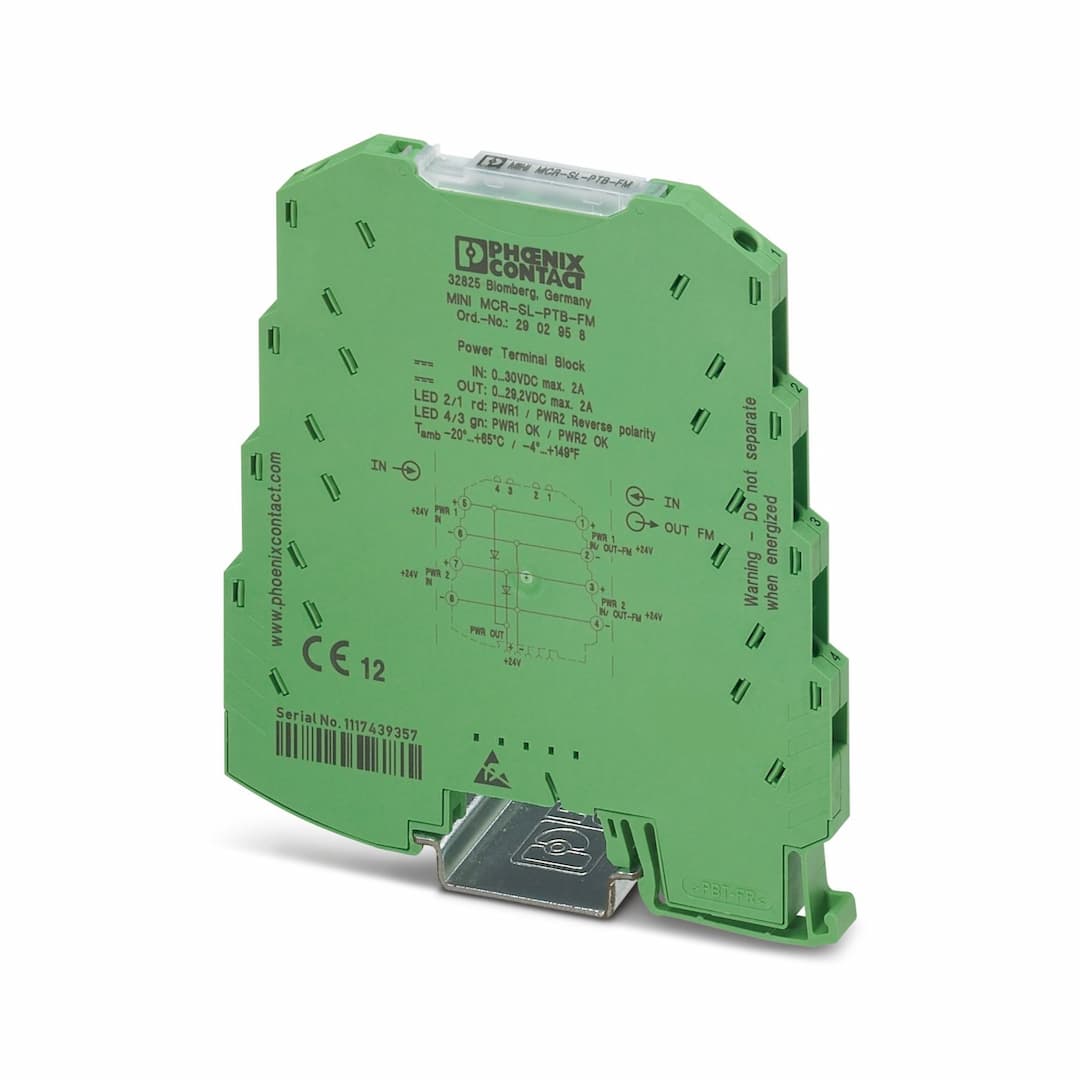

MINI MCR-SL-PTB-FM
Selling Points
- 1Two separate voltage inputs ensure reliable power supply.
- 2Supports up to 2A of current for robust power distribution.
- 3Easy and secure connection using M3 screws.
- 4Operates within 0-30V DC for versatile applications.
- 5Built-in protection against reverse polarity for safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Power module |
Product family | MINI Analog | Article revision | 07 |
Maximum temperature coefficient | < 0.01 %/K | Input voltage range DC | 0 V DC ... 30 V DC |
Max. input current | 2 A | Reverse polarity protection | yes |
Output voltage range | 19.2 V DC ... 29.2 V DC (Input voltage - 0.8 V) | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 26 | Conductor cross section AWG max. | 12 |
Stripping length | 12 mm | Screw thread | M3 |
Status display | Green LED (supply) | Error indication | Red LED |
Width | 6.2 mm | Height | 93.1 mm |
Depth | 102.5 mm | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Maximum altitude | ≤ 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC | Certificate | DNV GL TAA00002R0 |
Temperature | B | Humidity | B |
Vibration | B | EMC | B |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Evaluation criterion | A |
Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
Evaluation criterion | B | Standards/regulations | EN 61000-4-5 |
Comments | Criterion B | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Evaluation criterion | A |
Mounting type | DIN rail mounting | Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
Mounting position | any |
Specifications may be subject to change without notice
