Product Model

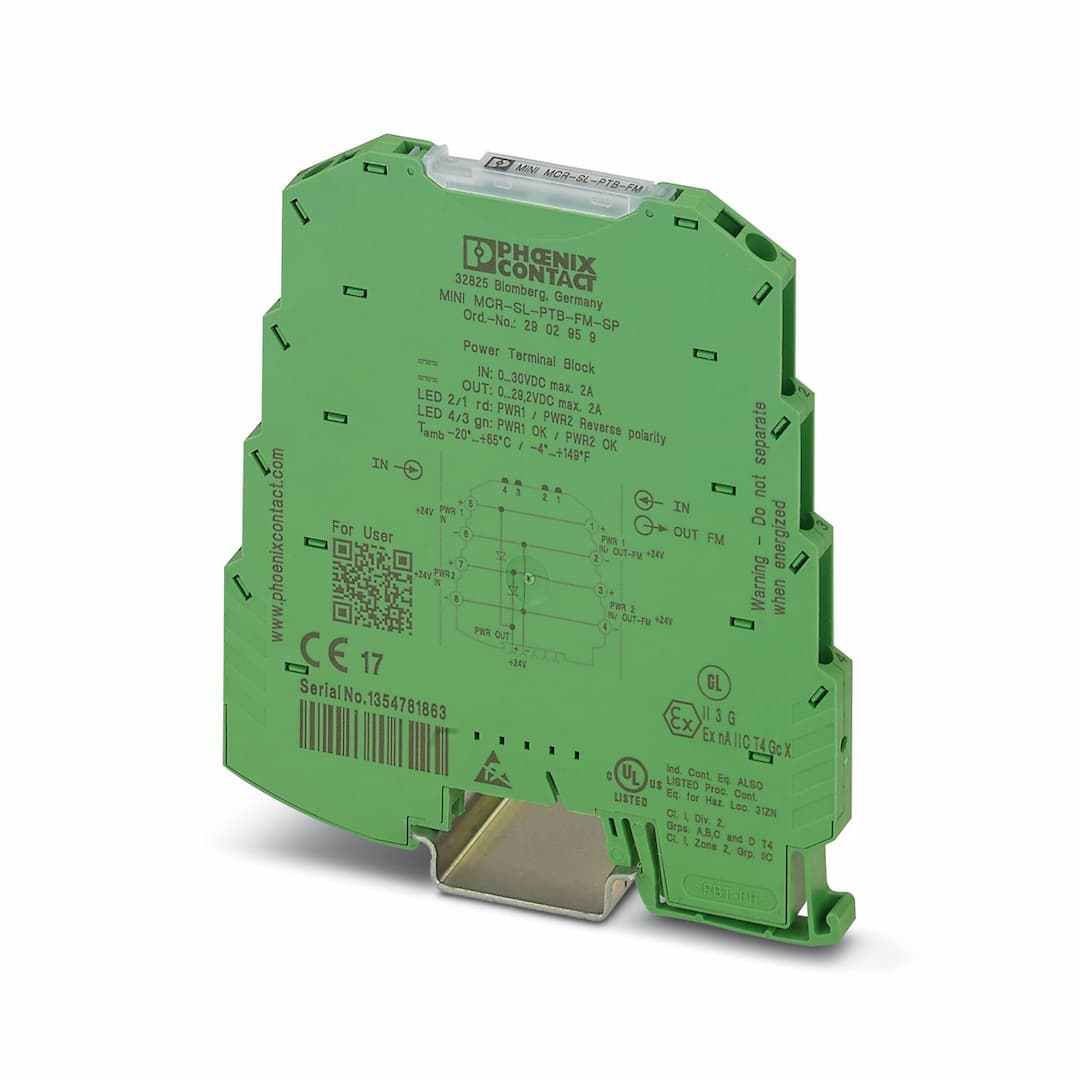

MINI MCR-SL-PTB-FM-SP
Selling Points
- 1Ensures continuous operation with two separate voltage inputs.
- 2Provides reliable power supply with minimal noise and interference.
- 3Supports up to 2A current consumption for multiple modules.
- 4Compatible with DC voltages from 20V to 30V.
- 5Snap onto a 35mm DIN rail for easy installation according to EN 60715.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Power module | Product family | MINI Analog |
Article revision | 06 | Maximum temperature coefficient | < 0.01 %/K |
Input voltage range DC | 0 V DC ... 30 V DC | Max. input current | 2 A |
Reverse polarity protection | yes | Output voltage range | Input voltage - 0.8 V |
Connection method | Spring-cage connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Stripping length | 8 mm |
Status display | Green LED (supply) | Error indication | Red LED |
Width | 6.2 mm | Height | 93.1 mm |
Depth | 102.5 mm | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Identification | II 3 G Ex nA IIC T4 Gc X |
Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC | Certificate | DNV GL 14085-15HH |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
Evaluation criterion | A | Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 | Evaluation criterion | B |
Standards/regulations | EN 61000-4-5 | Comments | Criterion B |
Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
Evaluation criterion | A | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
