MINI MCR-SL-PTB-SP

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

19265

In Stock
Last updated: 2025/4/25
View Specifications
Phoenix Contact MINI MCR-SL-PTB-SP

Selling Points

  • 1Provides two separate voltage inputs for a redundant supply of 24 V DC.
  • 2Features green and red LEDs for status and error indication, ensuring correct connection and supply.
  • 3Supports a maximum current of 2 A, suitable for various industrial applications.
  • 4Measures 6.2 mm x 93.1 mm x 102.5 mm, ideal for space-constrained environments.
  • 5Made from polybutylenterephthalate (PBT) with IP20 protection, ensuring reliability in harsh conditions.
Product Details

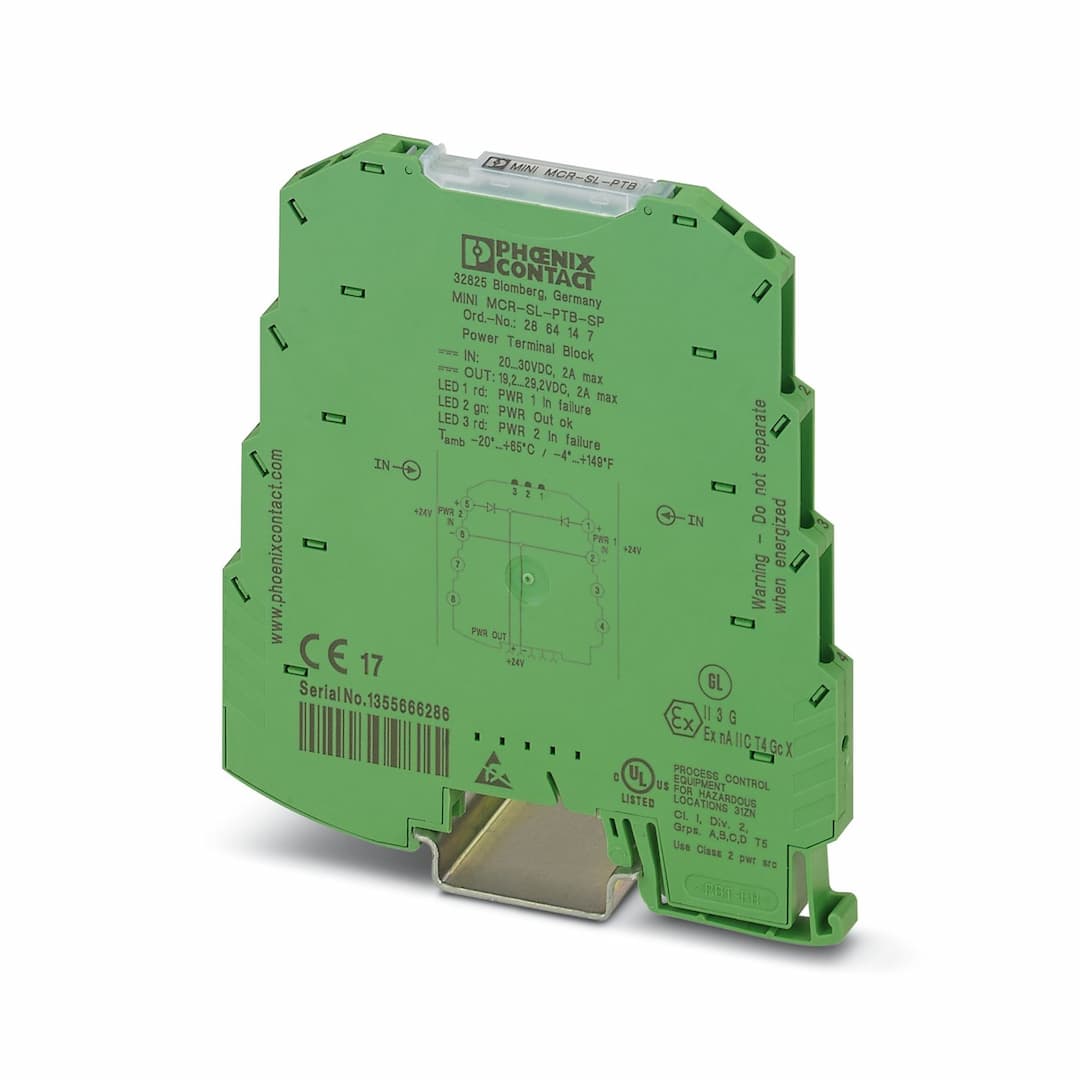

MINI MCR-SL-PTB-SP
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Power module
Product family
MINI Analog
Article revision
07
Input voltage
24 V DC
Input voltage range DC
20 V DC ... 30 V DC
Max. input current
2 A
Reverse polarity protection
yes
Output voltage range
Input voltage - 0.8 V
Maximum power dissipation for nominal condition
< 5 mW
Connection method
Spring-cage connection
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
12
Stripping length
8 mm
Status display
Green LED (supply)
Error indication
Red LED
Width
6.2 mm
Height
93.1 mm
Depth
102.5 mm
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Conformance
CE-compliant
ATEX
 II 3 G Ex nA IIC T4 Gc X
UL, USA / Canada
UL 508 Recognized Class I, Div. 2, Groups A, B, C, D T5
GL
GL EMC 2 D
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Comments
Safety measures must be taken to prevent electrostatic discharge.
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Evaluation criterion
A
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Evaluation criterion
B
Standards/regulations
EN 61000-4-5
Comments
Criterion B
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Evaluation criterion
A
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any
