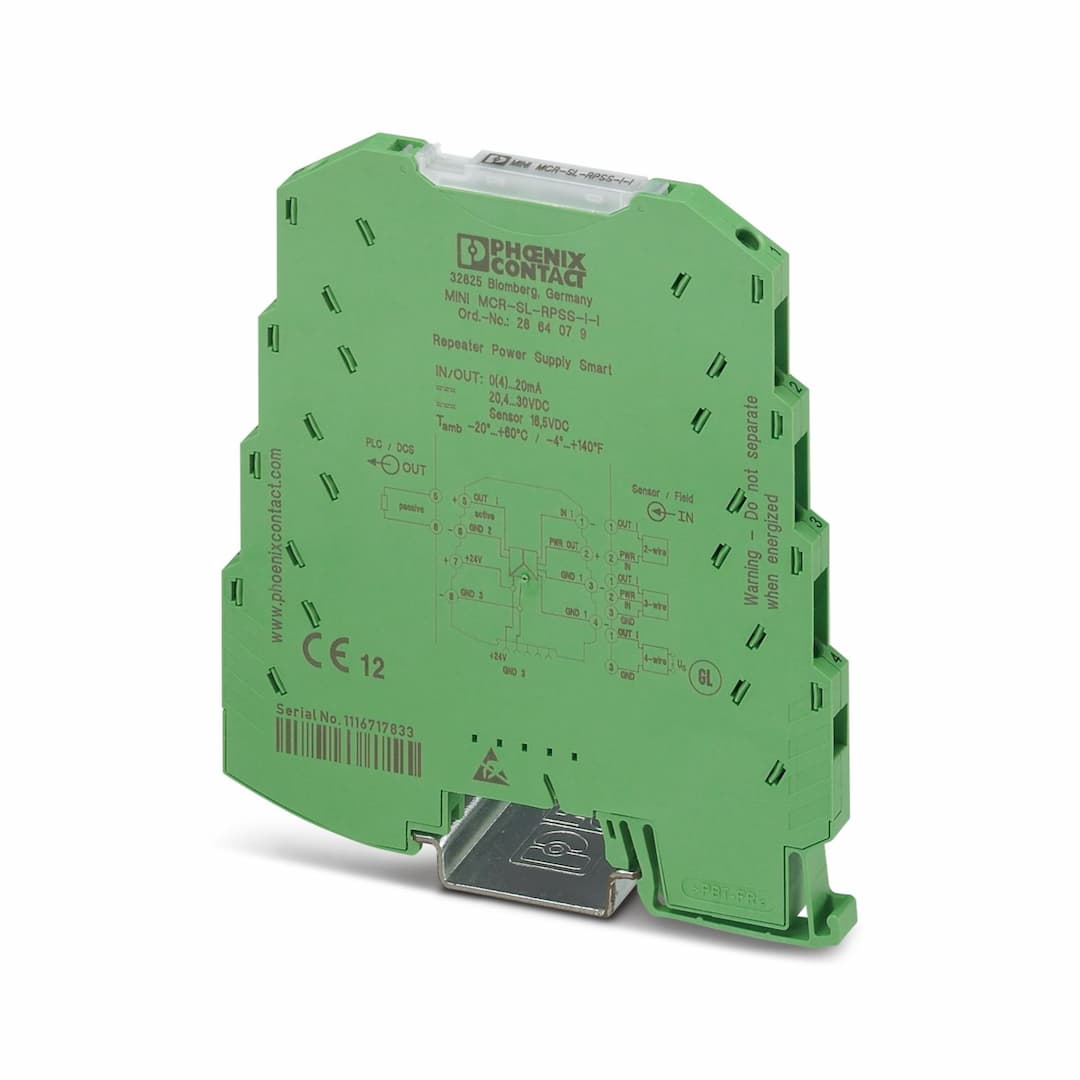

MINI MCR-SL-RPSS-I-I
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Repeater power supply
Product family
MINI Analog
No. of channels
1
Article revision
11
Overvoltage category
II
Pollution degree
2
Electrical isolation
3-way isolation
Electrical isolation between input and output
yes
Limit frequency (3 dB)
175 Hz (typ.)
Maximum power dissipation for nominal condition
700 mW (24 V DC) 400 mW (24 V DC)
Protective circuit
Transient protection
Signal transmission behavior
In = Out
Step response (10-90%)
< 2 ms
Maximum temperature coefficient
< 0.005 %/K
Temperature coefficient, typical
< 0.002 %/K
Maximum transmission error
≤ 0.2 % (of final value)
Transmission error, typical
≤ 0.1 % (of final value)
Rated insulation voltage
50 V AC/DC
Test voltage
1.5 kV AC (50 Hz, 60 s)
Insulation
Basic insulation in accordance with IEC/EN 61010
Nominal supply voltage
24 V DC
Supply voltage range
20.4 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Power consumption
< 900 mW (at 24 V DC and in repeater power supply operation) < 600 mW (at 24 V DC and in isolator operation)
Description of the input
Sensor circuit
Number of inputs
1
Current input signal
0 mA ... 20 mA (isolator operation) 4 mA ... 20 mA (repeater power supply and isolator operation)
Max. current input signal
28 mA
Input resistance current input
approx. 50 Ω
Transmitter supply voltage
16.5 V
Number of outputs
1
Non-load voltage
approx. 12.5 V
Current output signal
0 mA ... 20 mA (isolator operation) 4 mA ... 20 mA (repeater power supply and isolator operation)
Max. current output signal
> 21 mA (22.5 mA, typical)
Load/output load current output
≤ 500 Ω (I = 20 mA)
Ripple
< 20 mV
Connection method
Screw connection
Stripping length
12 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
26 ... 12
HART function
Yes
Limit frequency (3 dB)
approx. 2.5 Hz
Width
6.2 mm
Height
93.1 mm
Depth
101.2 mm
Color
green (RAL 6021)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 60 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Certificate
UKCA-compliant
Identification
UL 508 Listed Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, Group IIC
Certificate
DNV GL TAA000020N
Temperature
B
Humidity
B
Vibration
B
EMC
A
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Comments
Safety measures must be taken to prevent electrostatic discharge.
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Typical deviation from the measuring range final value
3 %
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Typical deviation from the measuring range final value
3 %
Standards/regulations
EN 61000-4-5
Comments
Criterion B
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Typical deviation from the measuring range final value
3 %
Electrical isolation
3-way isolation
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715.
Mounting position
any
