Product Model

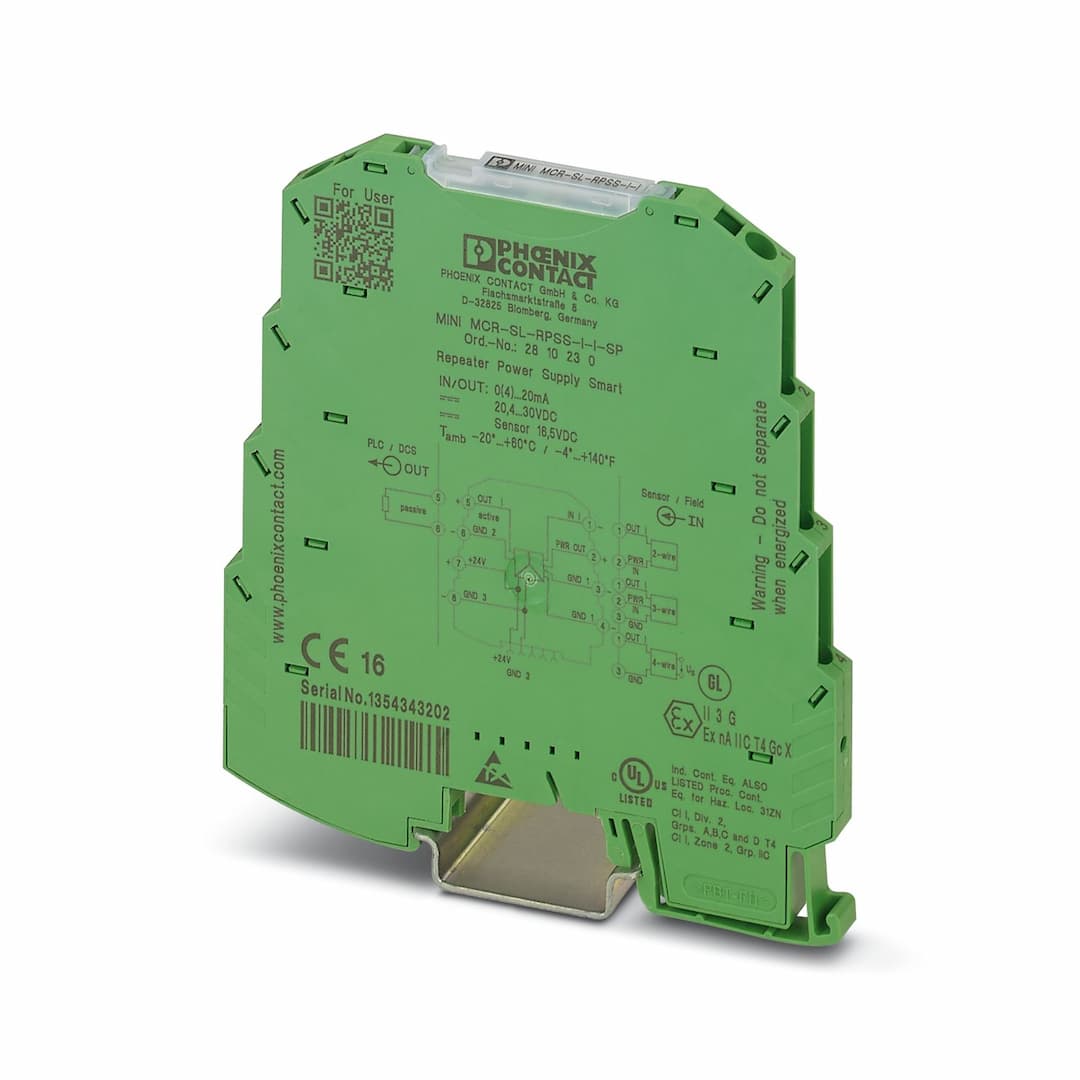

MINI MCR-SL-RPSS-I-I-SP
Selling Points
- 1Bidirectional HART Transmission: Supports bidirectional HART data protocols for efficient communication.
- 2Compact Design: 6.2 mm wide, ideal for space-constrained industrial settings.
- 3Electrical Isolation: Provides 3-way electrical isolation between input, output, and supply for safety.
- 4Versatile Operation: Can be used as both an isolator and repeater power supply.
- 5Reliable Signal Transmission: Offers step response < 2 ms and maximum transmission error ≤ 0.2% for precise signal handling.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Repeater power supply | Product family | MINI Analog |
No. of channels | 1 | Article revision | 08 |
Overvoltage category | II | Pollution degree | 2 |
Rated insulation voltage | 50 V AC/DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | 175 Hz (typ.) |
Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) | Protective circuit | Transient protection |
Signal transmission behavior | In = Out | Step response (10-90%) | < 2 ms |
Maximum temperature coefficient | < 0.005 %/K | Temperature coefficient, typical | < 0.002 %/K |
Maximum transmission error | ≤ 0.2 % (of final value) | Transmission error, typical | ≤ 0.1 % (of final value) |
Nominal supply voltage | 24 V DC | Supply voltage range | 20.4 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Power consumption | < 900 mW (at 24 V DC and in repeater power supply operation)
< 600 mW (at 24 V DC and in isolator operation) | Description of the input | Current input (sensor circuit) |
Number of inputs | 1 | Current input signal | 4 mA ... 20 mA (repeater power supply and isolator operation)
0 mA ... 20 mA (isolator operation) |
Input resistance current input | approx. 50 Ω | Transmitter supply voltage | 16.5 V |
Number of outputs | 1 | Non-load voltage | approx. 12.5 V |
Current output signal | 0 mA ... 20 mA (isolator operation)
4 mA ... 20 mA (repeater power supply and isolator operation) | Max. current output signal | > 21 mA (22.5 mA, typical) |
Load/output load current output | ≤ 500 Ω (I = 20 mA) | Ripple | < 20 mV |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | HART function | Yes |
Limit frequency (3 dB) | approx. 2.5 Hz | Width | 6.2 mm |
Height | 93.1 mm | Depth | 102.5 mm |
Color | green (RAL 6021) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 60 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Identification | II 3 G Ex nA IIC T4 Gc X |
Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T4
Class I, Zone 2, Group IIC | Identification | BBBAA |
Certificate | DNV GL TAA00000N1 | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 3 % |
Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
Typical deviation from the measuring range final value | 3 % | Standards/regulations | EN 61000-4-5 |
Comments | Criterion B | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 3 % |
Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715. | Mounting position | any |
Specifications may be subject to change without notice
