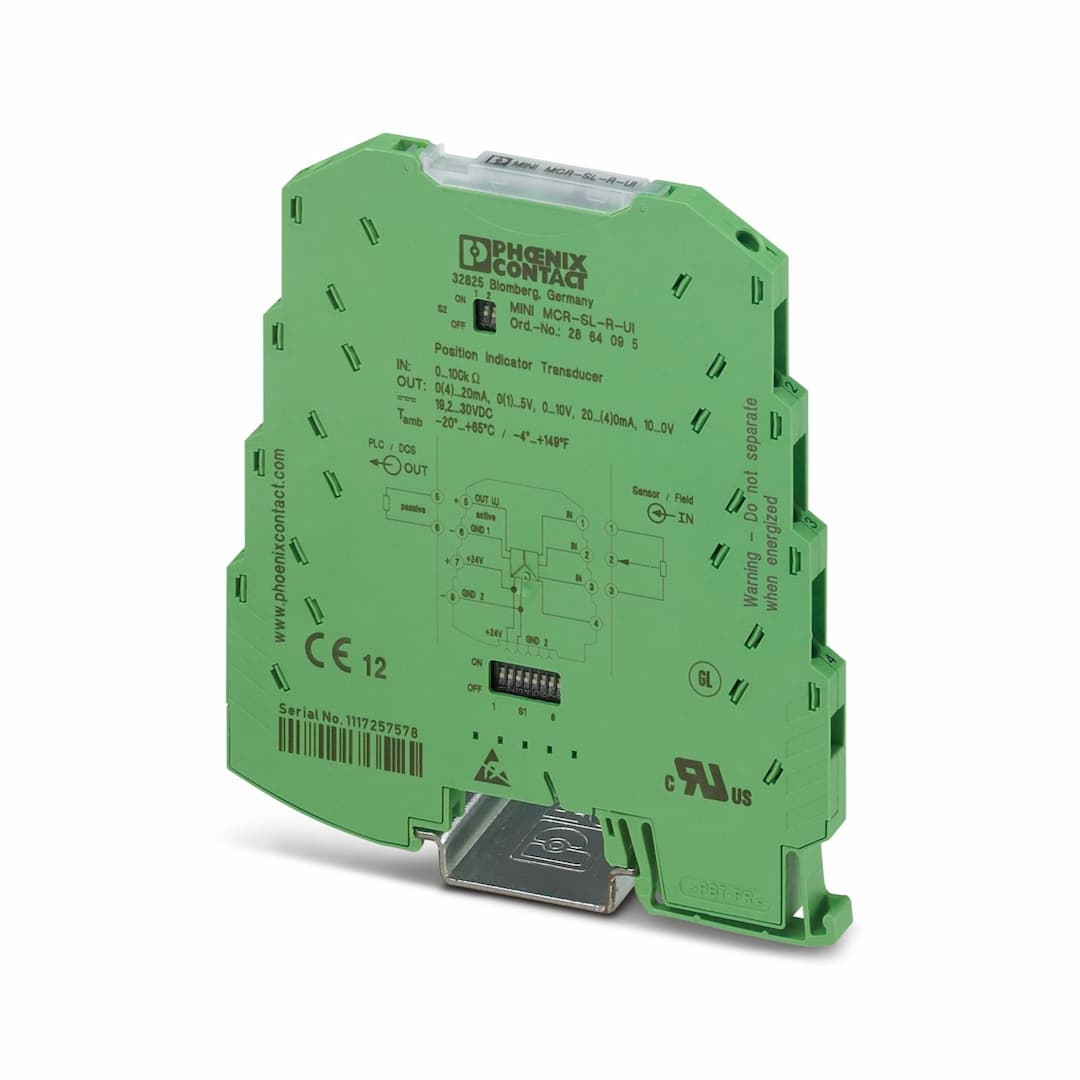

Phoenix Contact MINI MCR-SL-R-UI

Selling Points

  • 1Slim Design: 6.2 mm wide for easy integration.
  • 2Configurable Output: Adjustable output signals via DIP switches.
  • 3High Precision: Maximum transmission error < 0.2%, ensuring accurate readings.
  • 4Flexible Power Supply: Operates on 19.2 V DC to 30 V DC with DIN rail connector option.
  • 5Enhanced Safety: Approval for Ex-zone 2 (nA) and basic insulation according to EN 61010.
Product Details
MINI MCR-SL-R-UI
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Potiposition transducer
Product family
MINI Analog
No. of channels
1
Configuration
DIP switches
Article revision
15
Overvoltage category
II
Pollution degree
2
Configuration
DIP switches
Maximum power dissipation for nominal condition
235.5 mW
Step response (0–99%)
< 30 ms
Maximum temperature coefficient
< 0.02 %/K
Temperature coefficient, typical
< 0.02 %/K
Maximum transmission error
< 0.2 %
Rated insulation voltage
30 V AC 50 V DC
Test voltage
1.5 kV AC (50 Hz, 60 s)
Insulation
Basic insulation in accordance with IEC/EN 61010
Nominal supply voltage
24 V DC
Supply voltage range
19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Typical current consumption
< 25 mA (at 24 V DC)
Power consumption
< 500 mW
Number of inputs
1
Resistance range
100 Ω ... 100 kΩ
Reference voltage source
< 3.6 V
Number of outputs
1
Voltage output signal
0 V ... 5 V 1 V ... 5 V 0 V ... 10 V 10 V ... 0 V
Max. voltage output signal
12.5 V
Non-load voltage
 12.5 V
Current output signal
0 mA ... 20 mA 4 mA ... 20 mA 20 mA ... 0 mA 20 mA ... 4 mA
Max. current output signal
23 mA
Short-circuit current
 10 mA
Load/output load voltage output
> 10 kΩ
Load/output load current output
< 500 Ω (20 mA)
Ripple
< 20 mV < 20 mV
Behavior in the event of a sensor error
0 % ... 105 % (configurable)
Connection method
Screw connection
Stripping length
12 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
26 ... 12
Error indication
Red LED
Width
6.2 mm
Height
93.1 mm
Depth
101.2 mm
Color
green (RAL 6021)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Certificate
UKCA-compliant
Identification
UL 508 Recognized Class I, Div. 2, Groups A, B, C, D T4
Certificate
DNV GL TAA000020N
Temperature
B
Humidity
B
Vibration
B
EMC
A
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Typical deviation from the measuring range final value
5 %
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Typical deviation from the measuring range final value
5 %
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Typical deviation from the measuring range final value
5 %
Mounting type
DIN rail mounting
Mounting position
any

Specifications may be subject to change without notice
