Product Model

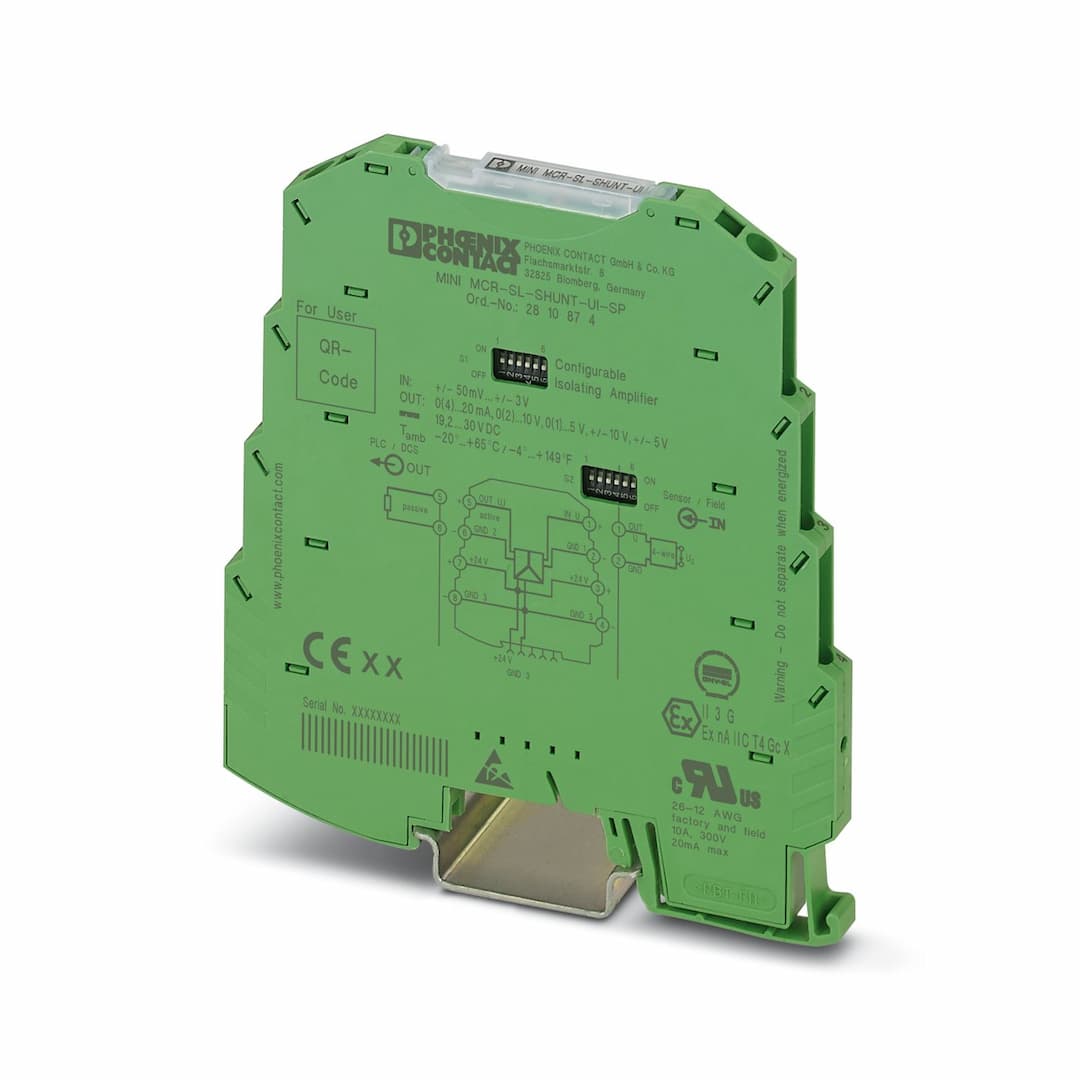

MINI MCR-SL-SHUNT-UI-SP
Selling Points
- 1Configurable 3-way isolation amplifier for precise signal processing.
- 2Supports a wide range of input signals from -50 mV to 3 V DC.
- 3Output signals can be configured from 0 V to 10 V or bi-polar outputs.
- 4Compact design with a slim profile (6.2 mm width).
- 5Compatible with DIN rail mounting and spring-cage terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Signal conditioner | Product family | MINI Analog |
No. of channels | 1 | Article revision | 06 |
Overvoltage category | II | Pollution degree | 2 |
Rated insulation voltage | 30 V AC
50 V DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | 100 Hz / 30 Hz switchable |
Test voltage, input/output/supply | 1.5 kV AC (50 Hz, 60 s) | Step response (10-90%) | 3.5 ms (100 Hz) |
Maximum temperature coefficient | < 0.01 %/K | Temperature coefficient, typical | < 0.002 %/K |
Maximum transmission error | ≤ 0.2 %
< 0.4 % (Without adjustment) | Nominal supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Max. current consumption | < 25 mA |
Power consumption | < 450 mW (Current output) | Number of inputs | 1 |
Configurable/programmable | Yes, preconfigured | Voltage input signal | -50 mV ... 50 mV
-60 mV ... 60 mV
-75 mV ... 75 mV
-80 mV ... 80 mV
-100 mV ... 100 mV
-120 mV ... 120 mV
-150 mV ... 150 mV
-200 mV ... 200 mV
-240 mV ... 240 mV
-300 mV ... 300 mV
-500 mV ... 500 mV
-600 mV ... 600 mV
-750 mV ... 750 mV
-800 mV ... 800 mV
-1 V ... 1 V
-1.2 V ... 1.2 V
-1.5 V ... 1.5 V
-2 V ... 2 V
-2.4 V ... 2.4 V
-3 V ... 3 V
0 mV ... 50 mV (additional areas can be configured, see table)
0 mV ... 60 mV
0 mV ... 75 mV
0 mV ... 80 mV
0 mV ... 100 mV
0 mV ... 120 mV
0 mV ... 150 mV
0 mV ... 200 mV
0 mV ... 240 mV
0 mV ... 300 mV
0 mV ... 500 mV
0 mV ... 600 mV
0 mV ... 750 mV
0 mV ... 800 mV
0 V ... 1 V
0 V ... 1.2 V
0 V ... 1.5 V
0 V ... 2 V
0 V ... 2.4 V
0 V ... 3 V |
Max. voltage input signal | approx. 3 V DC | Input resistance of voltage input | approx. 10 kΩ |
Number of outputs | 1 | Configurable/programmable | Yes, preconfigured |
Voltage output signal | 0 V ... 10 V
2 V ... 10 V
0 V ... 5 V
1 V ... 5 V
-10 V ... 10 V (The bi-polar output can be used only for bi-polar input signals.)
-5 V ... 5 V (The bi-polar output can be used only for bi-polar input signals.) | Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA |
Load/output load voltage output | ≥ 10 kΩ | Load/output load current output | < 500 Ω (at 20 mA) |
Ripple | < 20 mV
< 20 mV | Connection method | Spring-cage connection |
Connection technology | 2-conductor | Stripping length | 8 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Width | 6.2 mm |
Height | 93.1 mm | Depth | 102.5 mm |
Color | green (RAL 6021) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T4 | Certificate | DNV GL TAA000020N |
Temperature | B | Humidity | B |
Vibration | B | EMC | A |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 6 % |
Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
Typical deviation from the measuring range final value | 6 % | Standards/regulations | EN 61000-4-5 |
Comments | Criterion B | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 6 % |
Electrical isolation | Basic insulation in accordance with EN 61010 | Mounting type | DIN rail mounting |
Assembly note | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. | Mounting position | any |
Specifications may be subject to change without notice
