Product Model

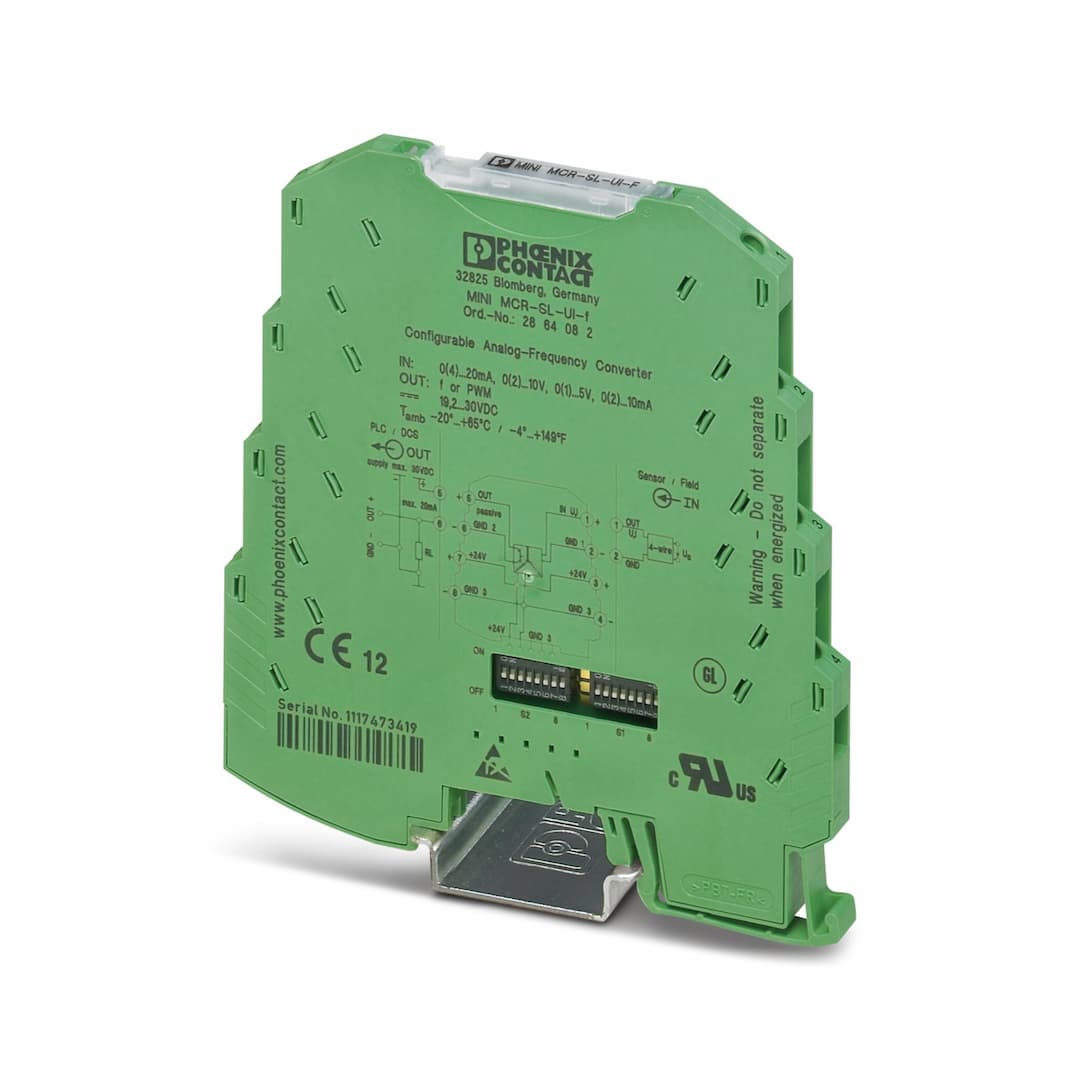

MINI MCR-SL-UI-F
Selling Points
- 16.2 mm wide and 93.1 mm high, perfect for space-constrained applications.
- 2Programmable via DIP switches for customizable signal processing.
- 3Transmission error ≤ 0.1%, ensuring precise frequency conversion.
- 4Frequency output from 0 Hz to 10 kHz, with PWM output options.
- 5Short-circuit and polarity reversal protection for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Frequency value transformer |
Product family | MINI Analog | No. of channels | 1 |
Configuration | DIP switches | Article revision | 14 |
Overvoltage category | II | Pollution degree | 2 |
Configuration | DIP switches | Electrical isolation between input and output | yes |
Step response (0–99%) | < 15 ms (+ (1/f) smallest filter)
< 1 s (+ (1/f) largest filter) | Maximum temperature coefficient | < 0.02 %/K |
Temperature coefficient, typical | < 0.02 %/K | Maximum transmission error | ≤ 0.1 % (> 7 kHz ≤ 0.2 %) |
Rated insulation voltage | 30 V AC
50 V DC | Test voltage | 1.5 kV AC (50 Hz, 60 s) |
Insulation | Basic insulation in accordance with IEC/EN 61010 | Nominal supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) | Max. current consumption | < 10 mA (at 24 V DC) |
Power consumption | < 200 mW | Number of inputs | 1 |
Configurable/programmable | Yes | Voltage input signal | 0 V ... 5 V
1 V ... 5 V
0 V ... 10 V
2 V ... 10 V |
Max. voltage input signal | 30 V DC | Current input signal | 0 mA ... 20 mA
4 mA ... 20 mA
0 mA ... 10 mA
2 mA ... 10 mA |
Max. current input signal | 100 mA | Input resistance of voltage input | approx. 110 kΩ |
Input resistance current input | approx. 50 Ω | Behavior in the event of an error | Alarm in the form of a red LED |
Frequency output | 0 Hz ... 10 kHz
0 Hz ... 5 kHz
0 Hz ... 2.5 kHz
0 Hz ... 1 kHz
0 Hz ... 500 Hz
0 Hz ... 250 Hz
0 Hz ... 100 Hz
0 Hz ... 50 Hz | Load min. | 4 mA ≤ (U |
Output signal PWM | 7.8 kHz (10 bit)
3.9 kHz (10 bit)
1.9 kHz (12 bit)
977 Hz (12 bit)
488 Hz (14 bit)
244 Hz (14 bit)
122 Hz (16 bit)
61 Hz (16 bit) | Load min. | 12 mA ≤ (U |
Load current maximum | 20 mA | Maximum switching voltage | 30 V |
Overrange/underrange | can be set (via DIP switch) | Protective circuit | Short-circuit protection, polarity reversal protection |
Number of outputs | 1 | Connection method | Screw connection |
Stripping length | 12 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 26 ... 12 | Width | 6.2 mm |
Height | 93.1 mm | Depth | 101.2 mm |
Color | green (RAL 6021) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 65 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Altitude | ≤ 2000 m | Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
Certificate | CE-compliant | Certificate | UKCA-compliant |
Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T4 | Certificate | DNV GL TAA000020N |
Temperature | B | Humidity | B |
Vibration | B | EMC | A |
Enclosure | Required protection according to the Rules shall be provided upon installation on board | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 2 % |
Designation | Fast transients (burst) | Standards/regulations | EN 61000-4-4 |
Typical deviation from the measuring range final value | 2 % | Standards/regulations | EN 61000-4-5 |
Comments | Criterion B | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 2 % |
Mounting type | DIN rail mounting | Mounting position | any |
