Product Model

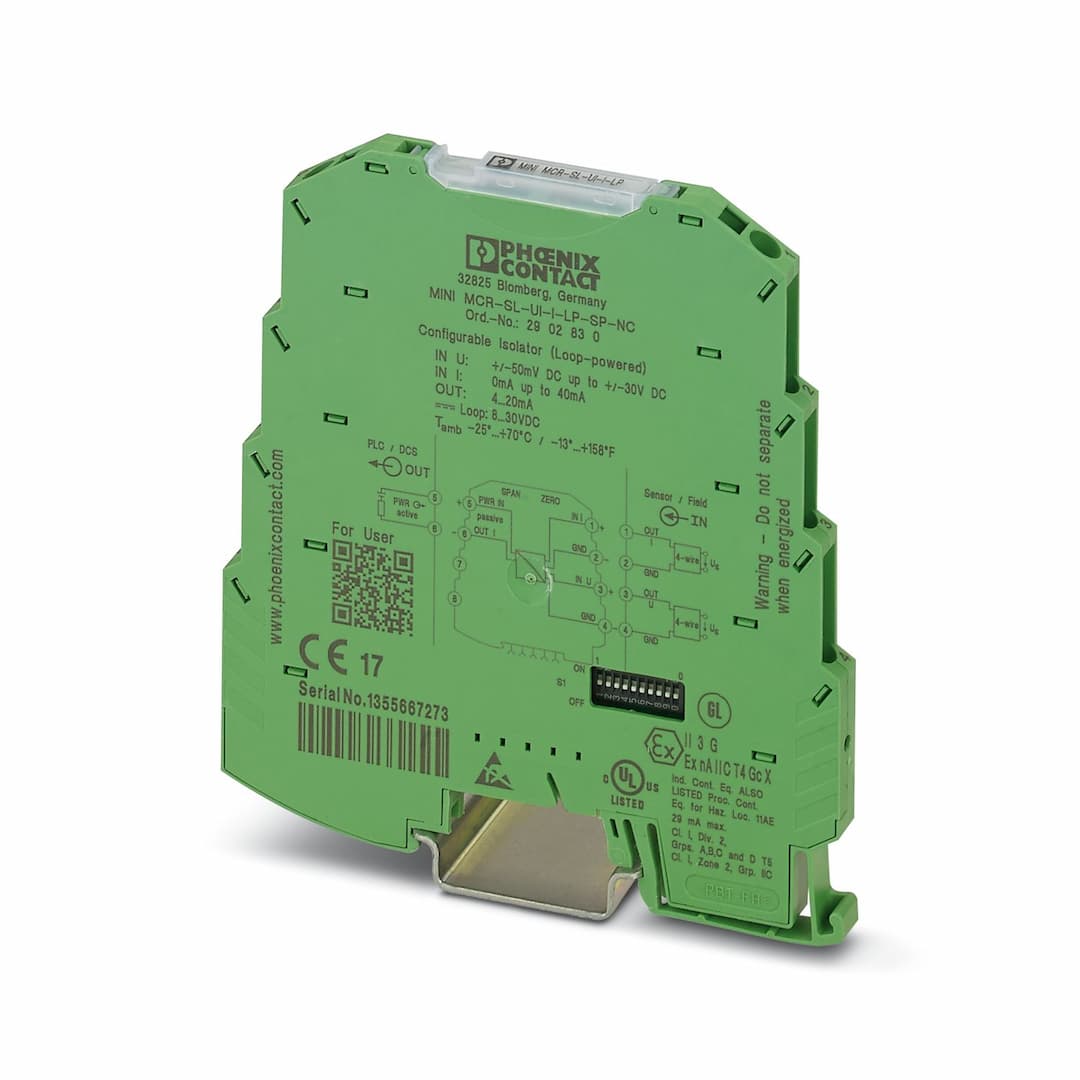

MINI MCR-SL-UI-I-LP-SP-NC
Selling Points
- 1Configurable via DIP switches for versatile signal range settings.
- 2Basic insulation according to EN 61010 for reliable electrical isolation.
- 3Wide input range from 0 mV to 1000 mV and 0 V to 30 V for diverse signal handling.
- 4Low ripple of <20 mVPP at 500 Ω for clean output signals.
- 5Compact design with dimensions 6.2 mm x 93.1 mm x 102.5 mm for space-efficient installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Signal conditioner | Product family | MINI Analog |
No. of channels | 1 | Article revision | 07 |
Overvoltage category | II | Pollution degree | 2 |
Alignment span | ± 2 % | Alignment zero | ± 2 % |
Rated insulation voltage | 50 V AC/DC | Electrical isolation | Basic insulation in accordance with EN 61010 |
Electrical isolation between input and output | yes | Limit frequency (3 dB) | approx. 30 Hz |
Test voltage input/output | 1.5 kV AC (50 Hz, 60 s) | Step response (10-90%) | approx. 16 ms |
Maximum temperature coefficient | 0.01 %/K | Temperature coefficient, typical | 0.005 %/K |
Maximum transmission error | < 0.1 % (of final value)
< 0.2 % (Without adjustment) | Supply voltage range | loop-powered, no external supply necessary |
Power consumption | 28 mW (without signal) | Number of inputs | 1 |
Voltage input signal | 0 mV ... 1000 mV
0 mV ... 750 mV
0 mV ... 500 mV
0 mV ... 300 mV
0 mV ... 250 mV
0 mV ... 200 mV
0 mV ... 150 mV
0 mV ... 125 mV
0 mV ... 120 mV
0 mV ... 100 mV
0 mV ... 75 mV
0 mV ... 60 mV
0 mV ... 50 mV
0 V ... 10 V
0 V ... 7.5 V
0 V ... 5 V
0 V ... 3 V
0 V ... 2.5 V
0 V ... 2 V
0 V ... 1.5 V
0 V ... 1.25 V
0 V ... 1.2 V
0 V ... 30 V
0 V ... 25 V
0 V ... 20 V
0 V ... 12.5 V
0 V ... 12 V
0 V ... 15 V
-1000 mV ... 1000 mV
-750 mV ... 750 mV
-500 mV ... 500 mV
-300 mV ... 300 mV
-250 mV ... 250 mV
-200 mV ... 200 mV
-125 mV ... 125 mV
-120 mV ... 120 mV
-150 mV ... 150 mV
-100 mV ... 100 mV
-75 mV ... 75 mV
-60 mV ... 60 mV
-50 mV ... 50 mV
-10 V ... 10 V
-7.5 V ... 7.5 V
-5 V ... 5 V
-3 V ... 3 V
-2.5 V ... 2.5 V
-2 V ... 2 V
-1.25 V ... 1.25 V
-1.2 V ... 1.2 V
-1.5 V ... 1.5 V
-30 V ... 30 V
-25 V ... 25 V
-20 V ... 20 V
-12.5 V ... 12.5 V
-12 V ... 12 V
-15 V ... 15 V
200 mV ... 1000 mV
150 mV ... 750 mV
100 mV ... 500 mV
60 mV ... 300 mV
50 mV ... 250 mV
40 mV ... 200 mV
25 mV ... 125 mV
24 mV ... 120 mV
30 mV ... 150 mV
20 mV ... 100 mV
15 mV ... 75 mV
12 mV ... 60 mV
10 mV ... 50 mV
2 V ... 10 V
1.5 V ... 7.5 V
1 V ... 5 V
0.6 V ... 3 V
0.5 V ... 2.5 V
0.4 V ... 2 V
0.25 V ... 1.25 V
0.24 V ... 1.2 V
0.3 V ... 1.5 V
6 V ... 30 V
5 V ... 25 V
4 V ... 20 V
2.5 V ... 12.5 V
2.4 V ... 12 V
3 V ... 15 V | Max. voltage input signal | < 40 V |
Current input signal | 0 mA ... 40 mA
0 mA ... 30 mA
0 mA ... 20 mA
0 mA ... 12 mA
0 mA ... 10 mA
0 mA ... 8 mA
0 mA ... 7.5 mA
0 mA ... 5 mA
0 mA ... 6 mA
0 mA ... 4 mA
0 mA ... 3 mA
0 mA ... 2.5 mA
0 mA ... 2 mA
-40 mA ... 40 mA
-30 mA ... 30 mA
-20 mA ... 20 mA
-12 mA ... 12 mA
-10 mA ... 10 mA
-8 mA ... 8 mA
-7.5 mA ... 7.5 mA
-5 mA ... 5 mA
-6 mA ... 6 mA
-4 mA ... 4 mA
-3 mA ... 3 mA
-2.5 mA ... 2.5 mA
-2 mA ... 2 mA
8 mA ... 40 mA
6 mA ... 30 mA
4 mA ... 20 mA
2.4 mA ... 12 mA
2 mA ... 10 mA
1.6 mA ... 8 mA
1.5 mA ... 7.5 mA
1 mA ... 5 mA
1.2 mA ... 6 mA
0.8 mA ... 4 mA
0.6 mA ... 3 mA
0.5 mA ... 2.5 mA
0.4 mA ... 2 mA | Max. current input signal | < 50 mA (Dielectric strength up to 30 V) |
Input resistance of voltage input | approx. 100 kΩ (At ≤ 1 V, otherwise approximately 1 MΩ) | Input resistance current input | ≤ 50 Ω |
Number of outputs | 1 | Configurable/programmable | Yes, preconfigured |
Current output signal | 4 mA ... 20 mA | Max. current output signal | 35 mA (output limit) |
Load/output load current output | < 1000 Ω ((U | Ripple | < 20 mV |
Connection method | Spring-cage connection | Stripping length | 8 mm |
Conductor cross section rigid | 0.2 mm² ... 2.5 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Width | 6.2 mm |
Height | 93.1 mm | Depth | 102.5 mm |
Color | green (RAL 6021) | Housing material | PBT |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Certificate | CE-compliant | Identification | II 3 G Ex nA IIC T4 Gc X |
Identification | UL 508 Listed
Class I, Div. 2, Groups A, B, C, D T5
Class I, Zone 2, Group IIC | Identification | D, EMC1 |
Certificate | DNV GL 14085-15HH | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Standards/regulations | EN 61000-4-2 |
Comments | Safety measures must be taken to prevent electrostatic discharge. | Designation | Electromagnetic RF field |
Standards/regulations | EN 61000-4-3 | Typical deviation from the measuring range final value | 0.5 % |
Comments | Criterion A | Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 | Typical deviation from the measuring range final value | 2 % |
Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
Comments | Criterion B | Designation | Conducted interferences |
Standards/regulations | EN 61000-4-6 | Typical deviation from the measuring range final value | 0.5 % |
Comments | Criterion A | Electrical isolation | Basic insulation in accordance with EN 61010 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
