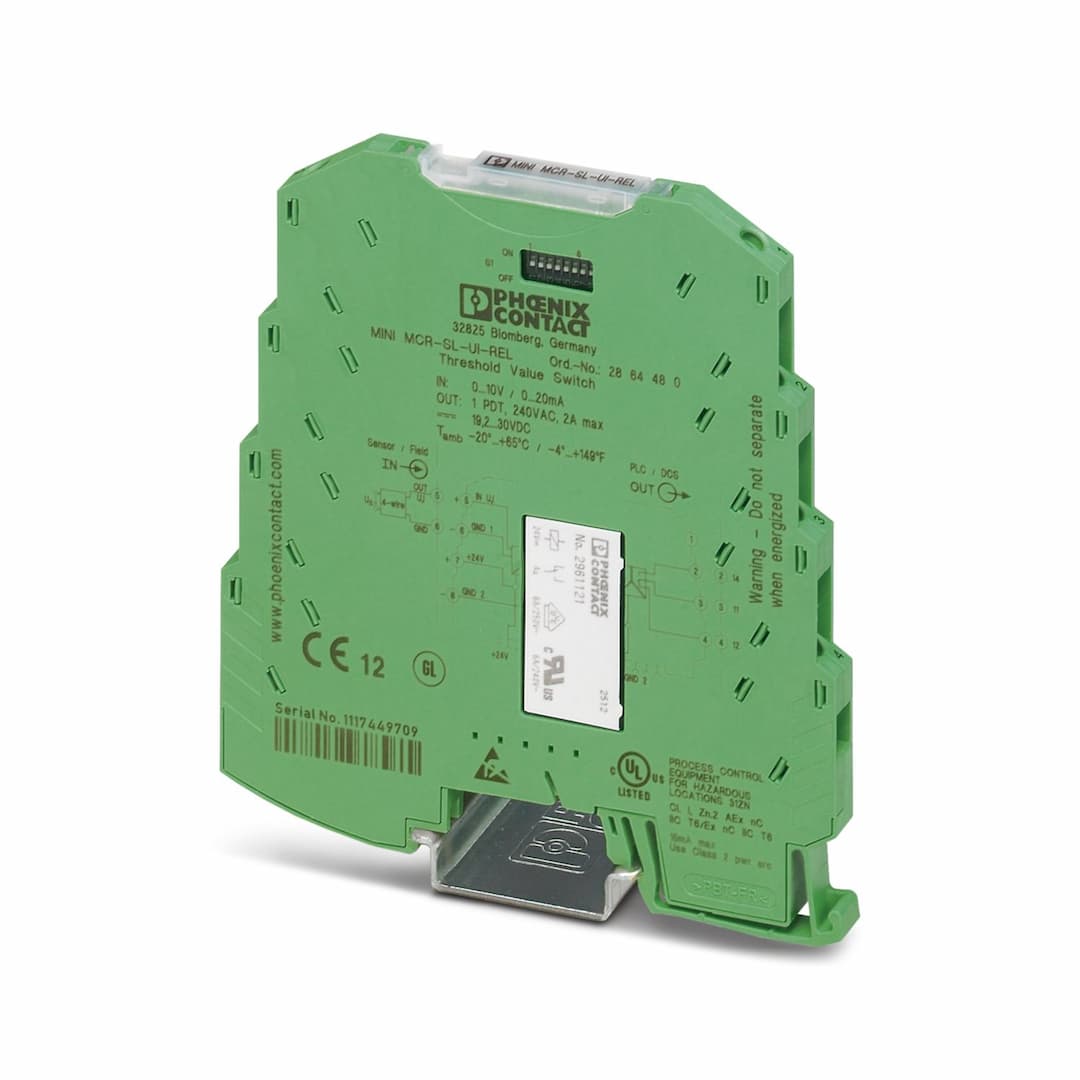

Phoenix Contact MINI MCR-SL-UI-REL

Selling Points

  • 1Highly-compact design at 6.2 mm wide.
  • 2Configurable via DIP switches for input signal, hysteresis, and delay time.
  • 3Adjustable limit value via potentiometer on the front.
  • 43-way isolation for electrical safety.
  • 5Status and error indication via two diagnostic LEDs.
Product Details
MINI MCR-SL-UI-REL
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
EMC note
EMC: class A product, see manufacturer's declaration in the download area
Product type
Limit value switch
Product family
MINI Analog
No. of channels
1
Configuration
DIP switches
Article revision
12
Overvoltage category
II
Pollution degree
2
Configuration
DIP switches
Electrical isolation
3-way isolation
Electrical isolation between input and output
yes
Maximum power dissipation for nominal condition
< 405 mW
Switching point accuracy
< 0.05 %
Step response (0–99%)
< 35 ms
Maximum temperature coefficient
< 0.02 %/K
Rated insulation voltage
50 V AC/DC
Test voltage
1.5 kV AC (50 Hz, 60 s)
Insulation
Basic insulation in accordance with IEC/EN 61010
Nominal supply voltage
24 V DC ±15 %
Supply voltage range
19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Max. current consumption
< 14 mA (at 24 V DC)
Power consumption
< 330 mW (at 24 V DC)
Number of inputs
1
Voltage input signal
0 V ... 10 V
Max. voltage input signal
30 V
Current input signal
0 mA ... 20 mA
Max. current input signal
100 mA
Input resistance of voltage input
> 100 kΩ
Input resistance current input
50 Ω
Specification of the switching point
With 25-speed potentiometer
Contact switching type
1 changeover contact
Contact material
AgSnO
Maximum switching voltage
250 V AC 240 V AC (UL)
Limiting continuous current
2 A
Setting range of the response delay
0 s ... 10 s (0 s, 1 s, 2 s, 3 s, 4 s, 6 s  8 s, 10 s)
Internal hysteresis
0.1 %, 1 %, 2.5 %, 5 %
Number of outputs
1
Connection method
Screw connection
Stripping length
12 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
26 ... 12
Width
6.2 mm
Height
93.1 mm
Depth
101.2 mm
Color
green (RAL 6021)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Altitude
≤ 2000 m
Permissible humidity (operation)
5 % ... 95 % (non-condensing)
Certificate
CE-compliant
Certificate
UKCA-compliant
Identification
Class I, Zone 2, AEx nA nC IIC T5
Identification
UL 508 Recognized
Identification
Class I, Zone 2, Ex nA nC IIC T5 Gc
Certificate
DNV GL TAA00002R0
Temperature
B
Humidity
B
Vibration
B
EMC
A
Enclosure
Required protection according to the Rules shall be provided upon installation on board
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Comments
Safety measures must be taken to prevent electrostatic discharge.
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Typical deviation from the measuring range final value
5 %
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Typical deviation from the measuring range final value
5 %
Standards/regulations
EN 61000-4-5
Comments
Criterion B
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Typical deviation from the measuring range final value
5 %
Electrical isolation
3-way isolation
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any

Specifications may be subject to change without notice
