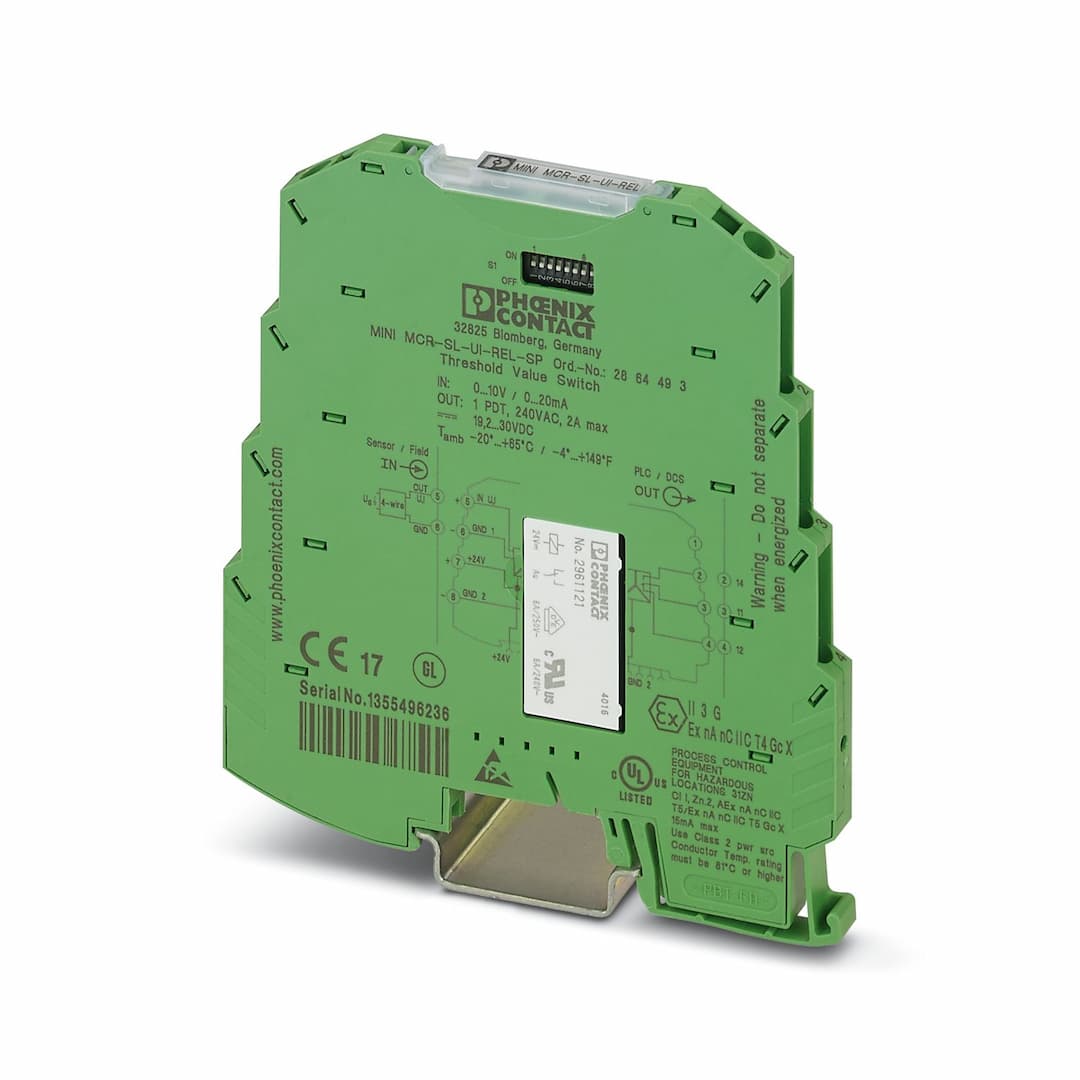

MINI MCR-SL-UI-REL-SP
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Limit value switch
Product family
MINI Analog
No. of channels
1
Article revision
10
Overvoltage category
II
Pollution degree
2
Rated insulation voltage
50 V AC/DC
Electrical isolation
Basic insulation in accordance with EN 61010
Electrical isolation between input and output
yes
Test voltage input/power supply
1.5 kV AC (50 Hz, 60 s)
Switching point accuracy
< 0.05 %
Step response (0–99%)
< 35 ms
Maximum temperature coefficient
< 0.02 %/K
Nominal supply voltage
24 V DC
Supply voltage range
19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Max. current consumption
< 14 mA (at 24 V DC)
Power consumption
< 330 mW (at 24 V DC)
Number of inputs
1
Voltage input signal
0 V ... 10 V
Max. voltage input signal
30 V
Current input signal
0 mA ... 20 mA
Max. current input signal
100 mA
Input resistance of voltage input
> 100 kΩ
Input resistance current input
50 Ω
Specification of the switching point
With 25-speed potentiometer
Contact switching type
1 changeover contact
Contact material
AgSnO
Maximum switching voltage
250 V AC 240 V AC (UL)
Limiting continuous current
2 A
Setting range of the response delay
0 s ... 10 s (0 s, 1 s, 2 s, 3 s, 4 s, 6 s  8 s, 10 s)
Internal hysteresis
0.1 %, 1 %, 2.5 %, 5 %
Number of outputs
1
Connection method
Spring-cage connection
Stripping length
8 mm
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Width
6.2 mm
Height
93.1 mm
Depth
102.5 mm
Color
green (RAL 6021)
Housing material
PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 2
Degree of protection
IP20
Ambient temperature (operation)
-20 °C ... 65 °C
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Certificate
CE-compliant
Identification
 II 3 G Ex nA nC IIC T4 Gc X
Identification
Class I, Zone 2, AEx nA nC IIC T5
Identification
UL 508 Recognized
Identification
Class I, Zone 2, Ex nA nC IIC T5 Gc
Identification
GL EMC 2 D
Electromagnetic compatibility
Conformance with EMC directive
Noise immunity
EN 61000-6-2
Note
When being exposed to interference, there may be minimal deviations.
Noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Comments
Safety measures must be taken to prevent electrostatic discharge.
Designation
Electromagnetic RF field
Standards/regulations
EN 61000-4-3
Typical deviation from the measuring range final value
5 %
Designation
Fast transients (burst)
Standards/regulations
EN 61000-4-4
Typical deviation from the measuring range final value
5 %
Standards/regulations
EN 61000-4-5
Comments
Criterion B
Designation
Conducted interferences
Standards/regulations
EN 61000-4-6
Typical deviation from the measuring range final value
5 %
Electrical isolation
Basic insulation in accordance with EN 61010
Mounting type
DIN rail mounting
Assembly note
The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position
any
