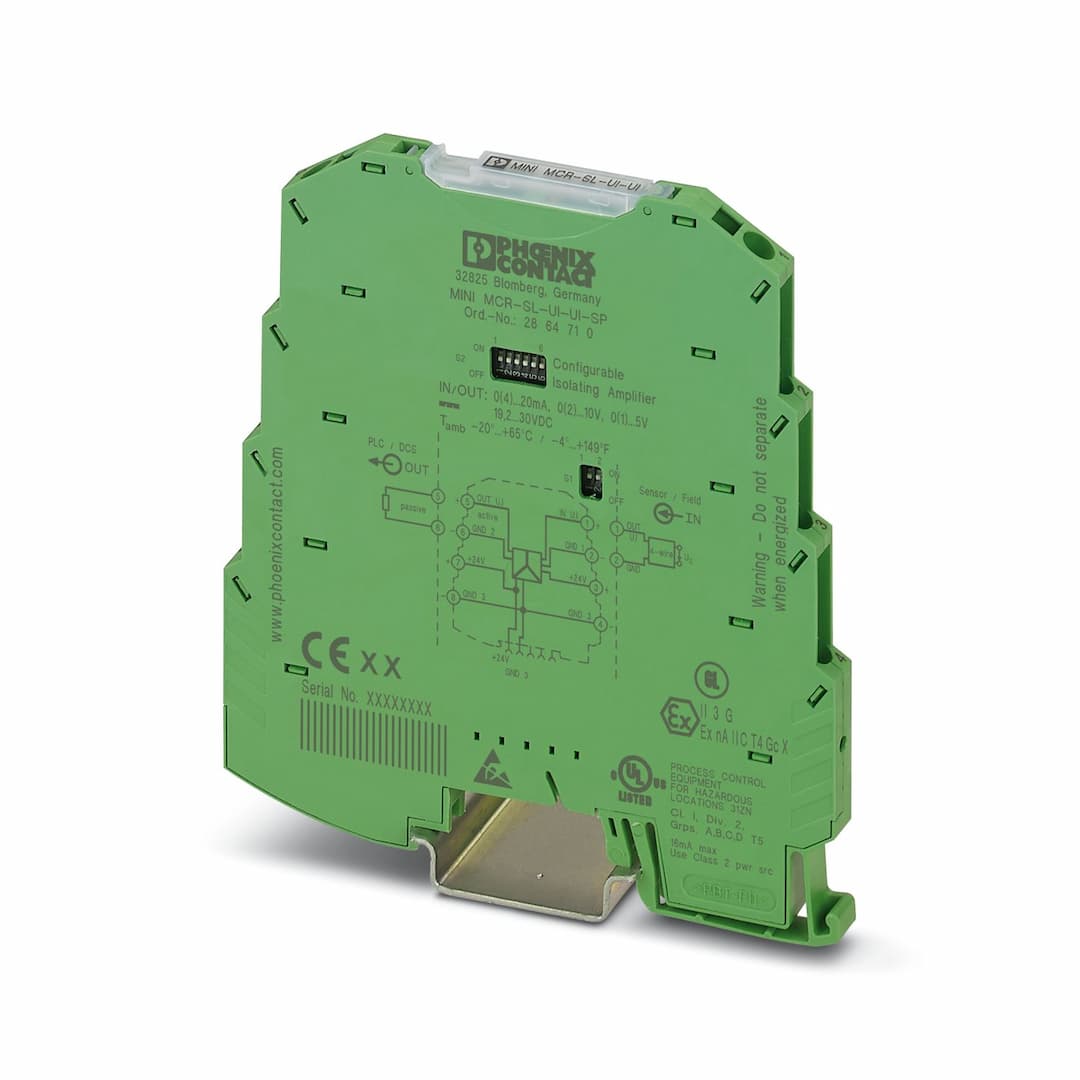

MINI MCR-SL-UI-UI-SP | Phoenix Contact

Selling Points

No selling points available for this product.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Signal conditioner	Product family	MINI Analog
No. of channels	1	Article revision	11
Overvoltage category	II	Pollution degree	2
Rated insulation voltage	50 V AC/DC	Electrical isolation	Basic insulation in accordance with EN 61010
Electrical isolation between input and output	yes	Limit frequency (3 dB)	approx. 100 Hz
Test voltage, input/output/supply	1.5 kV AC (50 Hz, 60 s)	Protective circuit	Transient protection
Step response (10-90%)	approx. 3.2 ms	Maximum temperature coefficient	< 0.01 %/K
Temperature coefficient, typical	< 0.002 %/K	Maximum transmission error	≤ 0.1 % (of final value)
Nominal supply voltage	24 V DC	Supply voltage range	19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Max. current consumption	< 19 mA (Current output, at 24 V DC incl. load) < 9 mA (Voltage output, at 24 V DC incl. load)	Power consumption	< 450 mW (Current output) < 200 mW (Voltage output)
Number of inputs	1	Configurable/programmable	Yes, preconfigured
Voltage input signal	0 V ... 10 V 0 V ... 5 V 1 V ... 5 V 2 V ... 10 V	Max. voltage input signal	30 V
Current input signal	0 mA ... 20 mA 4 mA ... 20 mA	Max. current input signal	50 mA
Input resistance of voltage input	approx. 100 kΩ	Input resistance current input	approx. 50 Ω
Number of outputs	1	Configurable/programmable	Yes, preconfigured
Voltage output signal	0 V ... 10 V 0 V ... 5 V 1 V ... 5 V 2 V ... 10 V	Max. voltage output signal	approx. 12.5 V
Non-load voltage	approx. 12.5 V	Current output signal	0 mA ... 20 mA (please indicate if different setting when ordering) 4 mA ... 20 mA
Max. current output signal	28 mA	Short-circuit current	approx. 22 mA
Load/output load voltage output	≥ 10 kΩ	Load/output load current output	< 500 Ω (at 20 mA)
Ripple	< 20 mV < 20 mV	Connection method	Spring-cage connection
Stripping length	8 mm	Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²	Conductor cross section AWG	24 ... 12
Width	6.2 mm	Height	93.1 mm
Depth	102.5 mm	Color	green (RAL 6021)
Housing material	PBT	Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2	Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2
Degree of protection	IP20	Ambient temperature (operation)	-20 °C ... 65 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C	Certificate	CE-compliant
Identification	 II 3 G Ex nA IIC T4 Gc X	Identification	UL 508 Recognized Class I, Div. 2, Groups A, B, C, D T5
Identification	GL EMC 2 D	Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2	Note	When being exposed to interference, there may be minimal deviations.
Noise emission	EN 61000-6-4	Standards/regulations	EN 61000-4-2
Comments	Safety measures must be taken to prevent electrostatic discharge.	Designation	Electromagnetic RF field
Standards/regulations	EN 61000-4-3	Typical deviation from the measuring range final value	5 %
Designation	Fast transients (burst)	Standards/regulations	EN 61000-4-4
Typical deviation from the measuring range final value	5 %	Standards/regulations	EN 61000-4-5
Comments	Criterion B	Designation	Conducted interferences
Standards/regulations	EN 61000-4-6	Typical deviation from the measuring range final value	5 %
Electrical isolation	Basic insulation in accordance with EN 61010	Mounting type	DIN rail mounting
Assembly note	The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.	Mounting position	any

Specifications may be subject to change without notice
