Product Model

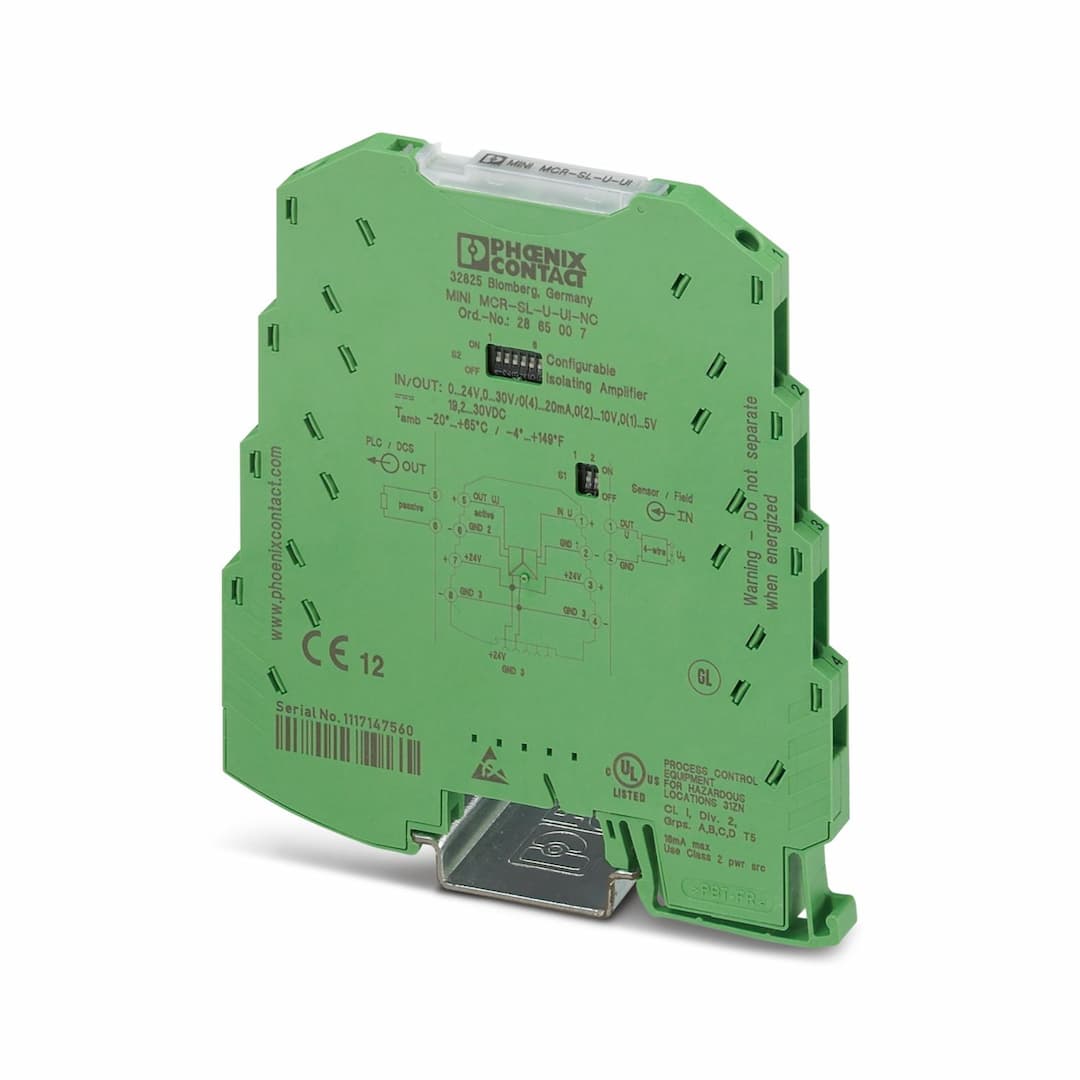

MINI MCR-SL-U-UI-NC
Selling Points
- 1Basic insulation in accordance with EN 61010 ensures safe signal processing.
- 2DIP switches allow up to 36 signal combinations, making it versatile for various applications.
- 3Highly-compact isolating amplifier for easy integration into systems.
- 4Designed for energy efficiency, ideal for battery-powered devices or low-power systems.
- 5Converts, amplifies, and filters standard analog signals up to 30 V with screw connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Signal conditioner |
Product family | MINI Analog | No. of channels | 1 |
Configuration | DIP switches | Article revision | 10 |
Overvoltage category | II | Pollution degree | 2 |
Electrical isolation | Basic insulation in accordance with EN 61010 | Electrical isolation between input and output | yes |
Limit frequency (3 dB) | approx. 100 Hz | Protective circuit | Transient protection |
Step response (10-90%) | approx. 3.5 ms | Maximum temperature coefficient | < 0.01 %/K |
Temperature coefficient, typical | < 0.002 %/K | Maximum transmission error | < 0.1 % (of final value)
< 0.4 % (Without adjustment) |
Rated insulation voltage | 50 V AC/DC | Test voltage | 1.5 kV AC (50 Hz, 60 s) |
Nominal supply voltage | 24 V DC | Supply voltage range | 19.2 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
Max. current consumption | < 19 mA (at 24 V DC incl. load) | Power consumption | < 450 mW |
Number of inputs | 1 | Configurable/programmable | Yes, unconfigured |
Voltage input signal | 0 V ... 24 V
0 V ... 30 V | Max. voltage input signal | 50 V DC |
Input resistance of voltage input | approx. 125 kΩ (0 ... 24 V)
approx. 155 kΩ (0 V ... 30 V) | Number of outputs | 1 |
Configurable/programmable | Yes, unconfigured | Voltage output signal | 0 V ... 10 V
0 V ... 5 V
1 V ... 5 V
2 V ... 10 V |
Max. voltage output signal | ≤ 12.5 V | Non-load voltage | ≤ 12.5 V |
Current output signal | 0 mA ... 20 mA
4 mA ... 20 mA | Max. current output signal | 28 mA |
Short-circuit current | ≤ 22 mA | Load/output load voltage output | > 10 kΩ |
Load/output load current output | < 500 Ω (at 20 mA) | Ripple | < 20 mV
< 20 mV |
Connection method | Screw connection | Stripping length | 12 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 26 ... 12 |
Width | 6.2 mm | Height | 93.1 mm |
Depth | 101.2 mm | Color | green (RAL 6021) |
Housing material | PBT | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 2 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 2 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 65 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Altitude | ≤ 2000 m |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Certificate | UKCA-compliant | Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T5 |
Certificate | DNV GL TAA000020N | Temperature | B |
Humidity | B | Vibration | B |
EMC | A | Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Electromagnetic compatibility | Conformance with EMC directive | Noise immunity | EN 61000-6-2 |
Note | When being exposed to interference, there may be minimal deviations. | Noise emission | EN 61000-6-4 |
Standards/regulations | EN 61000-4-2 | Comments | Safety measures must be taken to prevent electrostatic discharge. |
Designation | Electromagnetic RF field | Standards/regulations | EN 61000-4-3 |
Typical deviation from the measuring range final value | 5 % | Designation | Fast transients (burst) |
Standards/regulations | EN 61000-4-4 | Typical deviation from the measuring range final value | 5 % |
Standards/regulations | EN 61000-4-5 | Comments | Criterion B |
Designation | Conducted interferences | Standards/regulations | EN 61000-4-6 |
Typical deviation from the measuring range final value | 5 % | Electrical isolation | Basic insulation in accordance with EN 61010 |
Mounting type | DIN rail mounting | Assembly note | The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715. |
Mounting position | any |
