Product Model

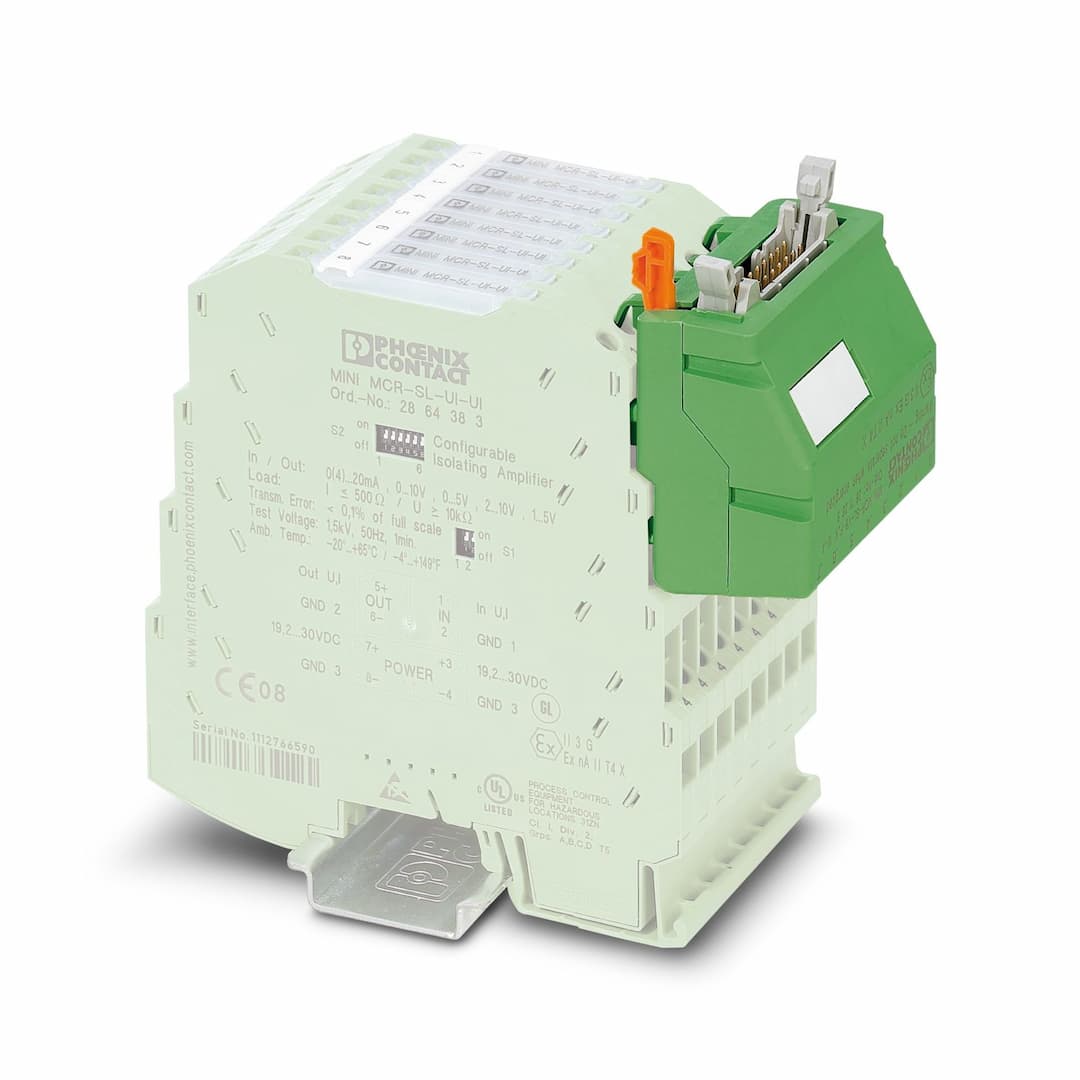

MINI MCR-SL-V8-FLK 16-A
Selling Points
- 1Plug-and-Play Connectivity: Easily snap onto MINI Analog modules with screw connection technology.
- 2Reduced Wiring Effort: Time-saving wiring solution thanks to its unique plug-in concept.
- 3Low Error Risk: Minimal cabling effort and very low error risk in system cabling.
- 4Versatile Compatibility: Compatible with various control systems and modules.
- 5Compliance and Safety: CE-compliant, ATEX certified, and meets IEC 60664 standards for safety and electromagnetic compatibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 16 |
No. of channels | 8 | Labeling option | Zack marker strip SS-ZB |
Article revision | 06 | Overvoltage category | II |
Pollution degree | 2 | Current carrying capacity | ≤ 1 A (per channel) |
Contact resistance | < 10 mΩ | Rated insulation voltage | 30 V AC
50 V DC |
Connection in acc. with standard | IEC 60603-13 | Connection method | IDC/FLK pin strip |
Number of connections | 1 | Number of positions | 16 |
Insertion/withdrawal cycles | ≥ 200 | Pitch | 2.54 mm |
Connection method | Spring contact | Number of positions | 16 |
Insertion/withdrawal cycles | 10 | Status display | no |
Status display present | No | Width | 50.4 mm |
Height | 46.2 mm | Depth | 45.5 mm |
Color | green (RAL 6021) | Flammability rating according to UL 94 | V0 |
Housing insulation material | PBT | Ambient temperature (operation) | -20 °C ... 60 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Permissible humidity (operation) | 5 % ... 95 % (non-condensing) | Certificate | CE-compliant |
Identification | II 3 G Ex nA IIC T4 Gc X | Identification | UL 508 Recognized
Class I, Div. 2, Groups A, B, C, D T4 |
Identification | GL EMC 2 D | Electromagnetic compatibility | Conformance with EMC directive |
Noise immunity | EN 61000-6-2 | Note | When being exposed to interference, there may be minimal deviations. |
Noise emission | EN 61000-6-4 | Vibration resistance | ≤ 0,7g |
Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Specifications may be subject to change without notice
