Product Model

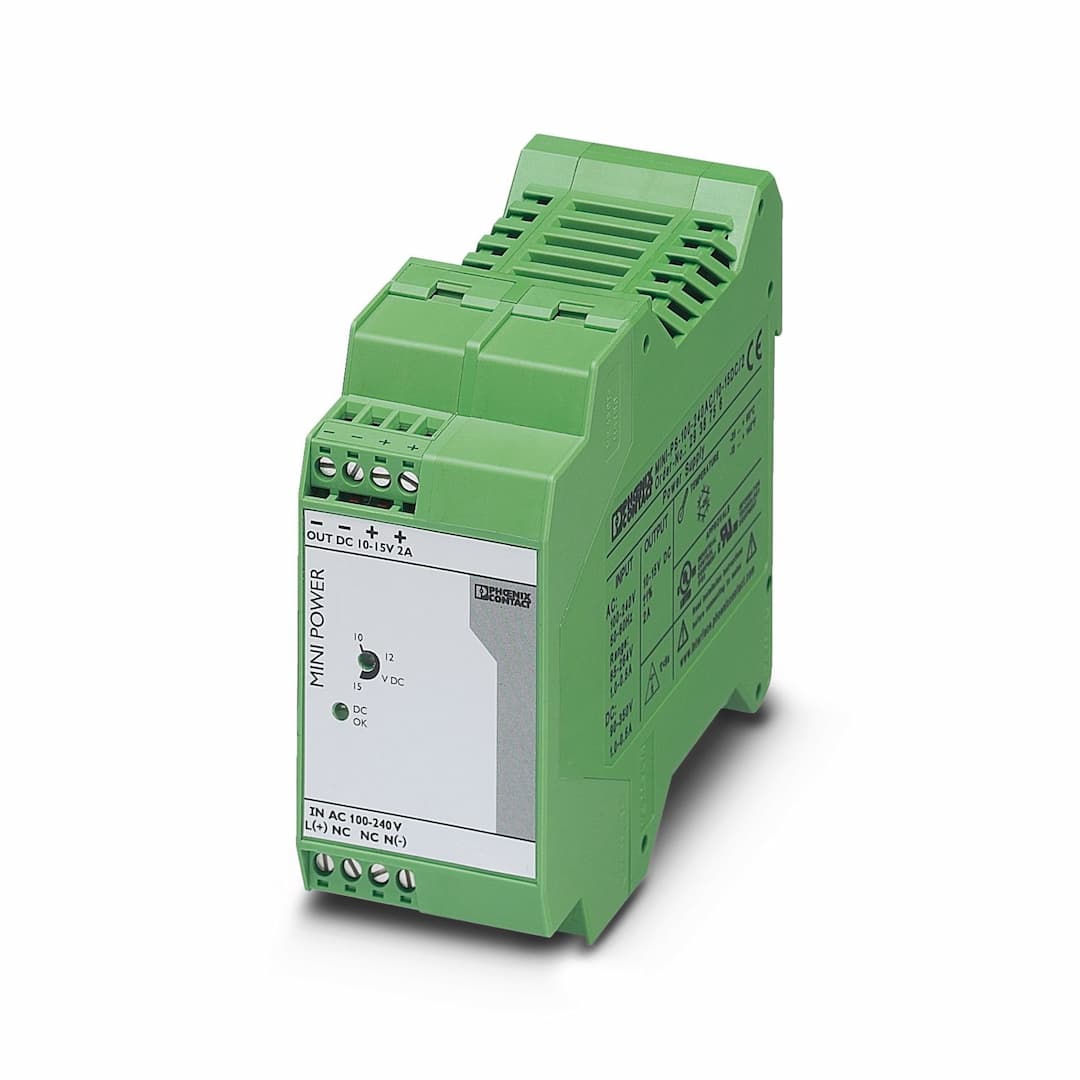

MINI-PS-100-240AC/10-15DC/2
Selling Points
- 1Compact and lightweight design for easy installation.
- 2Reliable 10-15V DC output with high efficiency.
- 3Versatile applications in industrial and commercial settings.
- 4Durable metal housing with IP20 protection.
- 5Wide input voltage range of 100-240V AC.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (typical) |
Inrush current integral (I | 1.7 A | AC frequency range | 45 Hz ... 65 Hz |
Mains buffering time | > 20 ms (120 V AC)
> 120 ms (230 V AC) | Current consumption | 0.4 A (120 V AC)
0.2 A (230 V AC)
0.4 A (90 V DC)
0.1 A (350 V DC) |
Nominal power consumption | 44 VA | Typical response time | < 1 s |
Input fuse | 2 A (slow-blow, internal) | Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) |
Efficiency | > 86 % (for 230 V AC and nominal values) | Nominal output voltage | 12 V DC ±1 %
10 V DC ±1 %
15 V DC ±1 % |
Setting range of the output voltage (U | 10 V DC ... 15 V DC (> 12 V DC, constant capacity restricted) | Nominal output current (I | 2 A (-25 °C ... 60 °C) |
POWER BOOST (I | 2.3 A (-25 °C ... 40 °C permanent) | Derating | 60 °C ... 70 °C (2.5 %/K) |
Residual ripple | < 20 mV | Output power | 30 W |
Peak switching voltages nominal load | < 100 mV | Maximum no-load power dissipation | < 1 W |
Power loss nominal load max. | < 7 W | Connection in parallel | yes, for assembling redundant systems and increasing efficiency |
Connection in series | yes | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Screw thread | M3 |
Types of signaling | LED | Operating voltage display | Green LED |
Status display | "DC OK" LED green | Insulation voltage input/output | 4 kV (type test)
3 kV (routine test) |
Product type | Power supply | Product family | MINI POWER |
MTBF (IEC 61709, SN 29500) | > 507000 h (40 °C) | Article revision | 07 |
Protection class | II (in closed control cabinet) | Width | 45 mm |
Height | 99 mm | Depth | 107 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
Type of housing | Polyamide PA, color: green | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Temp code | T4A ≤ 60 °C |
Rail applications | EN 50121-4 | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) |
Standard – Safety extra-low voltage | EN 60950-1 (SELV)
EN 60204 (PELV) | Standard - Safe isolation | DIN VDE 0100-410 |
UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) | SIL in accordance with IEC 61508 | 0 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise immunity | EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Specifications may be subject to change without notice
